A. Mobile Home Installation
Mobile home approval - U.S. only.
DO NOT INSTALL IN A MOBILE HOME IN CANADA.
1. An outside air inlet must be provided for combustion
air, and must remain clear of leaves, debris, ice, and/or
snow. The outside air path must be unrestricted while
the appliance is in operation. Use Kit #1-10-856082 to
attach to unit.
2. The combustion air intake system must be of metal
construction. It must permit zero-clearance to
combustible materials, and contain a rodent screen.
3. The appliance must be secured to the mobile home
structure by bolting it to the oor. There are holes
provided in the pedestal base. Secure with the proper
length lag bolts, through the hearth pad and into the
homeoor.
4. The appliance must be grounded to the metal framing
of the mobile home
5. All clearances to combustibles and oor protection
requirements must be followed.
6. Follow the vent manufacturer's instructions when
installing in a mobile home. Must be connected to a
UL103 HT ventilated chimney connector, UL103 HT
chimney, and terminal cap with spark arrestor.
7. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the exterior.
8. Installation shall be in accordance with the Manufactured
Home and Safety Standard (HUD) CFR 3280, Part 24
9. The appliance must never be installed in a room
designated for sleeping.
10. Burn wood only. Other fuels may generate poisonous
gases (carbon monoxide).
11. If unit burns poorly while an exhaust blower (range
hood) is operating, increase the supply of combustion
air to the appliance
Note: The top sections of the chimney must be removable
to allow a maximum clearance of 13-1/2 feet (343mm) from
ground level for transportation purposes.

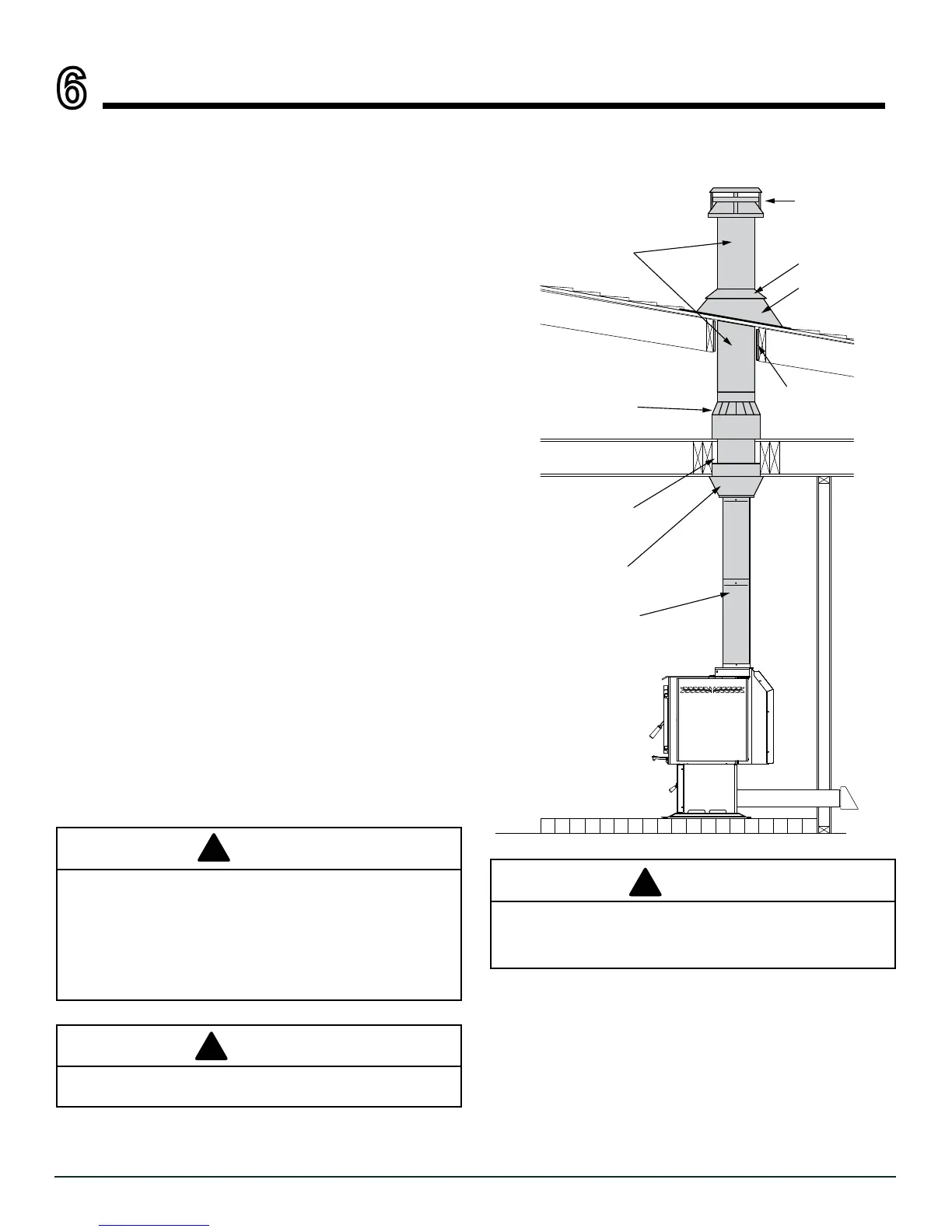

6
Mobile Home
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED.
DO NOT CUT THROUGH:
• FLOOR JOIST, WALL STUDS, OR CEILING TRUSSES.
• ANY SUPPORTING MATERIAL THAT WOULD AFFECT
THE STRUCTURAL INTEGRITY.
CAUTION
INSTALLATION MUST COMPLY WITH
MANUFACTURED HOME AND SAFETY STANDARD
(HUD), CFR 3280, PART 24.
WARNING
DO NOT INSTALL IN SLEEPING ROOM.
WARNING
Chimney Connector
Minimum air space
with chimney listing
Chimney support
Attic radiation shield
Chimney sections
Chimney cap
Storm collar
Roof flashing
Roof radiation
shield
Outside
Air
