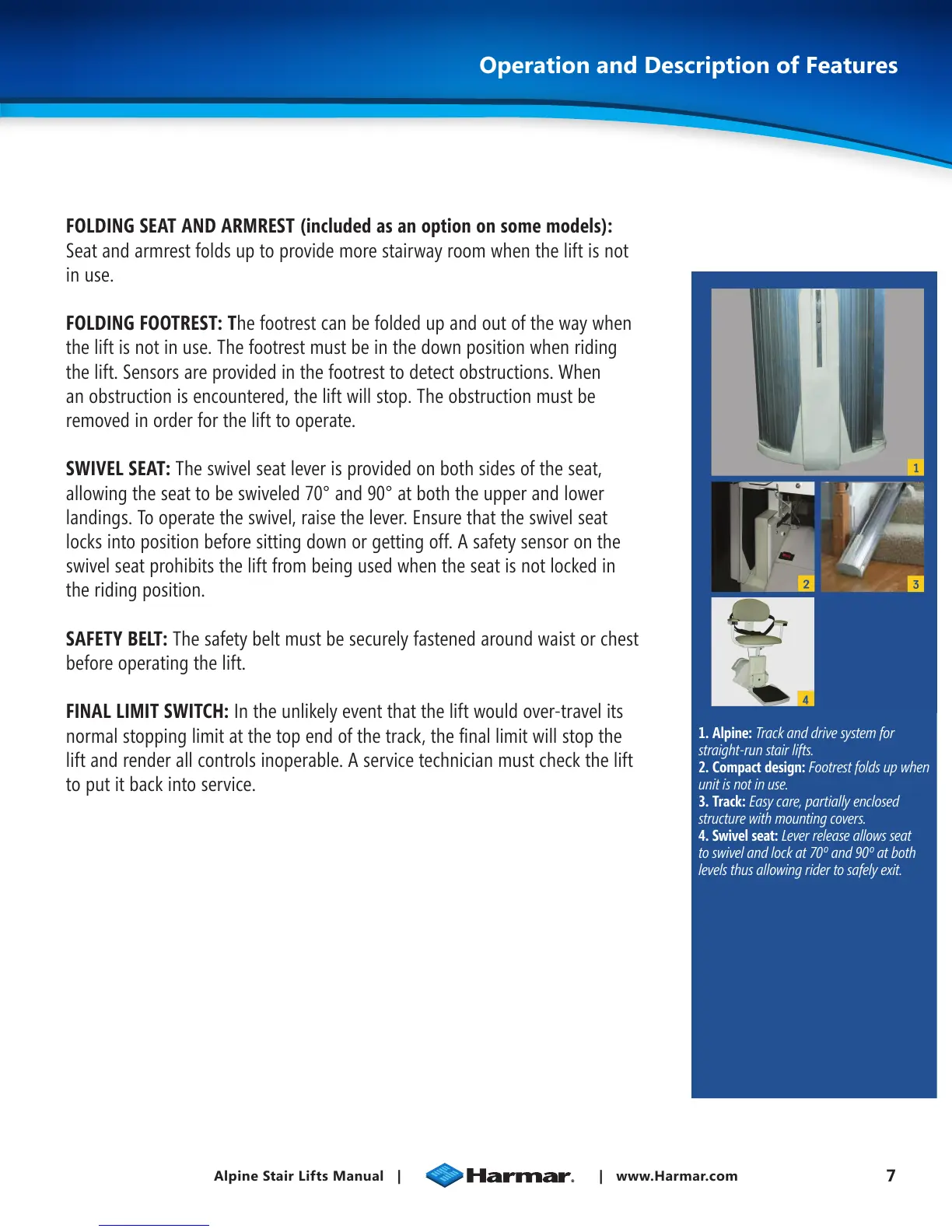

FOLDING SEAT AND ARMREST (included as an option on some models):
Seat and armrest folds up to provide more stairway room when the lift is not
in use.
FOLDING FOOTREST: The footrest can be folded up and out of the way when
the lift is not in use. The footrest must be in the down position when riding
the lift. Sensors are provided in the footrest to detect obstructions. When
an obstruction is encountered, the lift will stop. The obstruction must be
removed in order for the lift to operate.
SWIVEL SEAT: The swivel seat lever is provided on both sides of the seat,
allowing the seat to be swiveled 70° and 90° at both the upper and lower
landings. To operate the swivel, raise the lever. Ensure that the swivel seat
locks into position before sitting down or getting off. A safety sensor on the
swivel seat prohibits the lift from being used when the seat is not locked in
the riding position.
SAFETY BELT: The safety belt must be securely fastened around waist or chest
before operating the lift.
FINAL LIMIT SWITCH: In the unlikely event that the lift would over-travel its
QRUPDOVWRSSLQJOLPLWDWWKHWRSHQGRIWKHWUDFNWKH¾QDOOLPLWZLOOVWRSWKH
lift and render all controls inoperable. A service technician must check the lift
to put it back into service.
CB0<-5914'-4;'E06:<9B5914'12'+0-5=<06
1. Alpine: Track and drive system for
straight-run stair lifts.
2. Compact design: Footrest folds up when
unit is not in use.
3. Track: Easy care, partially enclosed
structure with mounting covers.
4. Swivel seat: Lever release allows seat
to swivel and lock at 70º and 90º at both
levels thus allowing rider to safely exit.
