SYNCHRONIZATION (OPTION)
Synchronization may be required for setting up two TXL Bases.
Insert one cable of the Sync Box (Optional A) into the Motor of your Adjustable Base.
After completing the first three steps on the Second Base as describe on page 14, insert the
other end of the Sync Box (Optional A) into the Motor of the second TXL Adjustable Base.

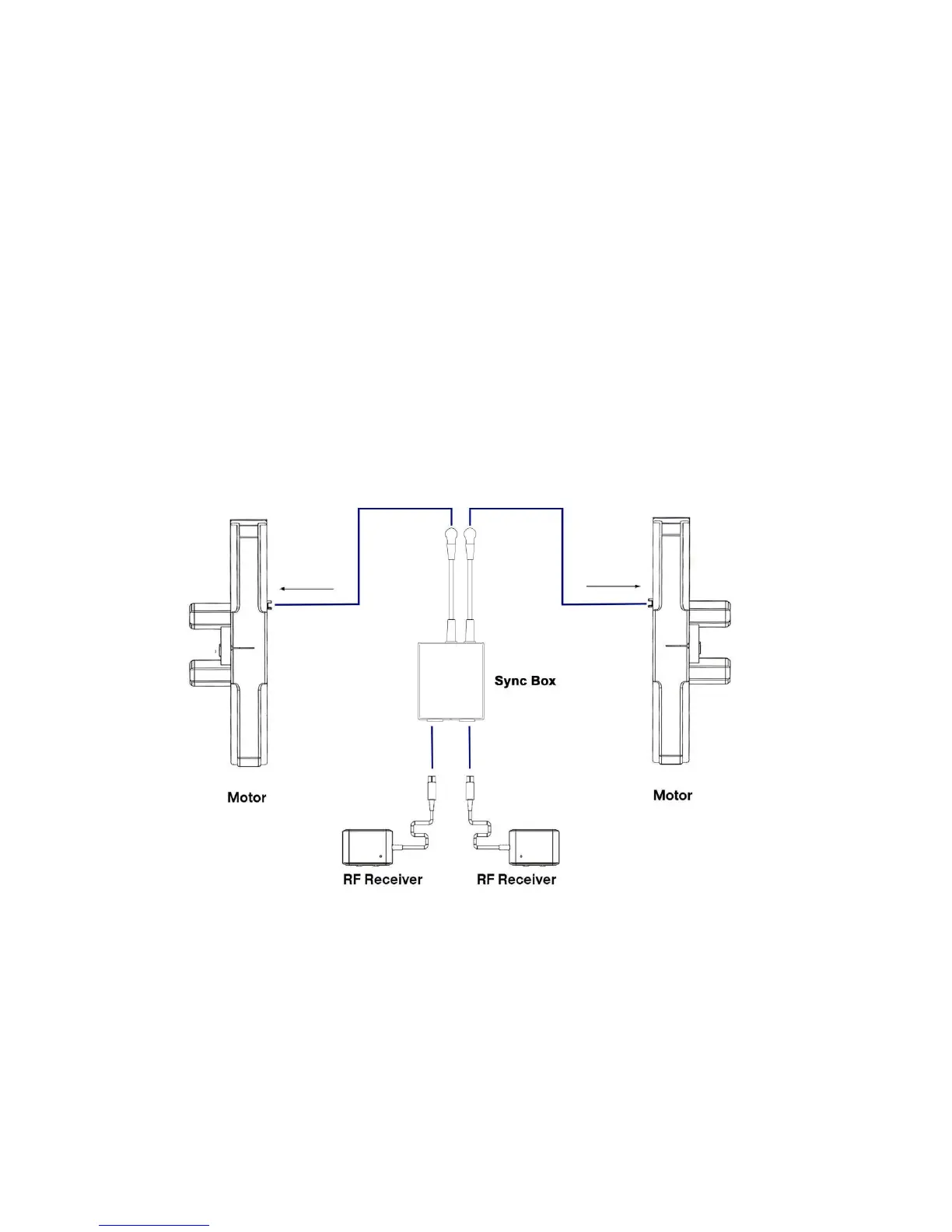

Insert both RF Receivers into the Sync Box (Optional A) as it show on the picture below.
NOTE: Both remotes, if used at the same time, the Base will freeze in place and will no
operate until one of the Remote’s buttons are not being pushed at the same time.
