Harris Stratex Eclipse 4.6 - 300 Series Indoor Units

Vol. II-1-2 Harris Stratex Networks
Chapter 1. System Overview

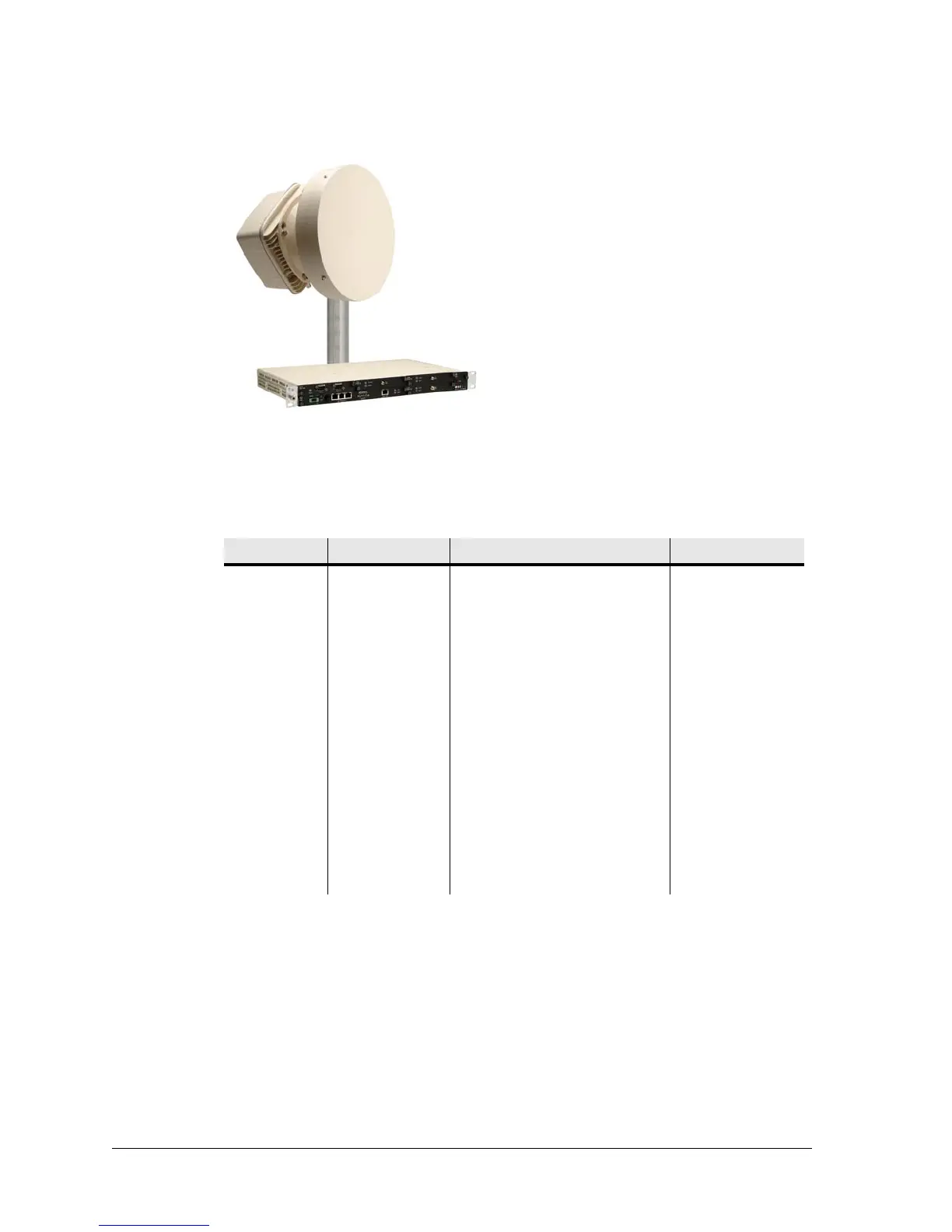

Figure 1-1.
Eclipse Terminal
300 Series Indoor Units
The IDU 300 is available in variants to transport PDH, SDH or Ethernet on ETSI and
ANSI bands.
Table 1-1. IDU 300 Variants
ODU options support operation on bands 5 to 38 GHz:
IDU 300 Series Overview
IDU 300 20x and IDU 300 8x
IDU 300 20x supports capacities to 20xE1 or 16xDS1 with modulation options from
QPSK to 128 QAM, depending on the selected capacity/bandwidth.
IDU 300 8x supports capacities of 4x, 5x, 8xE1, or 4x, 8xDS1 with modulation options
from QPSK to 32 QAM, depending on the selected capacity/bandwidth.
Application Variant Capacities Modulation
E1/DS1 IDU 300 8x 4x, 5x, 8xE1, or
4x, 8xDS1
QPSK to 32QAM
IDU 300 20x 4x, 5x, 8x, 10x, 16x, 20xE1, or
4x, 8x, 16xDS1
QPSK to 128QAM
IDU 300 20xV2 5x, 10x, 20x, 32x, 40xE1, or
4x, 8x, 16x, 28x, 32xDS1
QPSK to 128QAM
IDUsp 4x 4xE1 QPSK
IDUsp 16x 4x, 8x, 16xE1 QPSK
STM1/OC3 IDU 155o STM1/OC3 16/64/128QAM
Ethernet IDU ES 10/100Base-T to 200 Mbps with
up to 8xE1/DS1 tribs
QPSK to 256QAM
IDU GE 20x 10/100/1000Base-T plus
1000Base-LX or 1000Base-T
SFP option. Throughputs to 360
Mbps and up to 20xE1tribs.
QPSK to 256QAM
