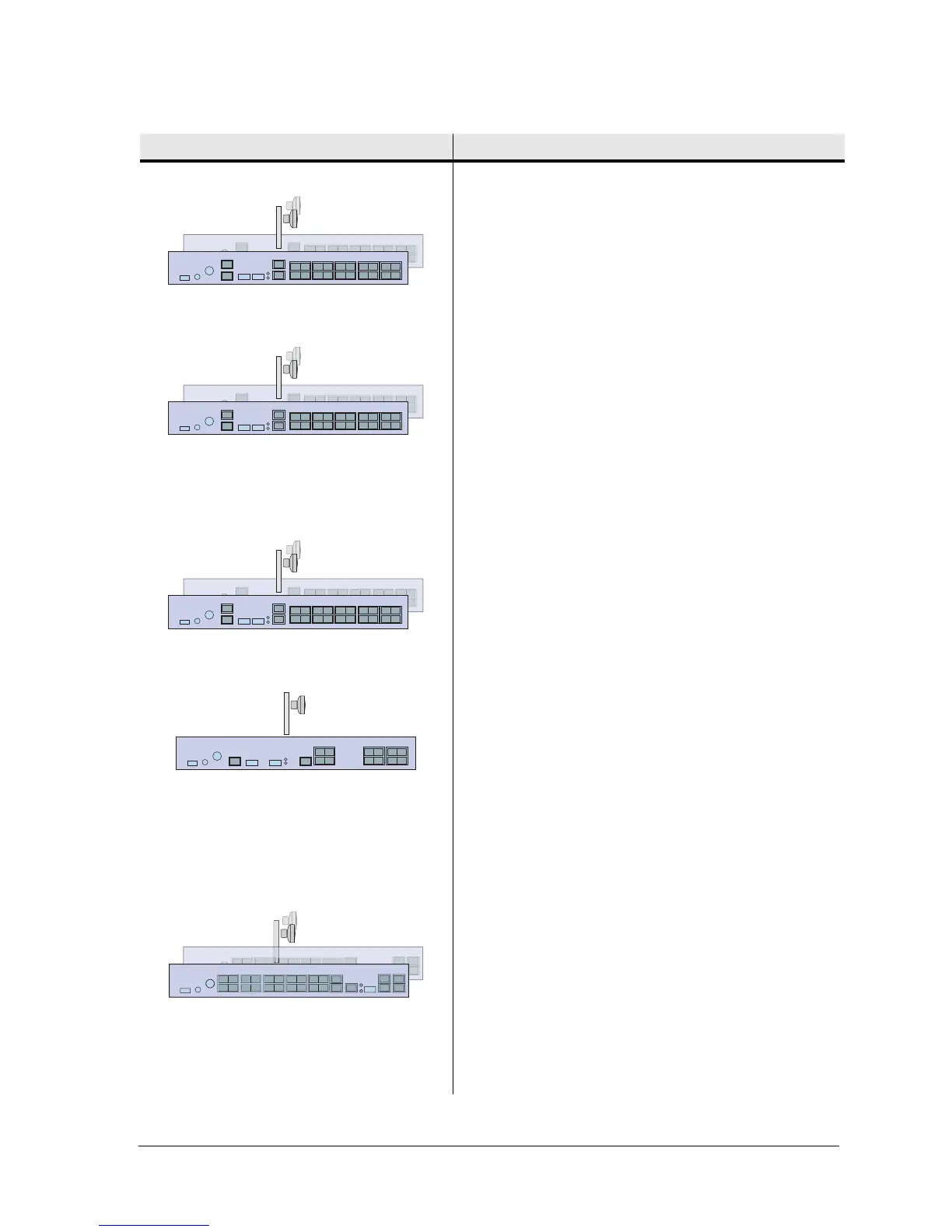

Harris Stratex Eclipse 4.6 - IDU 300 8 x, 20 x; IDU 300 20 xV2; IDU 1550; IDU ES

260-668066-001 Rev 024 February 2009 Vol. II-1-19
Eclipse User Manual
IDU 300 8x, 20x • ODU 300sp/hp/ep
• QPSK or 16 QAM modulation for 4x to 20x E1/DS1
• Non-protected or hot-standby
• Can be linked to Eclipse Node (ODU 300, RAC 30v1/
v2, DAC 4/16x, AUX)
• Includes auxiliary data and alarm I/O
IDU 300 20xV2 • ODU 300sp/hp/ep
• QPSK to 64 QAM modulation for 5x to 40xE1, 4x to
32xDS1
• Non-protected, hot-standby, space diversity
• Can be linked to Eclipse Node (ODU 300, RAC 30v3,
DAC 4/16x, AUX)
• Can be linked to IDU GE 20x
• Includes auxiliary data and alarm I/O
IDU 155o • ODU 300hp/ep
• 16/64/128 QAM modulation for 1xSTM1/OC3
• Non-protected, hot-standby, space diversity
• Can be linked to Eclipse Node (ODU 300, RAC 30v3,
RAC 3X, DAC 155o, AUX)
• Includes auxiliary data and alarm I/O
IDU ES • ODU 300sp/hp/ep
• QPSK to 256 QAM modulation
•Non-protected operation
• Ethernet throughputs from 10 to 200 Mbps with up
to 8xE1/DS1 waysides
• Can be linked to Eclipse Node (ODU 300, RAC 30v3,
RAC 3X, DAC ES/GE, DAC 4/16x, AUX)
• Can be linked to IDU GE 20x
• Includes auxiliary data and alarm I/O
IDU GE 20x • ODU 300sp/hp/ep
• QPSK to 256 QAM modulation for 10 to 200 Mbps
Ethernet
• Up to 20xE1 or 20xDS1 tribs
• Non-protected, hot-standby, space diversity
• Can be linked to Eclipse Node (ODU 300, RAC 30v3,
RAC 3X, DAC GE/ES, DAC 4/16x, AUX I/O)
• Can be linked to IDU ES and to IDU 300 20xV2
• Includes alarm I/O
IDU Characteristics
