HART HLCS01 User Manual

25 – English
FIG. 36
For smooth and fast cutting, chain needs to
bemaintained properly. Thechain requires
sharpeningwhenthewoodchipsaresmalland
powdery,thechainmustbeforcedthroughthe
wood during cutting, or the chain cuts to one side.
During maintenance of your chain, consider the
following:
Improperfilingangleofthesideplatecanin-
creasetheriskofaseverekickback.
Raker(depthgauge)clearance.
Toolowincreasesthepotentialforkickback.
Notlowenoughdecreasescuttingability.
Ifcutterteethhavehithardobjectssuchasnails
andstones,orhavebeenabradedbymudor
sandonthewood,haveservicedealersharpen
chain.
NOTE: Inspectthe drive sprocketfor wear or
damagewhenreplacingthechain.Ifsignsofwear
ordamagearepresentintheareasindicated,have
thedrivesprocketreplacedbyanauthorizeddealer.

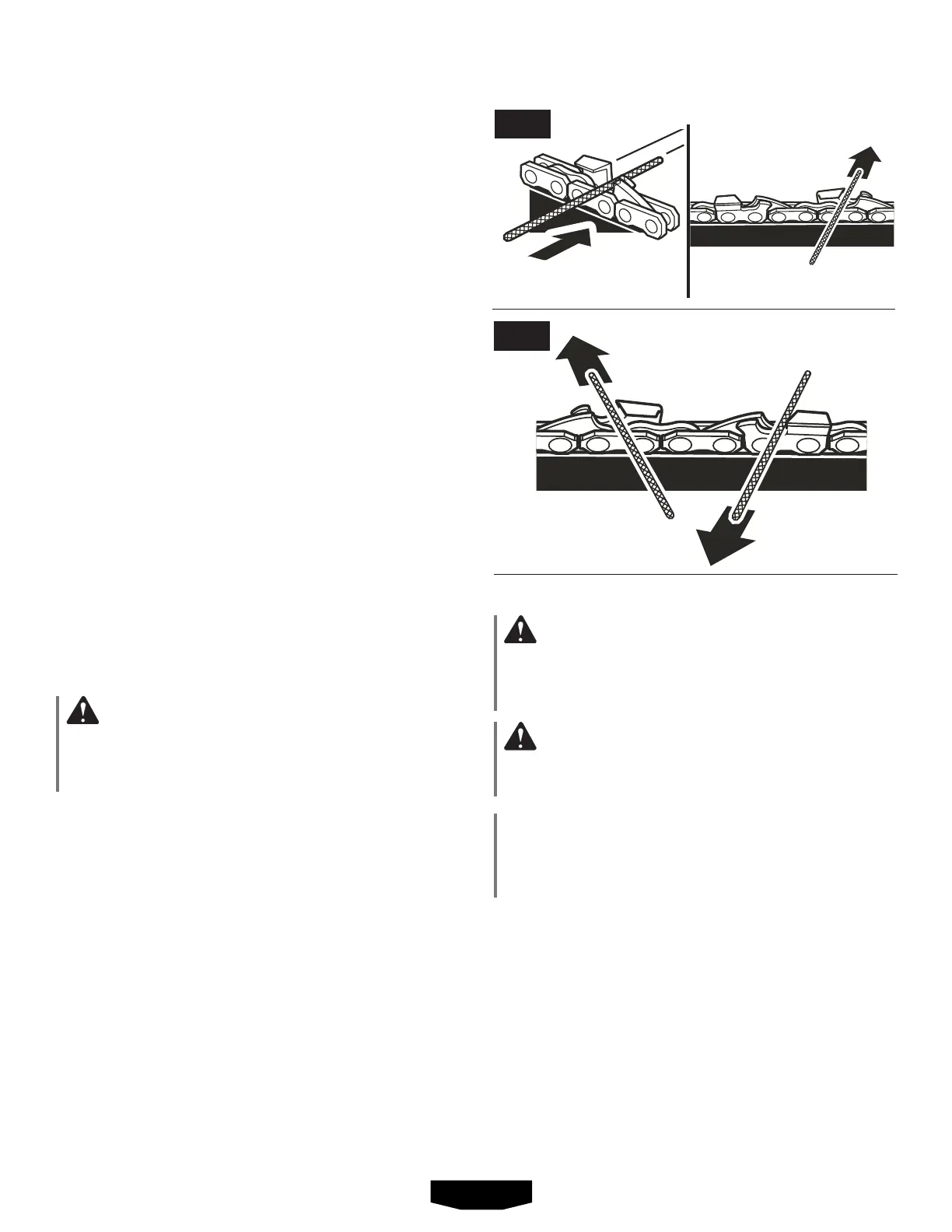

HOW TO SHARPEN THE CUTTERS
See Figures 36 - 37.
Becarefultofileallcutterstothespecifiedangles
and to the same length, as fast cutting can be
obtained only when all cutters are uniform.
WARNING:
Thesawchainisverysharp,alwayswearpro-
tectivegloveswhenperformingmaintenance
tothechaintopreventseriouspersonalinjury.
Properlytensionthechainpriortosharpening.
Refer to Chain Tension section earlier in this
manual.Doallofyourfilingatthemid-pointof
the bar.
Usea5/32in.diameterroundfileandholder.
Keepthefilelevelwiththetopplateofthetooth.
Donotletthefilediporrock.
Usinglightbutfirmpressure,stroketowards
the front corner of the tooth.
 Lift file away from the steel on each return
stroke.
Putafewfirmstrokesoneverytooth.Fileall
lefthandcuttersinonedirection.Thenmove
to the other side and file the right hand cutters
intheoppositedirection.
Removefilingsfromthefilewithawirebrush.
MAINTENANCE
LEFT HAND
CUTTERS
RIGHT HAND
CUTTERS
FIG. 37
WARNING:
Improper chain sharpening increases the
potential of kickback, which can result in
seriouspersonalinjury.
WARNING:
Failuretoreplaceorrepairdamagedchaincan
cause serious injury.
NOTICE:
Adullorimproperlysharpenedchaincancause
excessive motorspeed during cuttingwhich
mayresultinseveremotordamage.
TOP PLATE FILING ANGLE
See Figure 38.
CORRECT30°-Fileholdersaremarkedwith
guidemarkstoalignfileproperlytoproduce
correcttopplateangle.
LESSTHAN30°-ForCrossCutting.
MORE THAN 30°- Feathered EdgeDulls
Quickly.
