Harvest TEC 201LS - Component Pin Outs

15

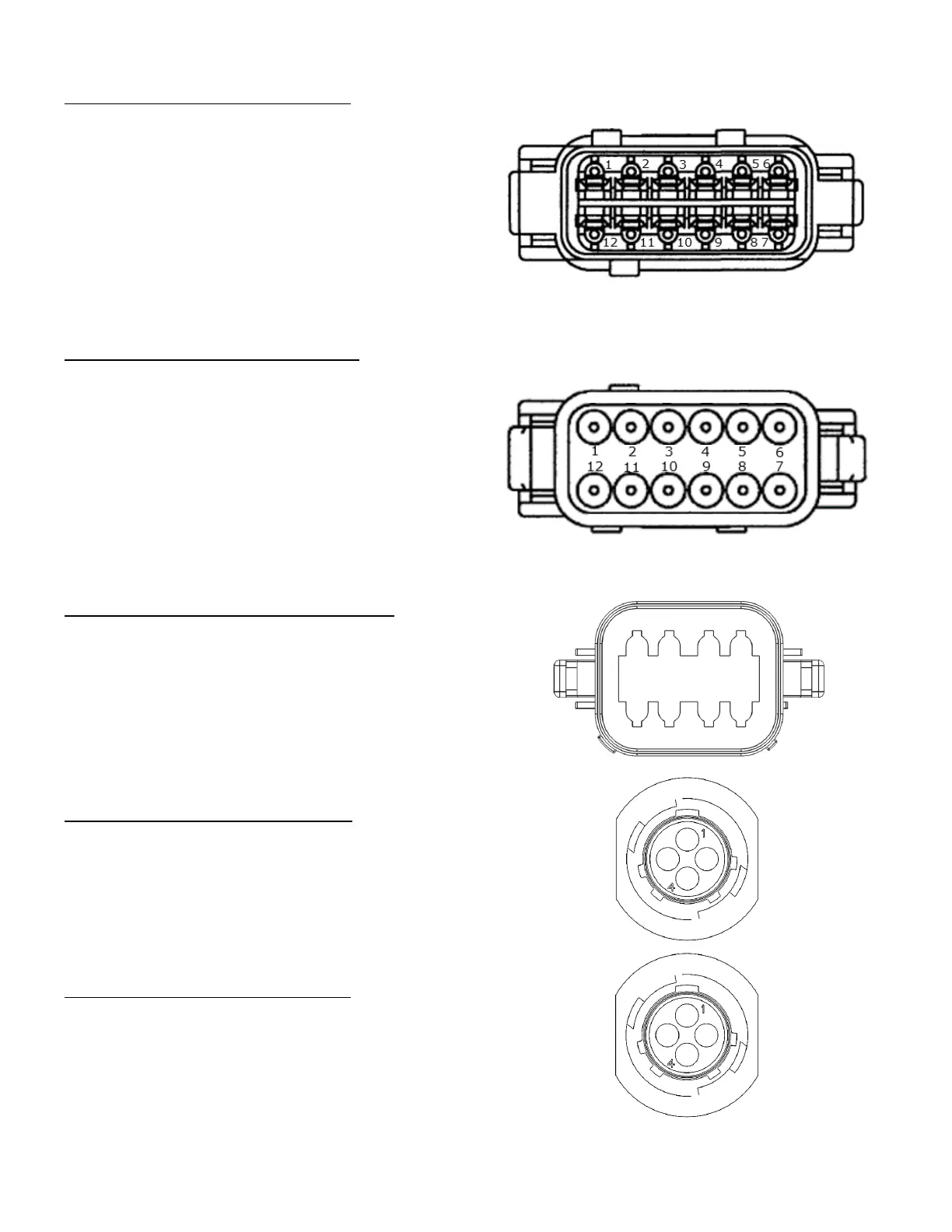

Pin Outs
H2O Wired Moisture Control 006-2473SB
Pin 1 Red Module Power
Pin 2 Red/Black EOB +
Pin 3 Black EOB -
Pin 4 Grey Left Moisture Sensor
Pin 5 Brown Right Moisture Sensor
Pin 6 Purple EOB Signal
Pin 7 Yellow CAN +
Pin 8 Green CAN -
Pin 9 Red/White Dye Marker 12V +
Pin 10 Black/White Dye Marker 12V -
Pin 11 Blue Dye Marker Prime
Pin 12 Black Ground
H2O Wired Power Harness 006-2470P
Pin 1 Red Module Power
Pin 2 Red/Black EOB +
Pin 3 Black EOB -
Pin 4 Grey Left Moisture Sensor
Pin 5 Brown Right Moisture Sensor
Pin 6 Purple EOB Signal
Pin 7 Yellow Not Used
Pin 8 Green Not Used
Pin 9 Red/White Dye Marker 12V +
Pin 10 Black/White Dye Marker 12V -
Pin 11 Blue Dye Marker Prime
Pin 12 Black Ground
Baler Communication Harness 006-2470LS
Pin 1 Red/Black EOB +
Pin 2 Black EOB -
Pin 3 Purple Left Moisture Sensor
Pin 4 Grey Right Moisture Sensor
Pin 5 Brown EOB Signal
Pin 6 Red/White Dye Marker 12V +
Pin 7 Black/White Dye Marker 12V -
Pin 8 Blue Dye Marker Prime
End of Bale Sensor (EOB) 006-2471B
Pin 1 Brown EOB +
Pin 2 Blue EOB -
Pin 3 N/A Not Used
Pin 4 Black EOB Signal
Dye Marker H2O Harness 006-2470C
Pin 1 Red DS +
Pin 2 Black DS -
Pin 3 White DS Prime
Pin 4 N/A Not Used
5 6 7 8
1 2 3 4
1
1
2
2
3
3
4
4
