Harvest TEC 201LS - Parts Breakdown; Star Wheels Parts

16

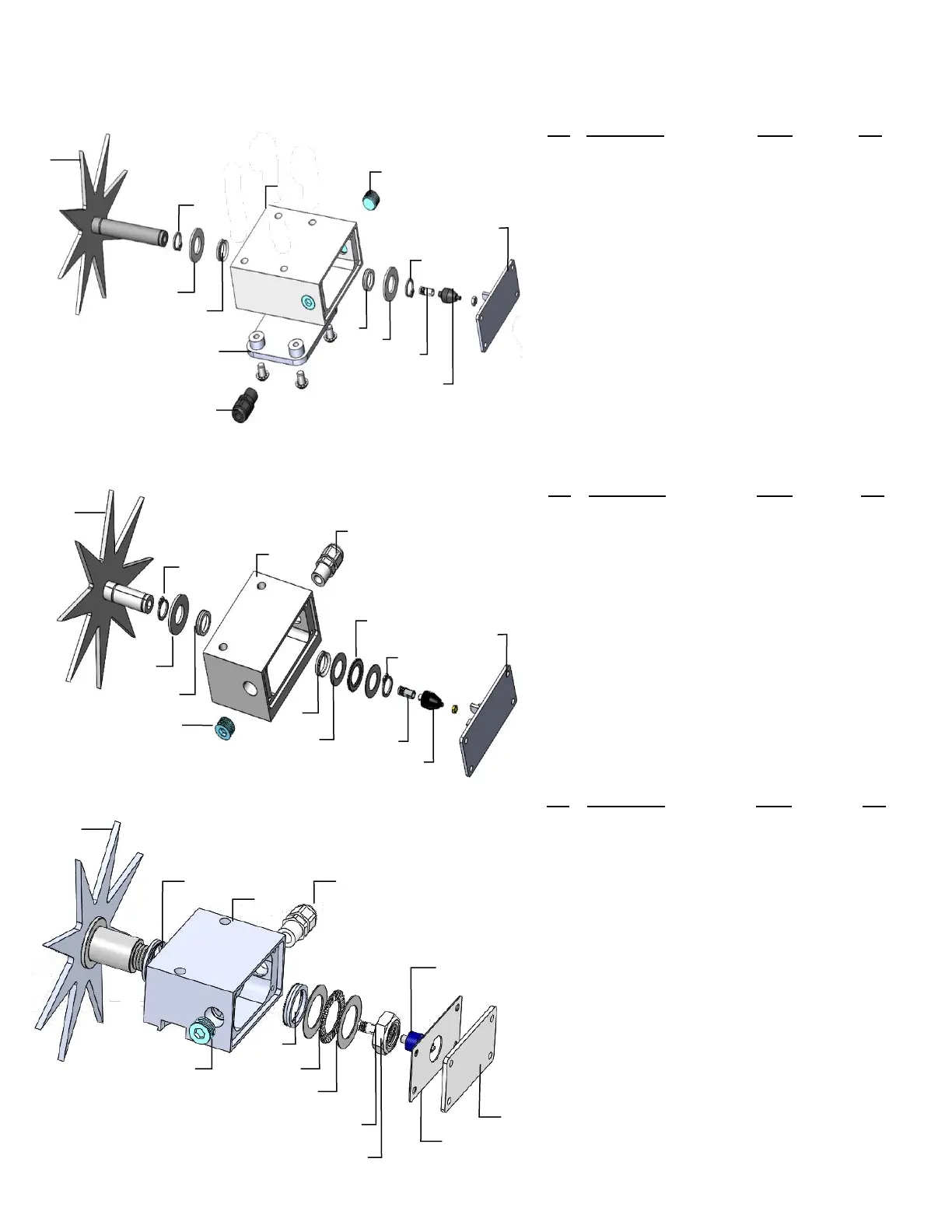

Star Wheels
Large Square Balers
JD, Vicon, Kuhn, Krone, Claas 3200-3400
AGCO UHD Baler
Ref
Description
Part#
Qty
1
Star wheel sensor
030-4641C
1
2
Snap ring (per side)
006-4641K
2
3
Washer (per side)
w/006-4641K
2
4
Dust seal (per side)
w/006-4641K
2
5
Star wheel block
006-4641A
1
6
Star wheel spacer
001-6707E
1
7
Wiring grommet
008-0821A
1
8
Plug fitting
003-F38
2
9
Swivel insert
w/ Ref # 1
2
10
Electronic swivel
006-4642A
2
11
Block cover
006-4641B
2
*Optional Twine guard-left
001-4645
1
*Optional Twine guard-right
001-4644
1
Star wheel Assembly
030-4641
(Ref 1-11)
Ref
Description
Part#
Qty
1
Star wheel
006-4641E
1
2
Snap ring (per side)
w/006-4642K
2
3
Washer 1-1/4”
Hardware
1
4
Dust seal (per side)
w/006-4642K
1
5
Plug fitting
003-F38
1
6
Star wheel block
006-4641D
1
7
Wiring grommet
008-0821A
1
8
Washer 5/8”
w/006-4642K
2
9
Bearing
w/006-4642K
1
10
Insert w/ Ref #1
006-4642B
1
11
Swivel
006-4642A
1
12
Block Cover
006-4641B
1
*Optional Twine guard-left
001-4644
1
*Optional Twine guard-right
001-4645
1
Star Wheel Assembly
030-4642
(Ref 1-12)
Ref
Description
Part#
Qty
1
Univ Star Wheel
006-4641S
1
2
Dust Seal
006-4641DSL
2
3
Univ Star Block
006-4641Q
1
4
3/8” NPT Cable Grip
008-0821A
1
5
3/8” NPT Plug
003-F38
1
6
Thrust Washer
006-4641TA
2
7
Thrust Bearing
006-4641TB
1
8
Swivel Insert
006-4642B
1
9
3/4" Short Nut
006-4641U
1
10
Rotary Swivel
006-4642A
1
11
Cover Gasket
006-4641RG
1
12
Univ Block Cover
006-4641R
1
*Optional Twine guard-left
001-4644
1
*Optional Twine guard-right
001-4645
1
Star Wheel Assembly
030-4641U
(Ref 1-12)
4
3
2
5
2
6
7
8
11
12
9
10
1
2
3
6
7
4
8
10
4
5
9
11
2
1
1
2
3
4
5
8
7
4
3
2
9
10
11
6
12
*Can be added if twine excessively
makes contact with star wheels.
