Harvest TEC 201LS - H2 O Dye Marker Parts

18
H
2
O Dye Marker
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
H2O Harness (10’)
006-2470C
1
8
1/4" Street Elbow
003-SE14F
2
2
Tank & Pump
005-9015
1
9
Check Valve
007-1207VB
2
3
Nozzle Cap
004-4723
4
10
1/4" Straight Fitting
003-A1414VB
2
4
Tip - Brass
004-TX-5
2
11
Push Switch
006-2850
1
5
Tip Strainer (Green)
004-1203-100
2
12
1/4" All Barb Tee
003-T1414
1
6
Nozzle Body
004-4722
2
13
Mini Hose Clamp
003-9002
6
7
Nozzle Holder
001-4215
2
14
1/4" Hose
002-9006
40
NP
Red Dye
009-0800
1
NP
End of Bale Sensor Kit
200FCA
1
Complete Assembly
030-200DM
1
2
11
8
7
6
5
4
3
12
13
14
9
10

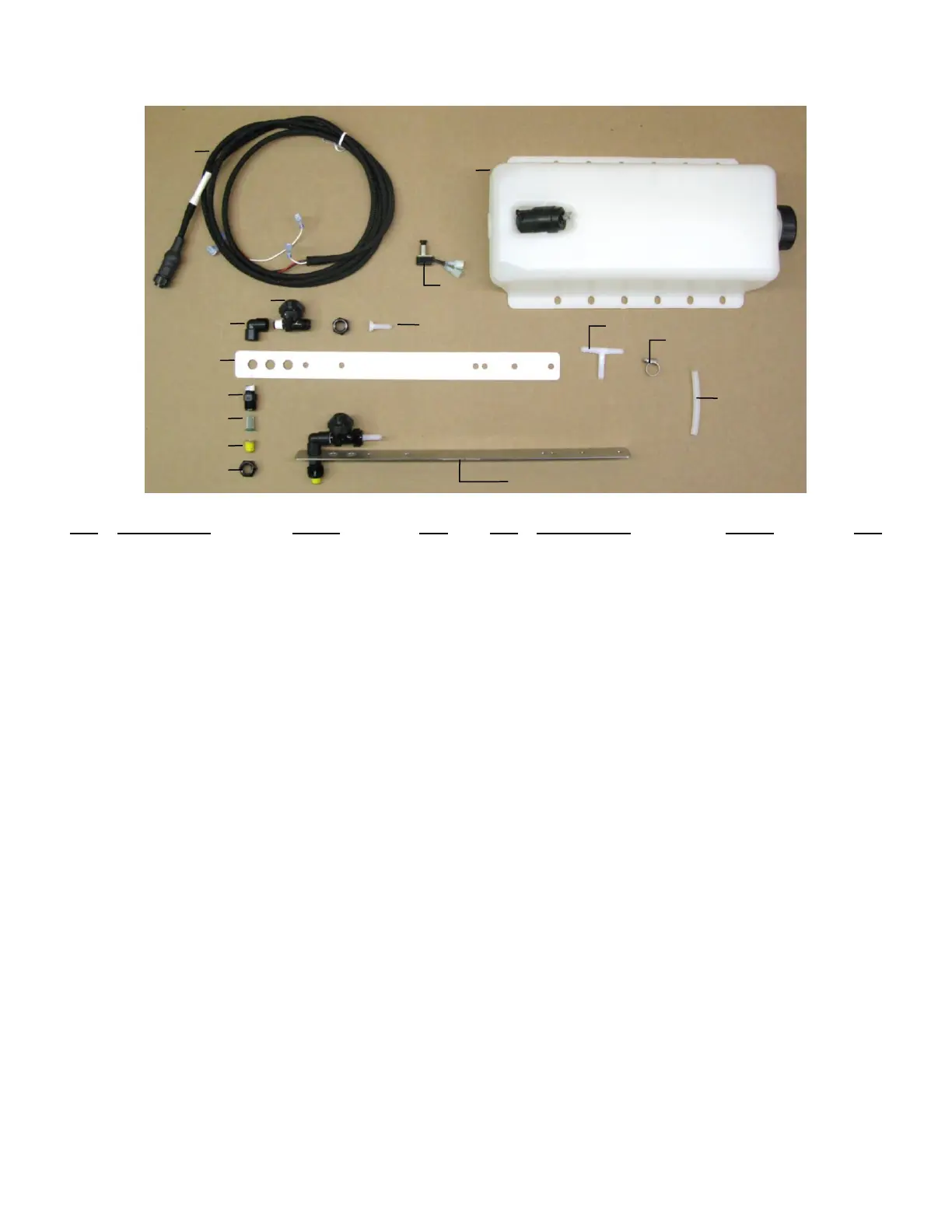

Assembly Example
