EN DE
13
3. MONTAGEANLEITUNG
3.1. Vor der Montage
Sorgen Sie vor der Montage des Ofens dafür,
dass alle Anforderungen bezüglich der Sicher-
heitsabstände eingehalten werden. Innerhalb des
Sicherheitsabstands um den Ofen herum dürfen sich
keine elektrischen Geräte, Kabel oder brennbare Ma-
terialien befinden.
Alle ortsüblichen Vorschriften, inbegriffen
derer, die sich auf staatliche oder europäische
Standards beziehen, müssen bei der Installation
der Feuerstelle berücksichtigt werden.
Der Ofen ist nicht zum Anschluss an einen ge-
teilten Schornstein geeignet (Bauart 1).
Nähere Informationen zu Brandschutzbestim-
mungen erhalten Sie von den örtlichen Behör-
den, die für die Genehmigung der Einbauten
zuständig sind.
3.1.1. Belüftung der Saunakabine
Die Belüftung der Saunakabine soll folgendermaßen
angelegt sein:
Schwerkraftentlüftung (Abbildung 5)
A. Die Frischluftzufuhr muss sich in der Nähe des
Ofens nahe am Boden benden und
B. der Auslass sollte sich so weit weg wie mög-
lich vom Ofen benden und in der Nähe des
Daches. Da der Ofen selbst über eine effekti-
ve Luftzirkulation verfügt, dient der Auslass
hauptsächlich zum Abziehen der Feuchtigkeit
aus der Sauna nach dem Saunabad.
Mechanische Entlüftung (Abbildung 6)
A. Die Frischluftzufuhr muss sich etwa 500 mm
über dem Ofen benden und
B. der Auslass sollte in Bodennähe liegen, zum
Beispiel unter der Bank.
3. INSTRUCTIONS FOR INSTALLATION
3.1. Before Installation
Before installing the stove make sure that all
safety distance requirements are fulfilled.
There shall be no electrical devices, wires or
inflammable materials within the established safety
distances around the stove.
All local regulations, including those referring
to national and European standards need to be
complied with when installing the appliance.
The stove is not suitable for installation in a
shared ue system.
The local re authorities in charge of
approving the installations can provide
more detailed information about re safety
regulations.
3.1.1. Ventilation of the Sauna Room
The ventilation of the sauna room should be arranged
as follows:
Gravity exhaust ventilation (figure 5)
A. The fresh air inlet must be placed close to the
oor near the stove and
B. its outlet should be as far as possible from the
stove and near the ceiling. The stove itself
circulates air effectively; the purpose of the
outlet is mainly to remove moisture from the
sauna after bathing.
Mechanical exhaust ventilation (figure 6)
A. The fresh air inlet must be approx. 500 mm
above the stove and
B. the outlet should be close to the oor, for
example, below the bench.
B
A
Ø50–100
B
500
A
Ø50–100

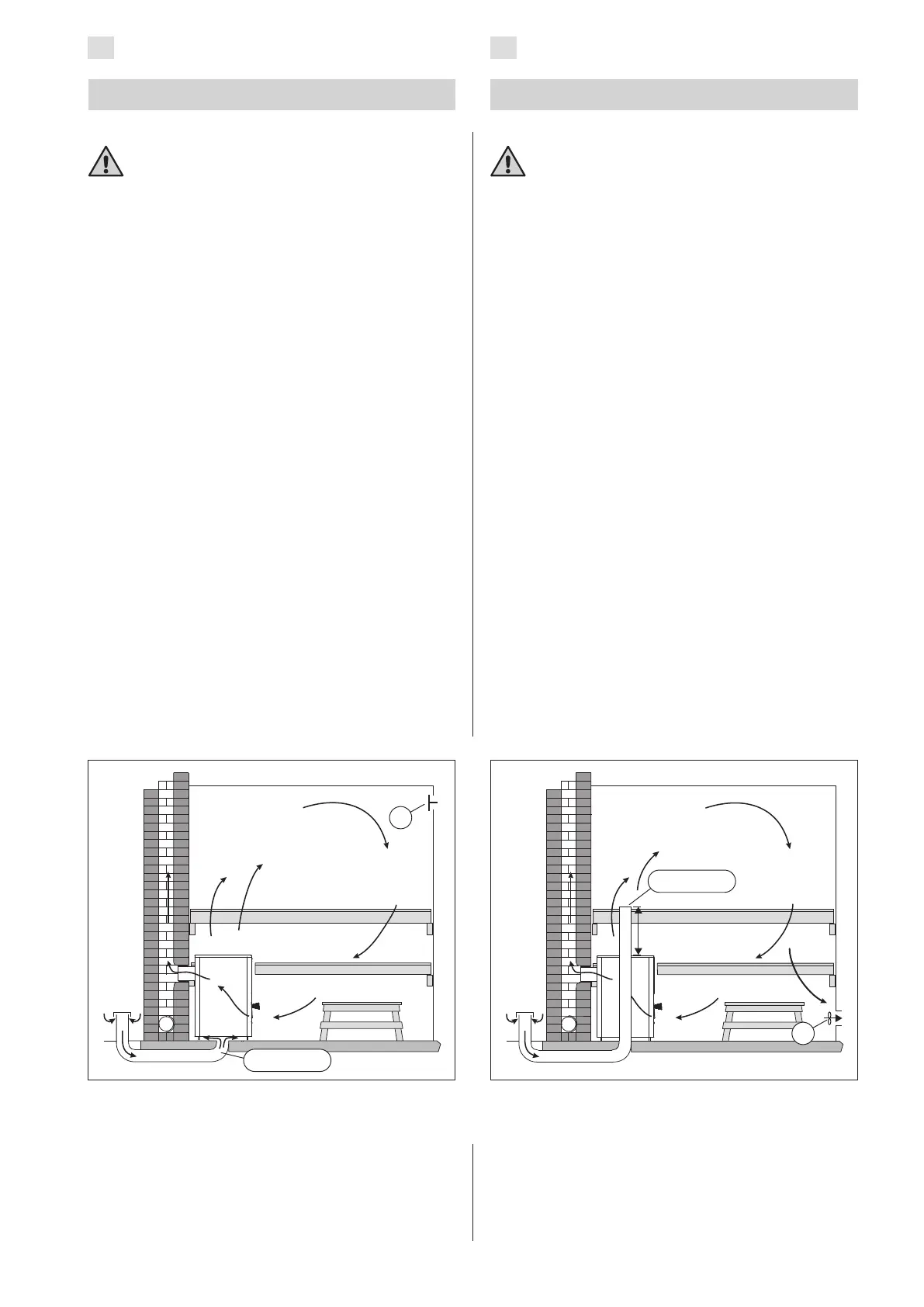

Figure 5. Gravity exhaust ventilation
Abbildung 5. Schwerkraftentlüftung
Figure 6. Mechanical exhaust ventilation
Abbildung 6. Mechanische Entlüftung
3.1.2. Protecting the Floor
See gure 7.
A. Concrete floor without tiles. The stove can
be installed on a concrete oor without any
specic safety measures, if the concrete is at
least 60 mm thick. Make sure that there are no
3.1.2. Bodenschutz
Siehe Abbildung 7.
A. Betonboden ohne Fliesen. Auf Betonboden kann
der Ofen ohne besondere Sicherheitsmaße auf-
gebaut werden, solange der Beton mindestens
60 mm dick ist. Vergewissern Sie sich, dass sich

Other manuals for Harvia M2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Harvia M2 and is the answer not in the manual?

Harvia M2 Specifications

General IconGeneral
Stone capacity20 kg
Dimensions (W x D x H)390 x 430 x 710 mm
Weight45 kg
Flue outlet diameter115 mm
Maximum wood length35 cm
MaterialSteel
TypeWood burning stove
Maximum room volume13 m³
