EN DE
21

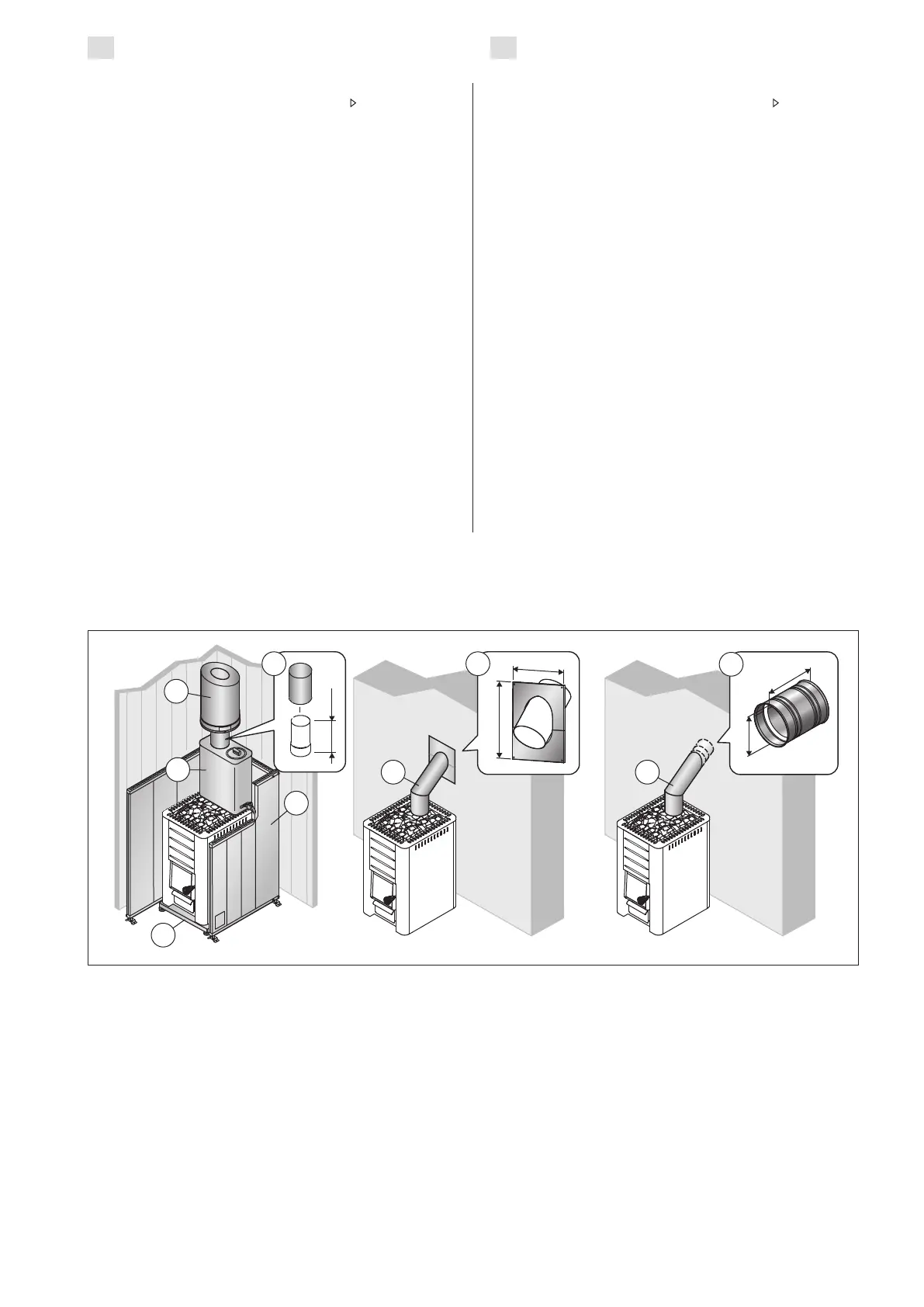

Figure 16. Accessories (all dimensions in millimeters)
Abbildung 16. Zubehör (alle Abmessungen in Millimetern)
3.4. Zubehör
A. Harvia-Stahlschornstein WHP1500. 3.2.3.
B. Warmwasserbehälter VL22l. Oben auf der
oberen Anschlussöffnung montiert. Wenn ein
Schutzmantel oder ein anderer Schutz benutzt
wird, der nicht groß genug ist, um die brenn-
baren Materialien um den Ofen herum vor der
Wärmestrahlung des Rohres zwischen dem
Warmwasserbehälter und dem Rauchfang zu
schützen, so müssen Sie um das Rohr herum
einen Strahlungsschutz anbringen.
C. Strahlungsschutz WZ020130. Um das Rauch-
rohr herum angebracht.
D. Harvia-Schutzmantel WX017. (Nur M2, M3, 20
Pro, 20 ES Pro/S.)
E. Harvia-Schutzplatte WX018, WL100. (Nur M2,
M3, 20 Pro, 20 ES Pro/S, Linear 22, 22.)
F. Winkelrauchrohr. Verschiedene Modelle.
G. Durchgangskragen für Rauchrohr WZ020115.
Bedeckt die Kanten der Rauchfangöffnung
und die Dichtung in der Wand. Aus Edelstahl
gefertigt. Besteht aus zwei Teilen, die sich für
verschieden geneigte Rauchrohre eignen.
H. Maueranschluss WZ011115. Angebracht an
die Rauchfangöffnung, benötigt keine weiteren
Dichtungen. Die Innenseite verfügt bereits über
eine Dichtung.
210–290
215
148
138
270
C
A
E
F F
G
H
D
B
3.4. Accessories
A. Harvia steel chimney WHP1500. 3.2.3.
B. Water heater VL22l. Installed on the top of the
upper connection opening. When a protective
sheath or other protection is used that is
not large enough to protect the inammable
materials around the stove from the heat
radiation of the pipe between the water heater
and smoke ue, you must install a radiation
cover around the pipe.
C. Radiation cover WZ020130. Installed around
the smoke pipe.
D. Harvia protective sheath WX017. (For models
M2, M3, 20 Pro and 20 ES Pro/S only.)
E. Harvia protective bedding WX018, WL100.
(For models M2, M3, 20 Pro and 20 ES Pro/S,
Linear 22 and 22 only.)
F. Angle smoke pipe. Different models.
G. Lead-through flange for smoke pipe
WZ020115. Covers the edges of the ue
opening and the sealing in the wall. Made of
stainless steel. Consists of two parts to make it
useable with differently inclined smoke pipes.
H. Masonry connector WZ011115. Connected to
the ue opening, does not require other seals.
The inner side already has a seal.

Other manuals for Harvia M2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Harvia M2 and is the answer not in the manual?

Harvia M2 Specifications

General IconGeneral
Stone capacity20 kg
Dimensions (W x D x H)390 x 430 x 710 mm
Weight45 kg
Flue outlet diameter115 mm
Maximum wood length35 cm
MaterialSteel
TypeWood burning stove
Maximum room volume13 m³
