Camera body 503CW
Adjustment
October 1996
Revision 0
5:5

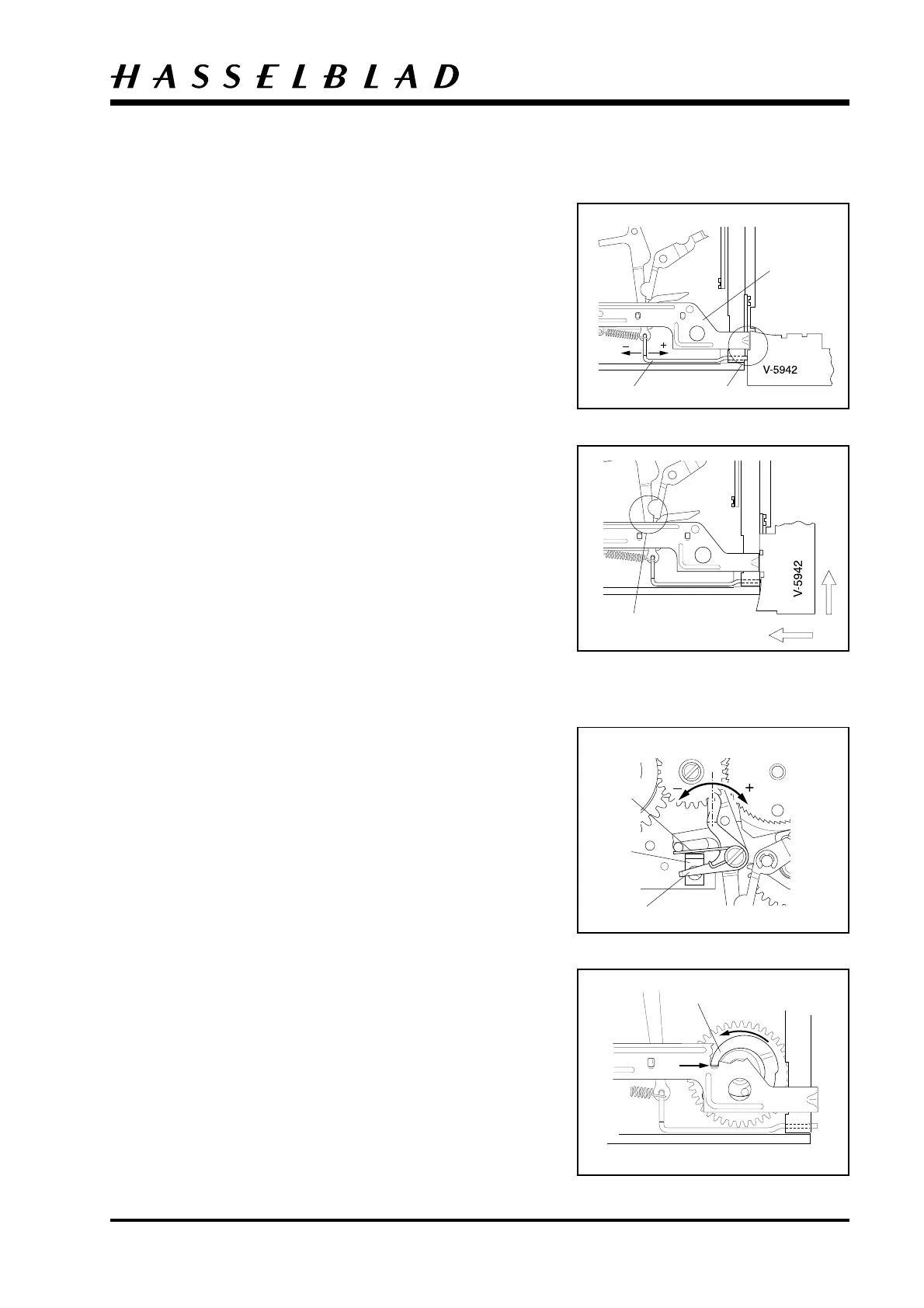

The push rod (22369) is adjusted so that it is set 0.15
mm below the release bar (30375) forward angle
setting. Check by using the tool V-5942.
Adjust by gently bending (22369).
Fig. 37.
Position tool V-5942 as shown and press against the
front plate. The mechanism should not release.
When the tool is moved upwards the mechanism should
release.
If a large adjustment is needed bend the release arm
(13357) using tool V-2224. Bend forward for an earlier
release and backwards for a delay in release. For a small
adjustment the push rod (22369) can be bent.
Fig. 38.
Fig. 39 and 40.
Pre-release the camera shutter by operating the S-arm
(21167) towards the angle stop (13432).
Shutter release should occur just as the S-arm strikes the
angled stop and at the same time cam ”A” should
be positioned on stop ”B”.
Adjust by bending the S-arm with tool V-2202.
Do not forget to re-adjust the angle stop (13432).
Minor adjustments can be carried out by just moving
or bending the angle stop (13432) without any
adjustments to the S-arm.
Note! That spring 816914 should not rest against the
angle stop when the camera is completely released.
Fig. 37
Fig. 38
Fig. 39
Fig. 40
22369 0.15 mm
30375
13357
Adjust here
with V-2224
13432
21167
816914
"B"
"A"
