Camera body 503CW
Adjustment
October 1996Revision 0
5:7
Operate the winding knob V-2206 to cock the shutter.
Check that the bayonet plate tool 904644 is blocked by
the stop lever (22769) when the camera is completely
cocked.
Adjust by bending the front of the lever. The lever
engagement should be retained until the camera is fully
released.
Fig. 44.
Fitting the damping ring (22287)
Hold the lid (14280) in position and unscrew (822605).
Position the damping ring (22287). Lubricate carefully
with grease and insert washer (810836) with the
concave side facing up. Refit the screw and tighten.
Check for ease of movement. Operate the camera and
check that the auxiliary shutters close distinctively
without slamming.
Fig. 45.
Adjust the spring pressure if necessary. Test the
function by opening the shutter and letting it close
slowly. Both shutters should close steadily. Check that
the shutters are level to ensure a light seal around the
edge.
Operate the pre-release lever so that the camera
auxiliary shutters opens to the B-position.
Check that the auxiliary shutter blinds do not influence
on the light path. Alignment of the blinds can be
adjusted by holding the shaft using pliers and carefully
bending in the desired direction.
Check that the shutter pivot point is not loose on the
shaft. If this is the case a new shutter must be fitted.
Check that the top shutter is positioned 4-5 mm in
front of the lower shutter blind on closing.
Fig. 46.
Secure all screws with safety lacquer.

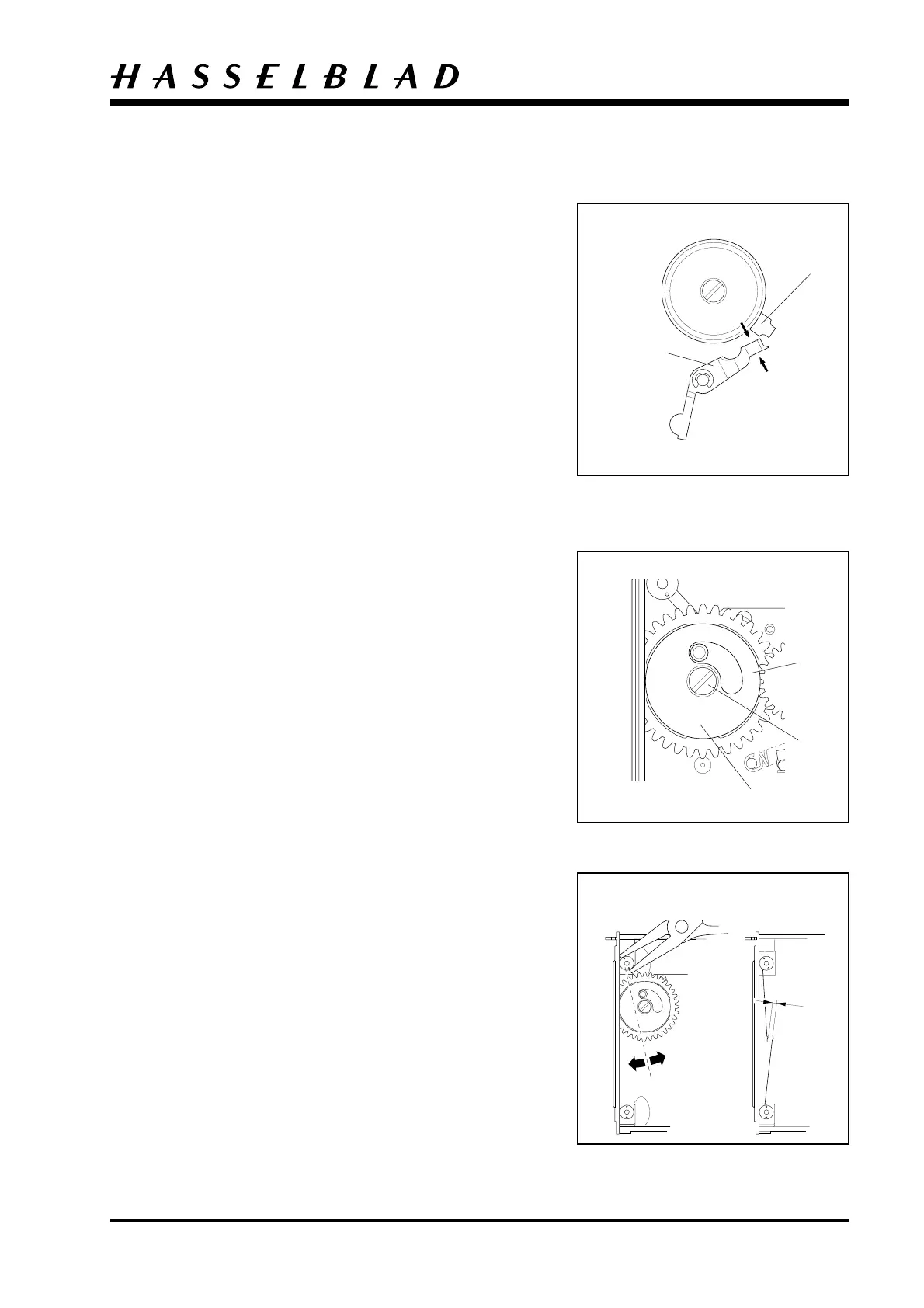

Fig. 44
