Camera body 503CW
Adjustment
May 2000Revision 3
Fitting the Circuit board (22575) *22882
CAUTION! When handling the circuit board a
grounded bench mat and a wrist strap must be
used to prevent ESD damage.
Put the insulating plate (22746) in position and place
the circuit board on top of it. Secure the board by first
fitting the two screws (820015) followed by the
attachment (22453).
* Note! The circuit board (22882) is fixed to the wall
by an insulating double-sided tape, screws and
attachment.
Put the photo diode in position on the inside of the
bottom part of the left hand wall and secure from the
outside with two screws (820325).
Fit the cable holder (12453) and securing the cables
with screw (820011).

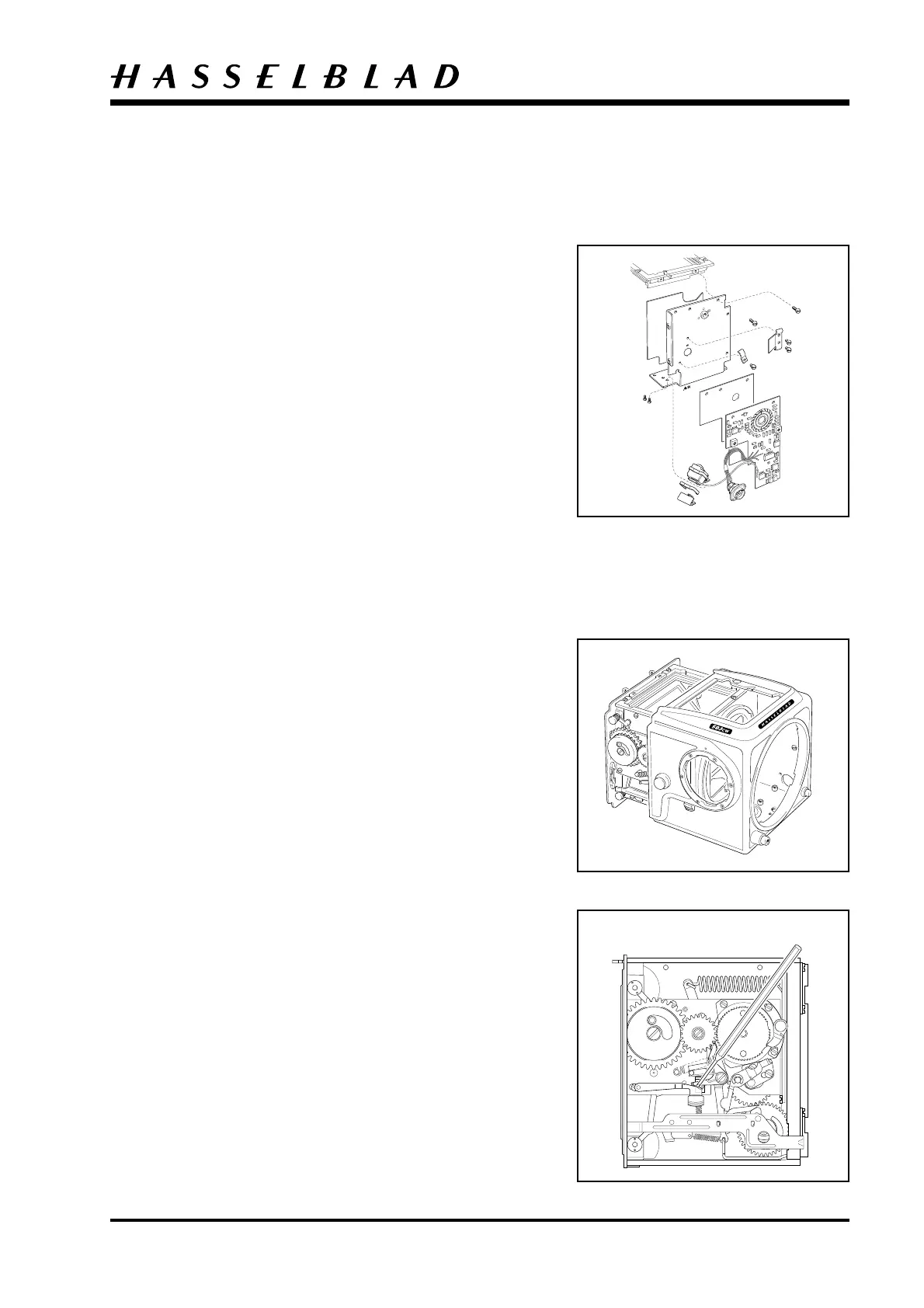

Fig. 47.
Fitting the camera body into the shell
Install the lens release button (13139), release button
(22759), buffer (22367), and the distance washers
(810620) into the shell.
Put the teflon cone (103373) in position on the camera
body.
The camera body can be fitted into the shell.
Fig. 48.
Note! That the S-arm (21167) has to be fitted using a
spring hook to ensure that the pre-lease button (22385)
is positioned beneath the S-lever.
Fig. 49.
* From camera serial No. 19ER18271
5:8
Fig. 48
Fig. 49
Fig. 47
