Form No. DHLM-1207
6
INSTALLATION

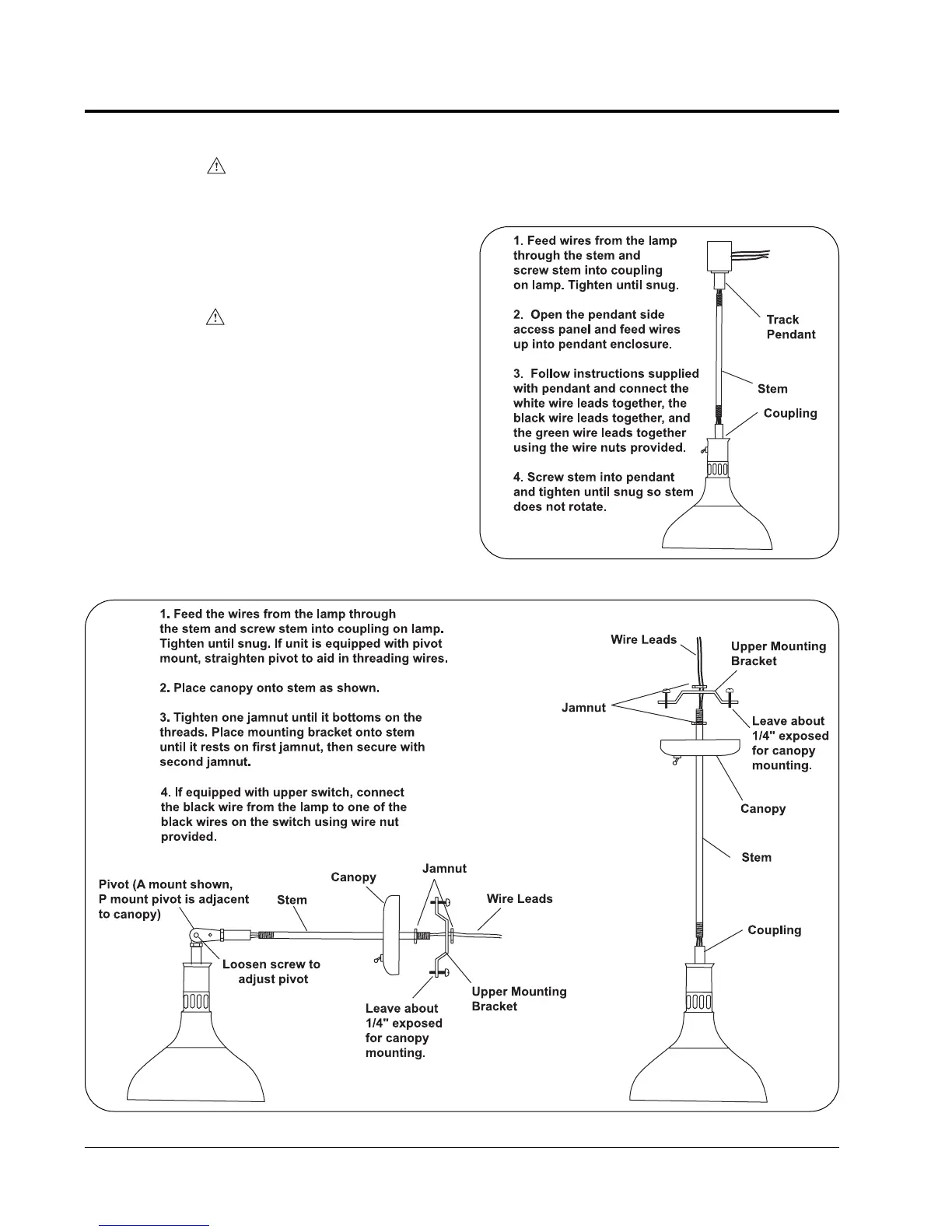

Figure 5. Assembly for A, S or P Mount
ASSEMBLY
Models with Mounting Designation C, CT, R and RT
are cord hung fixtures and are shipped fully
assembled and ready for installation.
All other models will require some assembly before
mounting. See the Figures 4 or 5 for your applicable
model.
Figure 4. Assembly for ST Mount
LOCATION (continued)
CAUTION
For safe and proper operation the maximum
capacity of Power-Trac is 20A per circuit. Check
the fuses and circuits carefully before installing.
20A maximum incudes all lights and appliances
connected to the circuit. 120 volt only, maximum
1920 watts per any length track.
CAUTION
For safe and proper operation on units not
equipped with Hatco supplied switch (N-no
switch), a qualified electrician must choose an
appropriate switch for the application based on
amperage and inrush rating of the switch.
NOTE: If shade comes equipped with plastic nut
and nipple in stem mounting hole, both nut and
nipple must be removed before installing stem to
shade.
