OPERATION
Top Heat
I/O (on/off) Switch
Bottom Heat
I/O (on/off) Switch
Color Control

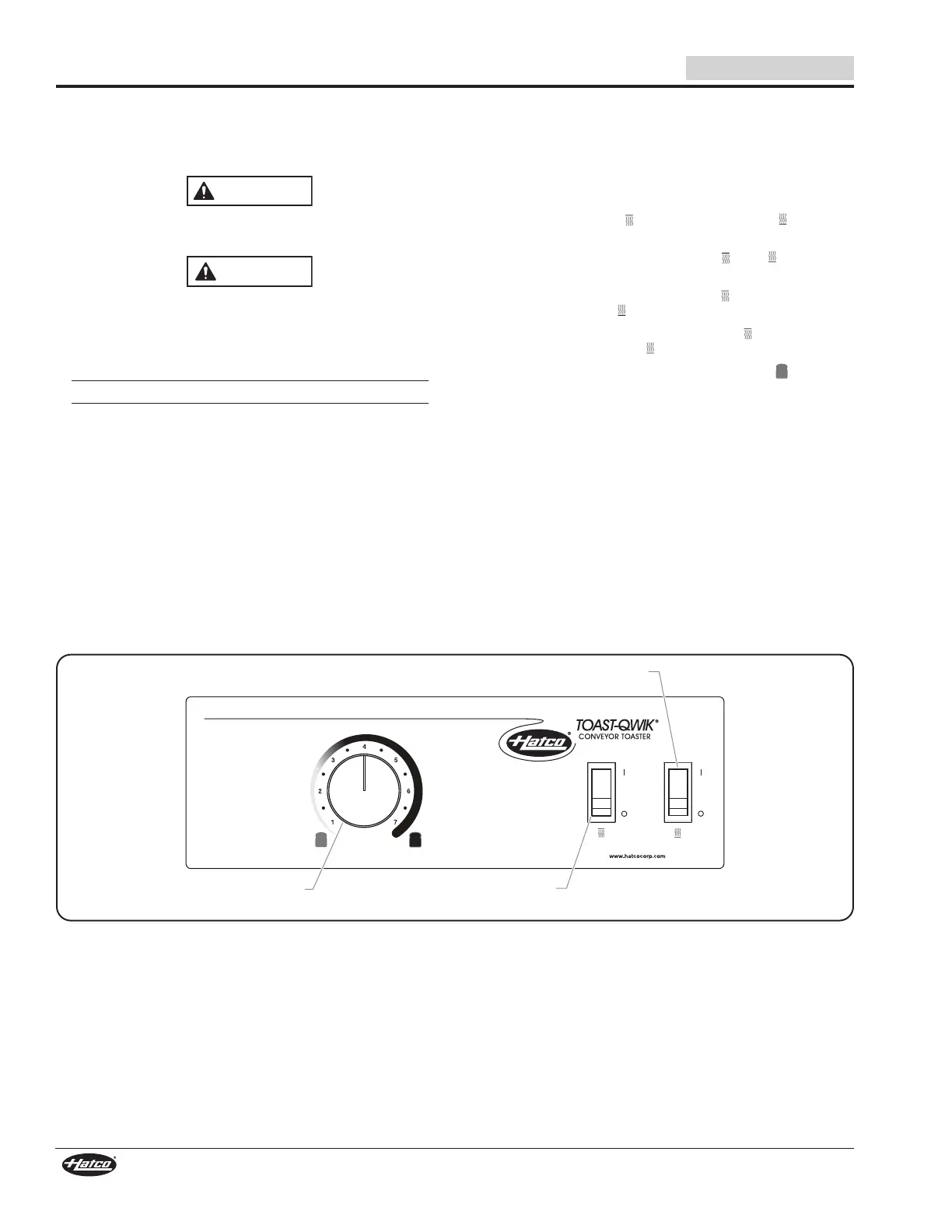

Control Panel – TQ-10 Series
General
Toast-Qwik
®
Conveyor Toasters are designed for ease of
operation. To operate the toaster, perform the appropriate
procedure in this section.
WARNING
Read all safety messages in the IMPORTANT SAFETY
INFORMATION section before operating this equipment.
CAUTION
BURN HAZARD:
• Some exterior surfaces on unit will get hot. Use caution
when touching these areas.
• Do not remove crumb tray for cleaning until toaster is
cool.
Always operate toaster with crumb tray installed.
Toasting of coated or buttered products such as garlic
bread, cheese sandwiches, and sweet rolls is NOT
recommended. Residue will reduce toaster performance
and could ignite inside toaster. Using toaster with food
products listed above will void unit warranty.
ColorGuard System
All TQ-400, -800, -1200, and -1800 series toasters use a
patented ColorGuard Sensing System that monitors and
automatically adjust conveyor speed during high usage
periods to assure toast color uniformity.
NOTE: The ColorGuard Sensing System is inoperable for
approximately ten minutes after any heat adjustments
are made.
Operating Model TQ-10
1. Plug the unit into a properly grounded electrical receptacle
of the correct voltage, size, and plug configuration. See the
SPECIFICATIONS section for details.
2. Move the feed ramp to the desired position. Refer to
“Adjusting the Toast Feed Ramp” in this section for details.
3. Move the Top Heat ( ) and/or Bottom Heat ( ) switches
to the I (on) position.
• For two-sided toasting, place the and switches in
the I (on) position.
• For top-sided toasting, place the switch in the I (on)
position and the switch in the O (off) position.
• For bottom-sided toasting, place the switch in the O
(off) position and the switch in the I (on) position.
4. Turn the Color Control to the lowest position ( ) while the
unit heats up.
NOTE: Allow approximately 15 to 20 minutes for a warm-up period.
5. After warm-up period, set the Color Control to the medium
position and toast two slices of bread product then re-
adjust the Color Control to the desired setting.
NOTE: To toast moist products such as English muffins, rye
bread, or whole wheat, slow the conveyor by turning the
Color Control knob to a darker setting (clockwise).
