HATO HT 600 - Page 9

9
Sleeve - 1001d x1
Split pin - 1002d x1
Disengagement - 1017d x1
flat bar L - 1013d x1
flat bar - 1014d x1
Nut - 1003d x2
Bolt - 1004d x2
Screw - 1008d x4
1021d x1
1022d x1
1005d x1

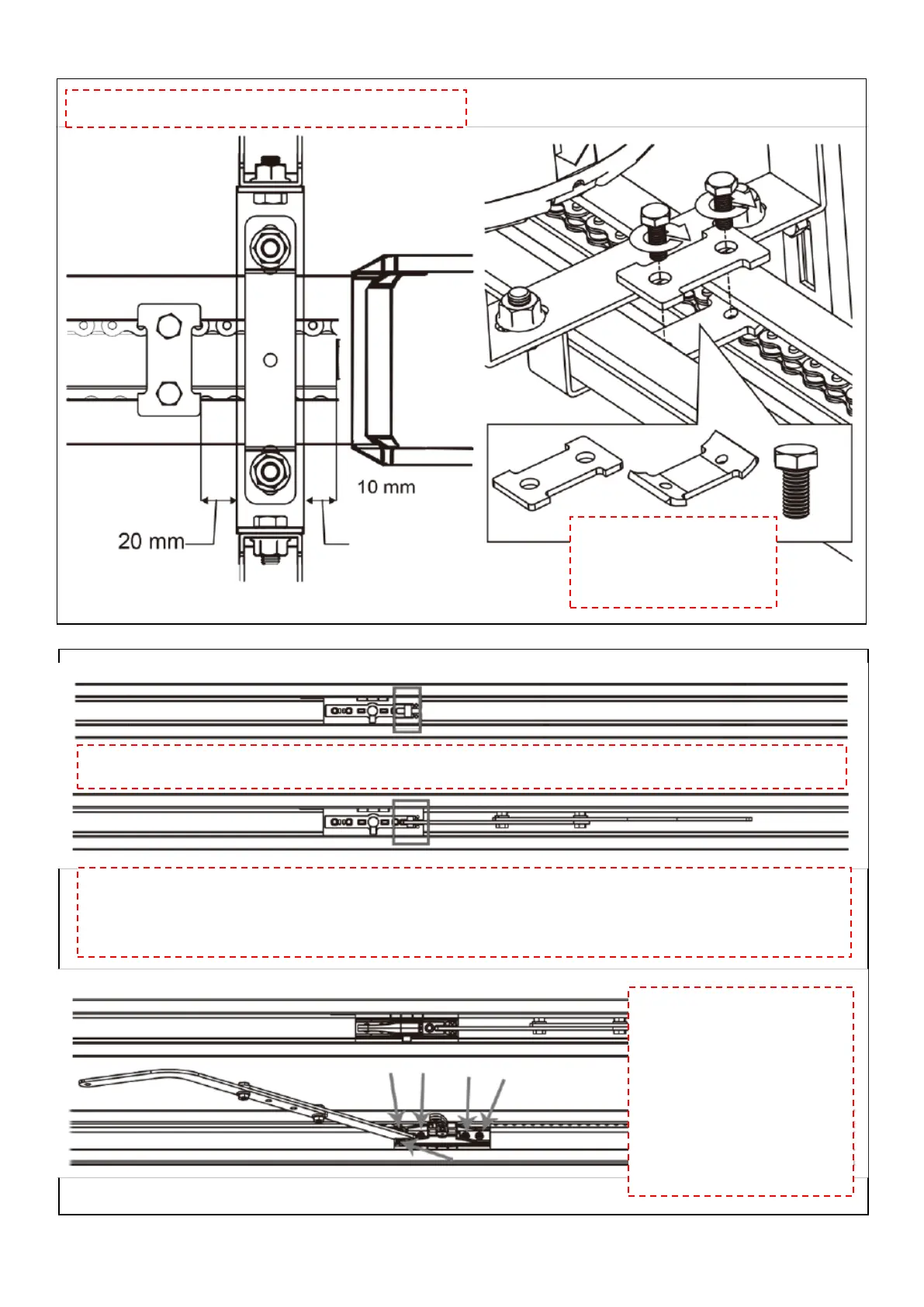

Installation of the maximum opening limiter
Connect the flat bar L 1013d with desengagement 1017d with metal lock 1001d i 1002d
If the length of the L 1013d flat bar is too short, it can be extended with a 1014d flat bar.
An example on the next page.
Use bolts and nuts (1003d and 1004d)
