5.3.2. Changing engine oil,
renewing oil filter
The engine must be stopped, and should stand
on a flat, level surface.
Drain the engine oil only when it is warm.
For oil drain plug, see Chapter 2.
Risk of scalding from hot oil.
Catch waste oil and dispase acc. to
environmental regulations.

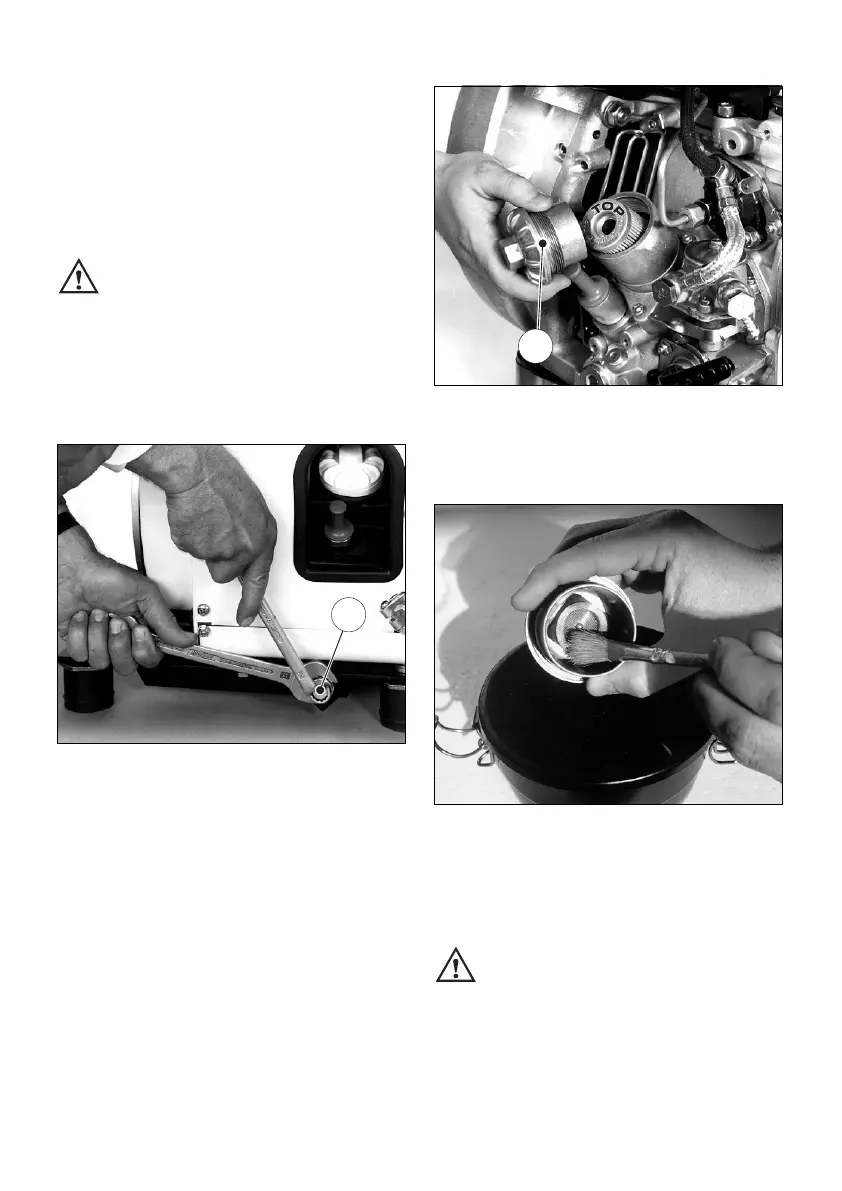

– Unscrew the oil drain plug and allow all the oil
to drain out.
Fully encapsulated engines:
35
When unscrewing oil drain plug „1“, make sure
that the drain tube is not loosened. Prevent it
from turning if necessary with an open-ended
wrench of the correct size.
– Clean the oil drain plug and attach a new seal.
Insert and tighten the plug.
36
– Renew the replaceable lubricating oil filter ele-
ment.
37
– Clean sieve bottom carefully in order not to
bend the netting.
Wipe out cap screw or blow it out with com-
pressed air.
Persons handling compressed air must
wear protective goggles.
Important !
Note the „TOP“ mark on the oil filter. Fig. 36
