Transport, assembly and commissioning 2G40, 2G40 H
30
HATZ
Operator’s Manual
CAUTION
Danger of later engine damage.
▪ Operating the engine with an oil level below the min. mark
or above the max. mark can lead to engine damage.
▪ When checking the oil level, the engine must be horizontal
and have been switched off for a few minutes.

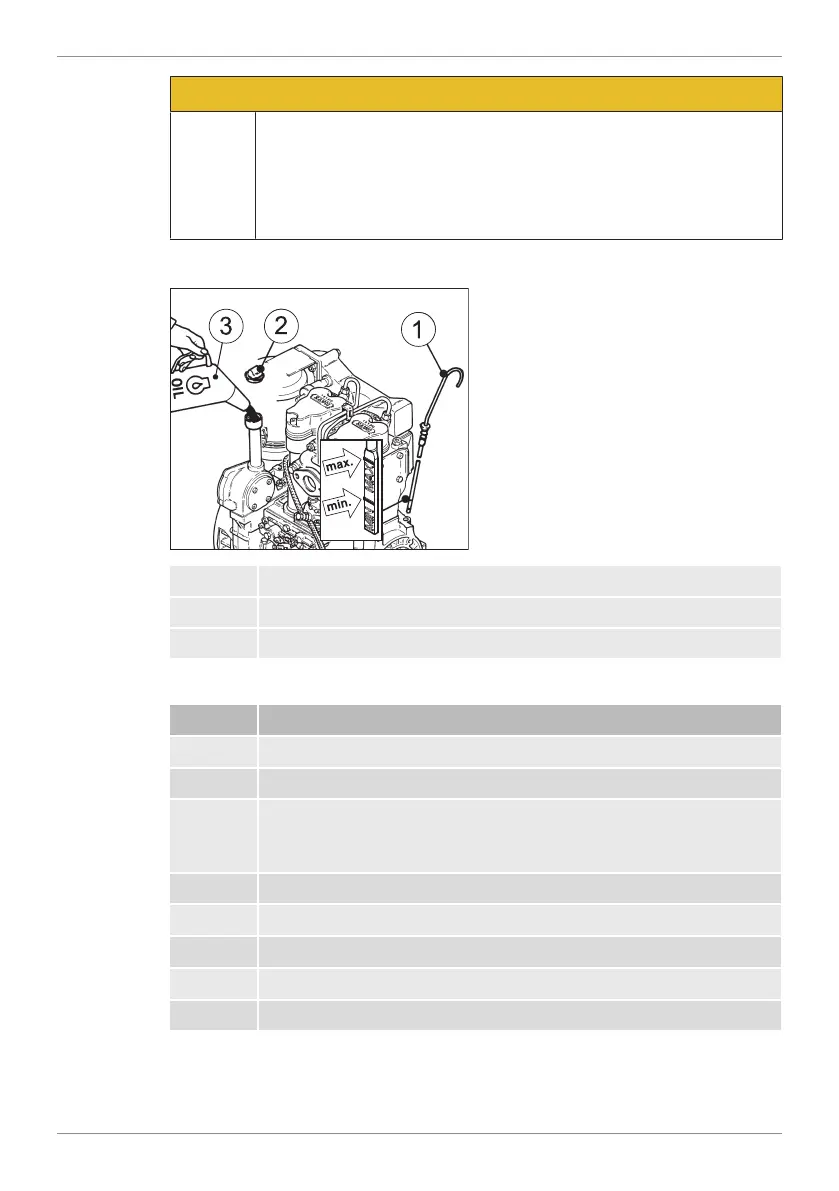

Overview
1 Dipstick
2 Oil filler plug
3 Oil refilling container
Procedure
Step Activity
1 Pull out the dipstick (1) and clean it.
2 Unscrew the oil filler plug (2).
3 Fill engine oil. For the specification and viscosity, see chapter
4.4 Engine oil, page 22. See chapter 4.1 Engine information and
filling quantities, page 20 for the engine oil capacity.
4 Reinsert the dipstick.
5 Pull out the dipstick and check the oil level.
6 If required, top up engine oil to the max. mark.
7 Reinsert the dipstick.
8 Screw in the oil filler plug.
