2G40, 2G40 H Transport, assembly and commissioning
HATZ
31Operator’s Manual
6.5 Filling the oil bath air filter (option)

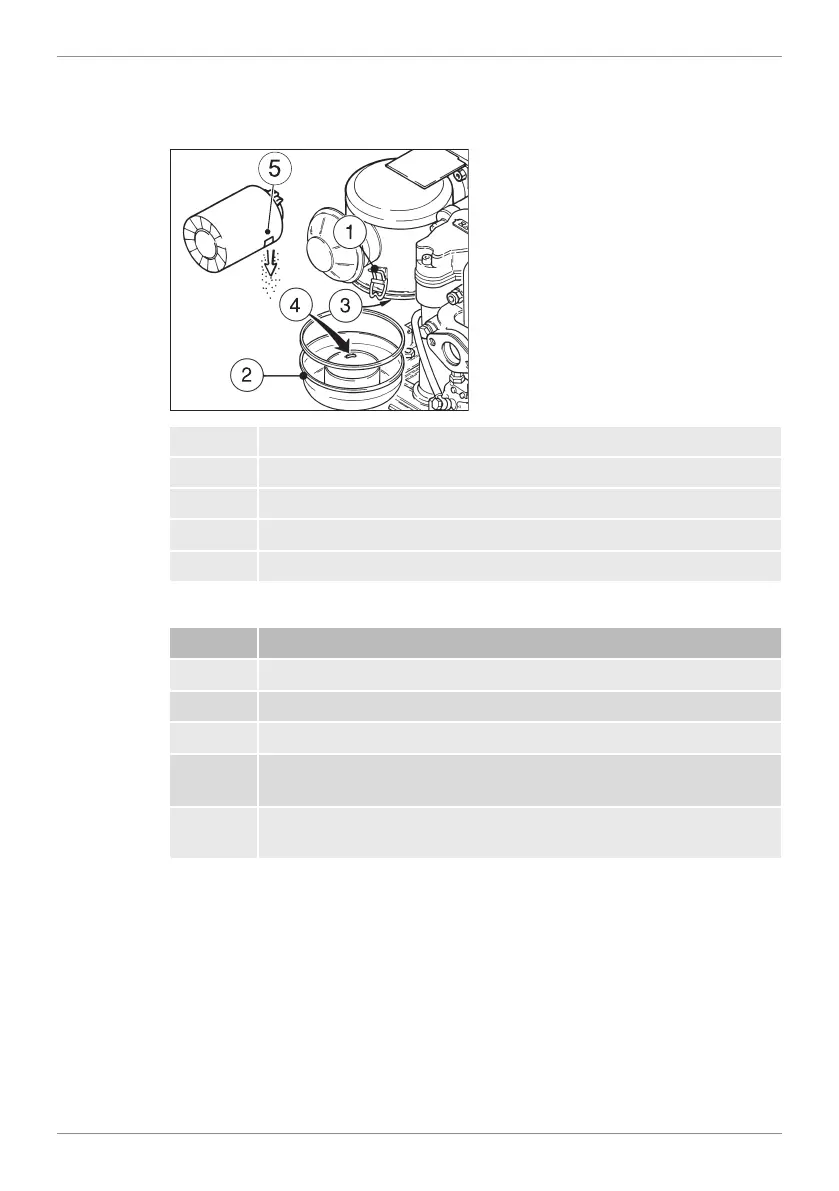

Overview
1 Clamp fastener (2x opposing)
2 Oil container
3 Seal ring
4 Level mark
5 Dust outlet opening on the cyclone precleaner (option)
Procedure
Step Activity
1 Release the clamp fasteners (1).
2 Remove the oil container (2).
3 Fill the oil container with engine oil up to the level mark (4).
4 Mount the oil container, ensuring that the gasket (3) is properly
positioned and the clamp fasteners (1) are correctly fastened.
5 When the cyclone precleaner is attached, ensure that the dust
outlet opening (5) is properly positioned.
