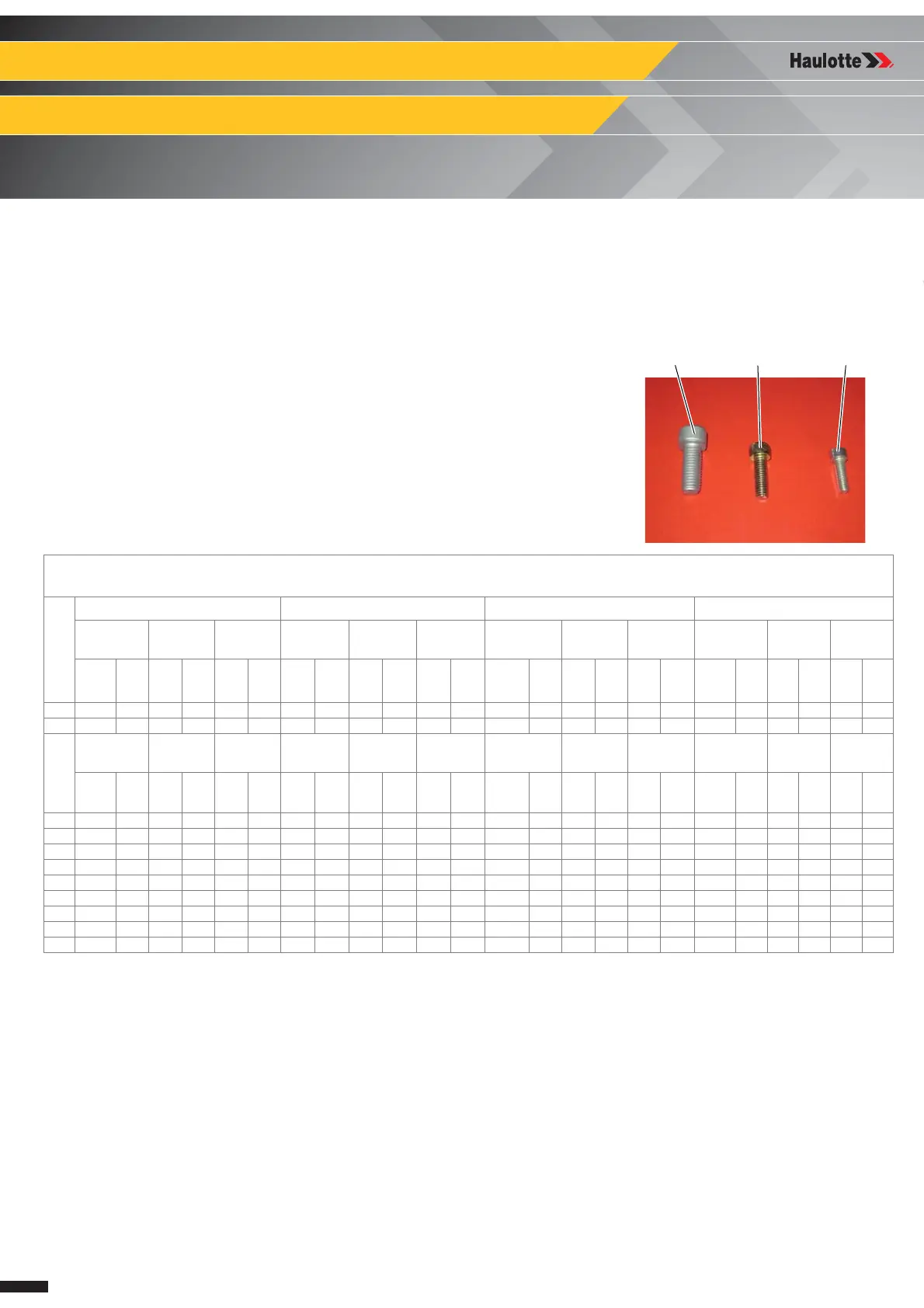

1 - Metric torque chart
For screws HAULOTTE®, use columns ( A ), ( B ) and ( C ) :
• Screw ( 1 ) grey dull dry, use colums ( A )
• Screw ( 1 ) grey dull greasy, use column ( B )
• Screw ( 2 ) yellow dry, use column ( C )
• Screw ( 2 ) yellow greasy, use column ( B )
• Screw ( 3 ) grey bright dry, use column C
• Screw ( 3 ) grey bright greasy, use column ( B )
Metric fastener torque chart
This charts is to be used as a guide only unless noted elsewhere in this manual
Size (mm)
Class 4.6 Class 8.8 Class 12.9
Dull dry
(A)
Lubed
(B)
Yellow
dry (C)
Dull dry
(A)
Lubed (B)
Yellow
dry (C)
Dull dry (A)
Lubed
(B)
Yellow
dry (C)
Dull dry Lubed
Yellow
dry
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
in-lbs
Nm
5 17.7 2 16 1.8 21 2.4 44 5 41 4.63 54 6.18 68 7.7 58 6.63 78 8.84 79 9 68 7.75 91 10.3
6 30 3.4 19 3.05 36 4.07 80 9.1 69 7.87 93 10.5 118 13.4 100 11.3 132 15 139 15.7 116 13.2 155 17.6
Size (mm)
Dull dry Lubed
Yellow
dry
Dull dry Lubed Dry Dull dry Lubed Dry Dull dry Lubed Dry
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
ft-lbs
Nm
8
5.9 8 5.4 7.41 7.2 9.88 16.2 22 14 19.1 18.8 25.5 23.6 32 20.1 27.3 26.9 36.5 28 38 23.6 32 31.4 42.6
10
12.17 16.5 10.8 14.7 14.4 19.6 32.45 44 27.9 37.8 37.2 50.5 47.2 64 39.9 54.1 53.2 72.2 55 75 46.7 63.3 62.3 84.4
12
20.65 28 19.8 25.6 25.1 34.1 56 76 48.6 66 64.9 88 81.8 111 69.7 94.5 92.2 125 95.9 130 81 110 108 147
14
33.19 45 30.1 40.8 40 54.3 89.24 121 77.4 105 103 140 131.28 178 110 150 147 200 154.15 209 129 175 172 234
16
52.37 71 46.9 63.6 62.5 84.8 139.4 189 125 170 166 226 205.04 278 173 235 230 313 239.7 325 202 274 269 365
18
72.28 98 64.5 87.5 86.2 117 192.5 261 171 233 229 311 283.2 384 238 323 317 430 331 449 278 377 371 503
20
102.5 139 91 124 121 165 272.9 370 243 330 325 441 401.2 544 337 458 450 610 469.8 637 394 535 525 713
22
140.87 191 124 169 166 225 345.4 509 331 450 442 600 551.7 748 458 622 612 830 645.3 875 536 727 715 970
24
176.27 239 157 214 210 285 469.8 637 420 570 562 762 690.3 936 583 791 778 1055 807.6 1095 682 925 909 1233
12 3
