Hawking HWREN1 User Manual

12

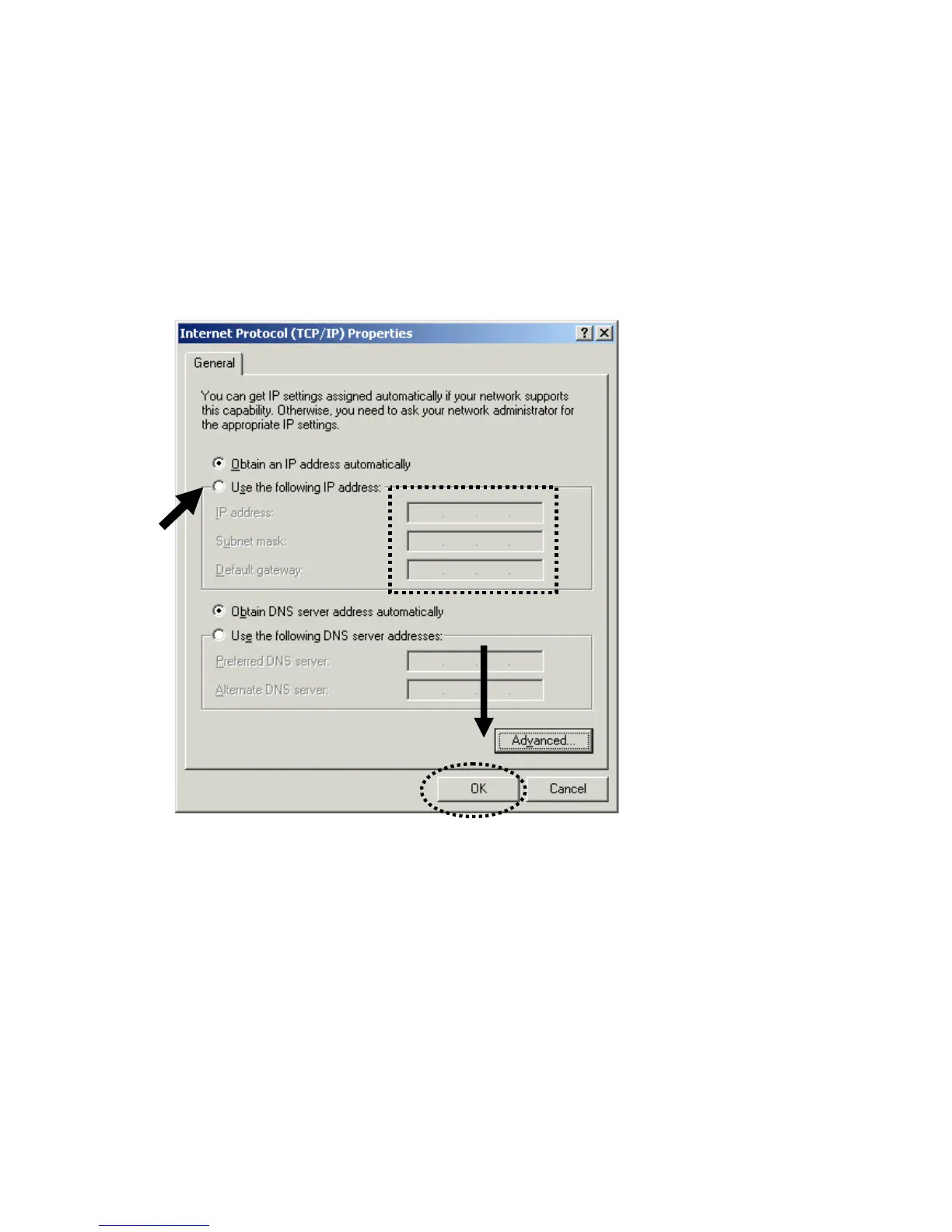

2. Select ‘Use the following IP address’, then input the following settings
in respective field:
IP address: 192.168.1.2
Subnet Mask: 255.255.255.0
click ‘OK’ when finish.
2-2-3 Windows XP IP address setup
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Double-click Network and Internet
Connections icon, click Network Connections, and then double-click
Local Area Connection, Local Area Connection Status window will
appear, and then click ‘Properties’

Hawking HWREN1 Specifications

General

Brand	Hawking
Model	HWREN1
Category	Extender
Language	English
