Page 4 of 12 SWIMCLEAR CARTRIDGE FILTER ISC2027 REV D
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
WWW.HAYWARD.COM
GENERAL INFORMATION
Your Hayward SwimClear
TM
cartridge filter combines superior water filtration with ease of operation and totally
corrosion-free construction. With filtration ratings to 9000 gallons (34 Kl) per hour, they are designed for continuous or
intermittent operation, for installation above or below the pool water line, for fresh or salt water swimming pools or spas.
SwimClear™ filters utilize multiple reusable, reinforced polyester filter cartridge elements to provide a high degree of
water clarity and long filter cycles with minimum care.

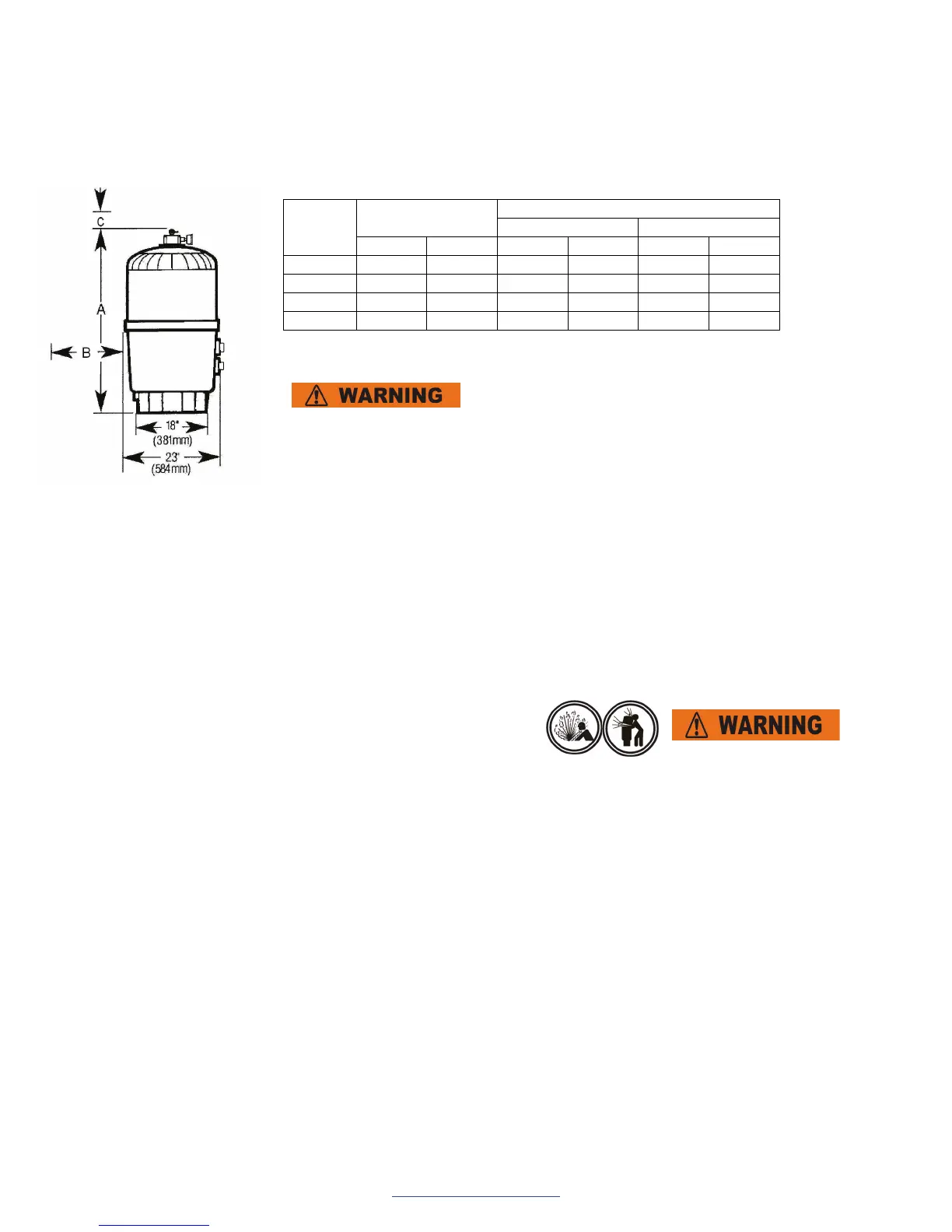

A
REQUIRED CLEARANCE
“B” SIDE “C” ABOVE
IN CM IN CM IN CM
C2020 32.5 83 18 46 15 38
C3020 34.5 88 18 46 16 41
C4020 40.5 103 18 46 18 46
C5020 46.5 118 18 46 22 56
INSTALLATION
This product should be installed and serviced only by a
qualified professional.
Only simple tools (screwdriver and wrenches), plus pipe sealant for plastic adapters,
are required to install and/or service the filter.
1. The filter system should be installed, not more than 6 feet above pool water level, or below the pool water
level, on a level concrete slab, very firm ground, or equivalent. Select a well drained area, one that does not
flood when it rains. Position the filter so that the piping connections, control valve and winter drain are
convenient and accessible for operation, service and winterizing.
2. Position filter so the tank can drain by gravity.
3. If practical, place pump and filter in the shade to shield it from continuous, direct heat from the sun.
4. Connect the pool suction plumbing between the skimmer, pool outlet and the pump.
5. Install the pool return plumbing.
6. If pressure gauge is not installed, apply Teflon tape to the gauge threads and carefully screw the gauge into the
gauge adapter assembly.
STARTING THE PUMP and FILTER SYSTEM
Before Starting the Pump
1. Verify the filter body clamp and spring nut assembly properly assembled, filter manual air relief body is in LOCK
position, and no filter components are missing, damaged or not genuine Hayward components.
2. Close filter drain.
3. Open all system valves to allow normal system operation.
4. Place the manual air relief valve in OPEN position.
Starting Pump
1. Stand at least 10 feet away from filter before starting pump. If water leakage appears at tank clamp, shut off system
pump before returning to filter to service leak.
2. Return to filter to close manual air relief valve only when a steady stream of water (not air or, air and water mix) is
discharged from the manual air relief valve.
