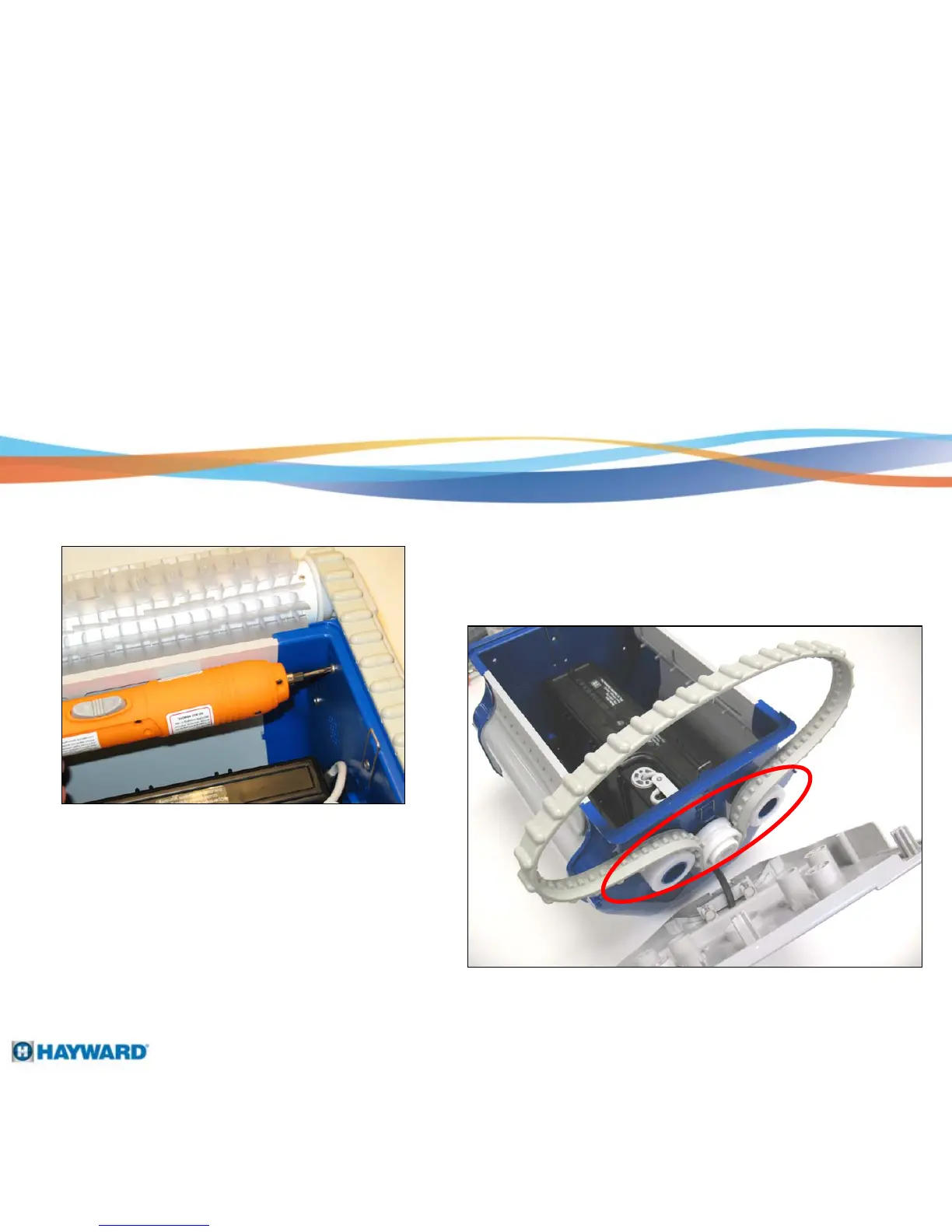

Screw removal, opposite side cover,
non-drive side.
Side cover removed
Track idler pulleys, (3). Note
this side does not have a keyed drive pulley
at the center pulley since it is opposite the
motor drive end. This pulley is simply
an idler pulley similar to the ones to the left
and right.
Drive Track & Idler Pulley Removal
Non-drive Side
Page 16
