Hayward Easy Temp User Manual

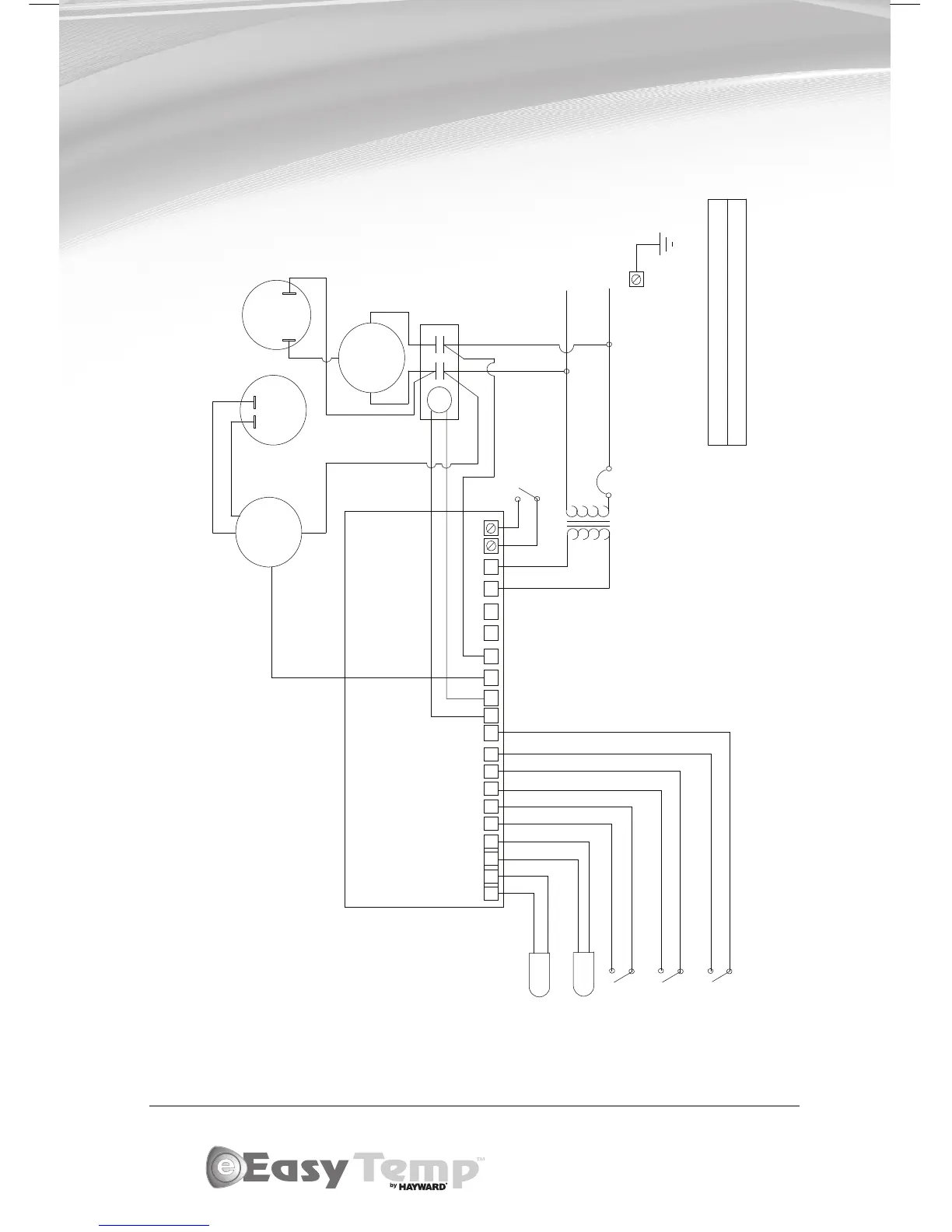

Wiring Diagram
12
Black
Blue
Yellow
Black
FAN
COMPRESSOR
C
R
S
Red Brown
Brown Brown
HPEC-003 Control Board
L1
L2
Black
Black
Light Blue
Light Blue Purple
Purple
Yellow
Yellow
Water sensor
Defrost sensor
High pressure switch
Closed = OK Opened = high pressure Low pressure switch Closed = OK Opened = low pressure Flow switch Closed = flow Opened = no flow
Orange (240 Vac)
or
Red (208 Vac)
24 Vac compressor
contactor
CAP
24 Vac transformer
Ground
Remote switch Pool (opened) Spa (closed)
P S
WS DS
HP
HP LP LP FLO FLO
HGD
H/C
FAN
FAN
COMPRESSOR
COMPRESSOR
24 VAC
208 / 230 Vac, 60 Hz 1 Phase
CAP
24 Vac
OWNER’S MANUAL

Hayward Easy Temp Specifications

General

Brand	Hayward
Model	Easy Temp
Category	Heat Pump
Language	English
