V. Installation instruction

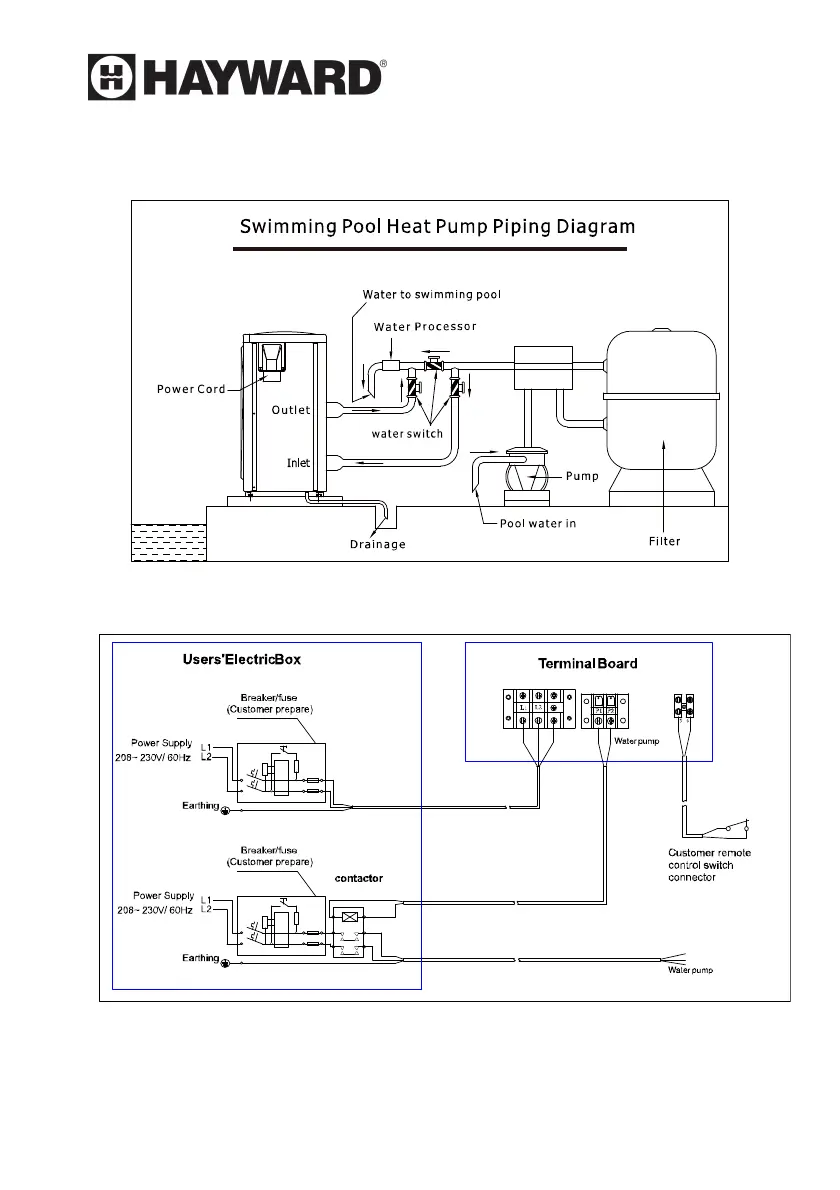

1. Drawing for water pipes connection.
（Notice：The drawing demonstration and layout of the pipes is only for reference.）
2. Electric Wiring Diagram
Note：The swimming pool heater must be grounded.
