6. APPENDIX

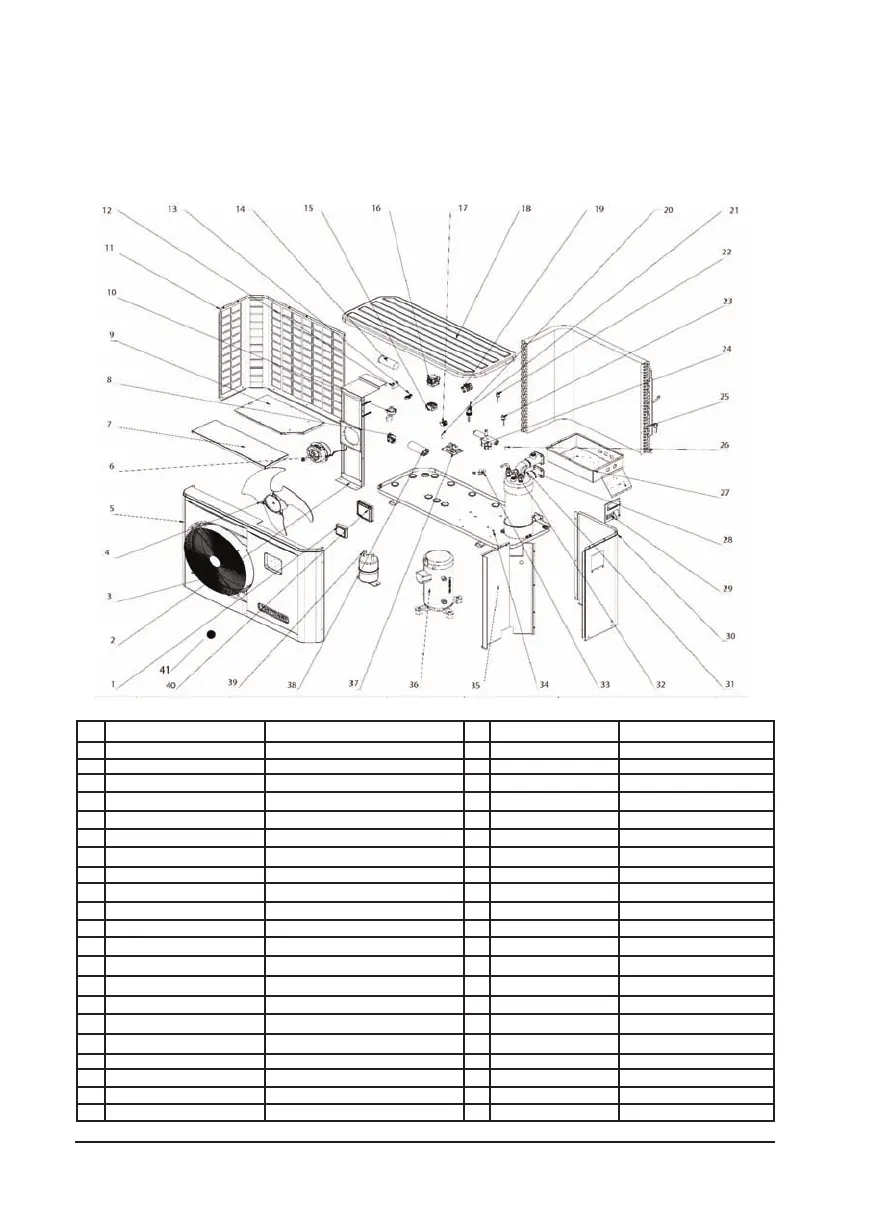

6.3 Exploded view and spare parts
SN Part Code Part Name SN Part Code Part Name
1 HPCX95005-31152 LCD Controller 21 HPCXWFS1931 Flow Switch
2 HPCX32009-21092 Fan Motor Brracket 22 HPCX2000-3603 High Pressure Switch
3 HPCX34006-21049 Fan Protection Grille 23 HPCX2001-3605 Low Pressure Switch
4 HPCX2000-2705 Fan Blade 24 HPCX2001-1491 4 Way Valve
5 HPCX32009-22015 Front Panel 25 HPCX35012-12001 Fin Coil
6 HPCX2001-3328 Fan Motor 26 HPCXTEM1930 Air Temp. Sensor
7 N/A Support Panel 27 N/A Electrical Box Cover
8 HPCX20000-37003 Transformer 28 HPCX32009-12013 PVC-Titanium Condenser
9 Electrical Box Cover 29 N/A Protection Cover
10 HPCX20000-14151 Electronic Expansion Valve 30 N/A Right Panel
11 N/A Back Panel 31 HPCXTEM1930 Water Outlet Sensor
12 HPCX2000-3508 Fan Motor Capacitor 32 HPCXTEM1930 Water Inlet Sensor
13 N/A Terminal Block 2 Connections33 HPCX3400-2203 Drain Connector
14 HPCX2000-3524
Compressor Capacitor
34 N/A Bottom Panel
15 HPCX20000-36035 Relay 35 N/A Center Wall
16 HPCX20000-36007 Compressor Contactor 36 HPCX20000-11053 Compressor
17 N/A Terminal Block 3 Connections37 HPCX95005-31145 PCB Board
18 N/A Top Cover 38 HPCX2000-3510 Compressor Capacitor
19 N/A Terminal Block 3 Connections39 HPCX3500-1401 Liquid Tank
20 HPCXTEM1930 Coil Temperture Sensor 40 HPCX20000-22068 Waterproof Cover
41 HPCX2000-1345 Drain Plug
