Optional Valve Actuators
For optional actuators used with the OmniLogic—note that the internal cams in the actuator may also have to be adjusted depending on the way the actuator is
mounted on the valve and the desired valve action.
Plumbing
Pool/Spa System Configuration

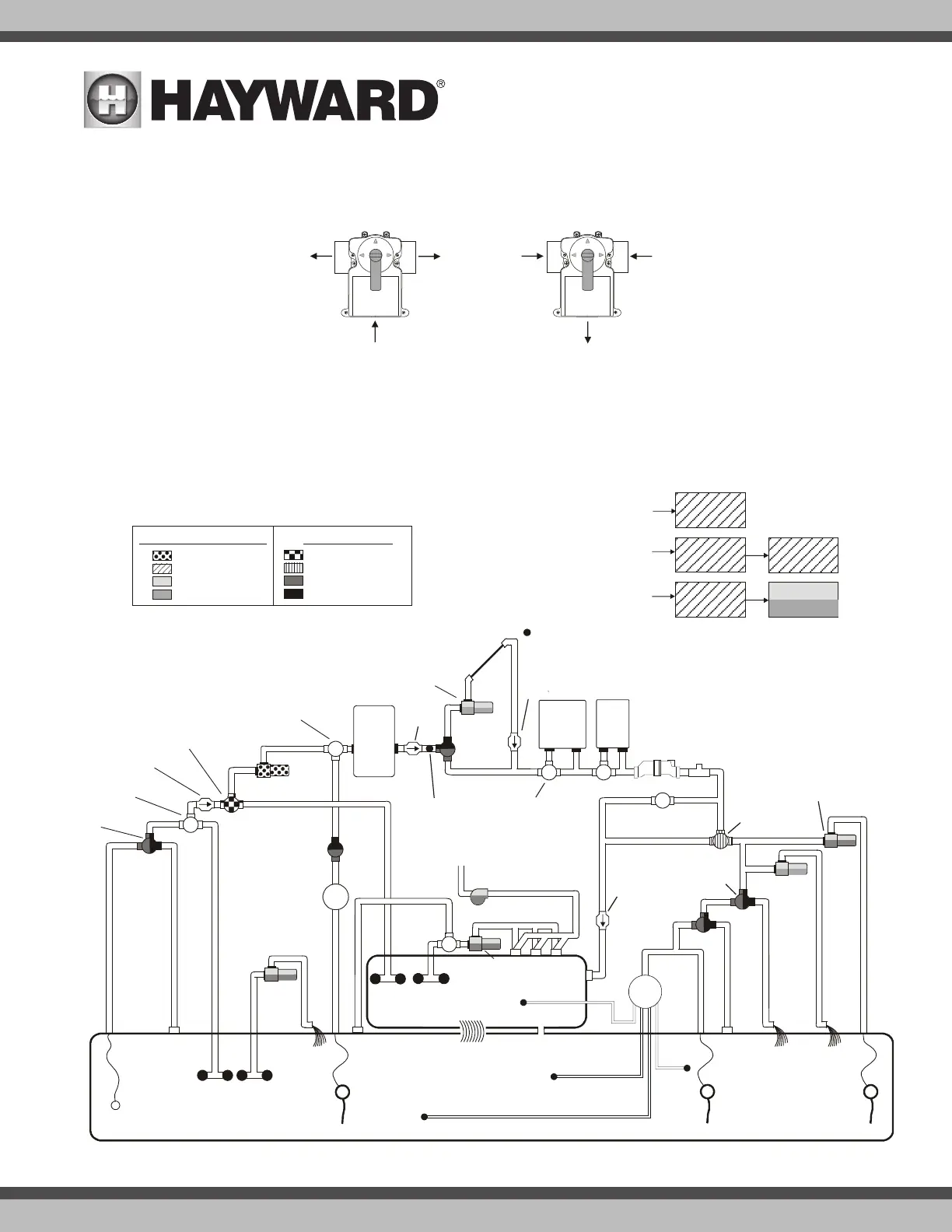

These systems use a single filter pump and filter. Pool or spa operation is controlled by two 3-way valves (suction and return). Refer to the diagram below.
RETURN
SUCTION
OUT
(Common)
IN
(Common)
OUT
IN
OUT
IN
FILTER
SOLAR BOOST
PUMP
SOLAR
VALVE
HEATER
HEAT
PUMP
HEATER
BYPASS
VALVE
(manual)
CELL
FLOW
SWITCH
CHECK
VALVE
POOL SWEEP
BOOST PUMP
WATER
FEATURE
PUMP
POOL/SPA
RETURN
VALVE
WATER
FEATURE
VALVE
SPA
SPA JET
PUMP
SPA
BLOWER
POOL/SPA SUCTION
VALVE
CHECK VALVE
POOL VACUUM
VALVE
MANUAL
VALVE
MANUAL
VALVE
MANUAL
VALVE
ENERGY
FILTER
TWO-WAY
VALVE
SKIM
POP-UP
SPILLOVER
POP-UP
OVERFLOW
POP-UP
RETURN
JET
IN-FLOOR
CLEANER
VALVE
WATER
FEATURE
PUMP
WATER
FEATURE
POP-UP
MAIN
DRAIN
ENERGY
SAVER
PRESSURE
CLEANER
NON-BOOST
PRESSURE
CLEANER
PRESSURE
CLEANER
SUCTION
CLEANER
SOLAR
TEMPERATURE
SENSOR
POOL
FILTER
PUMP
High Voltage Relays
Valve Outputs
Filter Pump
Lights
Aux 1
Aux 2
Pool/Spa Suction
Pool/Spa Return
Valve 3
Valve 4
TRANSFORMER
HIGH VOLTAGE
LIGHTS
LOW VOLTAGE
LIGHTS
FIBER OPTIC
LIGHT SOURCE
COLOR WHEEL
ISOLATED
WATER
FEATURE
PUMP
POOL/SPA
TEMPERATURE
SENSOR
CHECK
VALVE
(prevents draining
of raised spas)
CHECK
VALVE
(prevents draining
of raised spas)
