High Voltage Wiring

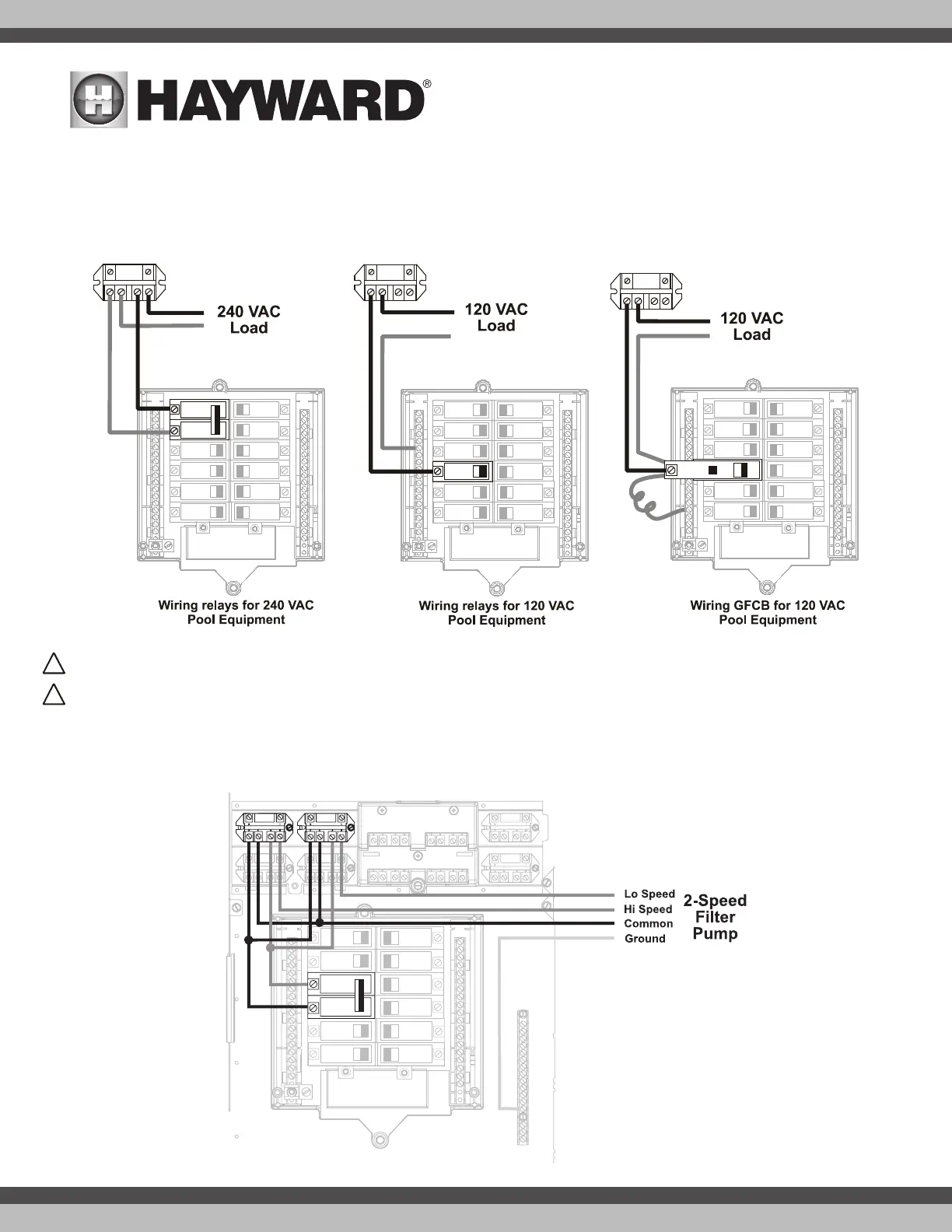

High Voltage Relays - (120/240V) Pool Equipment
All OmniLogic relays are double pole (they make/break both “legs” of 240V circuits) and are rated at 3HP/30A at 240V (1½HP/30A at 120V). Refer to the
diagram below for typical relay wiring. Record all connections using the table on page 12.
WARNING: Do not use the OmniLogic to control an automatic pool cover. Swimmers may become entrapped underneath the cover.
WARNING: Do not use the OmniLogic to control fire pits or fire features.
Two speed filter pump
Requires two relays for proper operation of both speeds. NOTE: When selecting relays for two speed operation, note that both relays must be within the Relay
Bank (HLRELAYBANK) or neither relay should be within the Relay Bank. The diagram below shows the pump connected to relays outside of the Relay Bank.
!
!
