Electrical Wiring

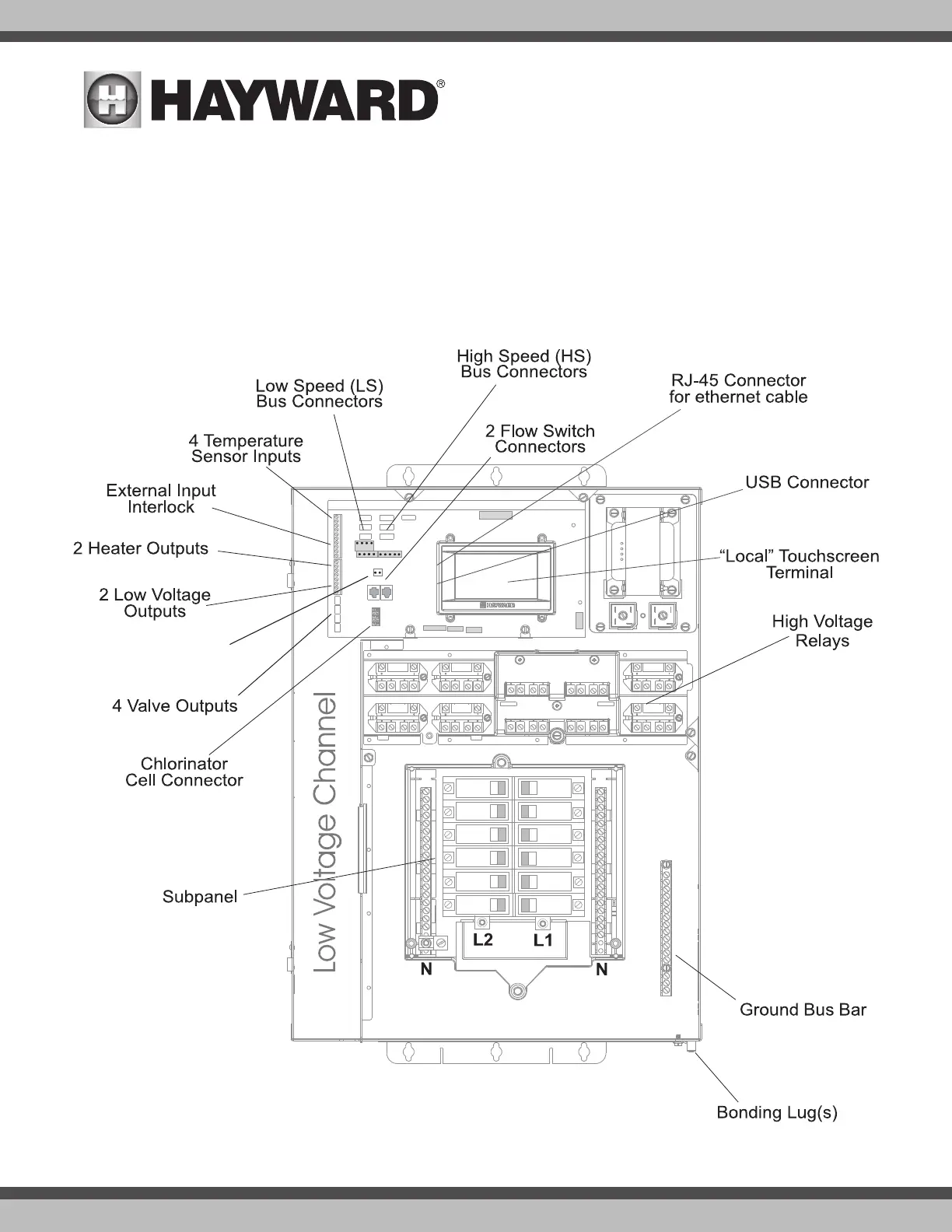

The OmniLogic requires both high and low voltage connections. Low voltage connections will be made to actuators, sensors, remote keypad, etc. High voltage
connections will be made to pumps, lights, etc., as well as providing direct input power to the Control Center. Always:
-Ensure that Power is disconnected prior to performing any wiring
-Follow all local and NEC (CEC if applicable) codes
-Use copper conductors only
-Remove power to the OmniLogic subpanel before removing the deadfront
