USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
2
Features
The standard Hayward HLBASE OmniLogic offers the following features:
• control up to 4 (expandable to 10) high voltage (120/240V) relays to control pumps, pool lights, yard lights, water features, chemical dispensers and more
• control up to 4 (expandable to 8) automatic valve actuators including pool and spa valves, water feature valves, cleaner valves and more
• control up to 4 (expandable to 8) heaters or low voltage equipment including gas heaters, electric heat pumps, and chillers as well as various low voltage
devices
• controls up to 16 compatible variable speed pumps and Smart Heaters without the use of a relay
• inputs for up to 4 temperature sensors or external input devices (expandable to 8)
• ethernet port for wired connection to the home’s router/access point allowing communication to devices on the home network or on the web
• 100A electrical subpanel that can accommodate up to 12 circuit breakers
• connection for Hayward TurboCell used to generate chlorine
• connection for flow switch used to detect water flow
• input for ORP and pH sensing (HL-CHEM)
• connection for Expansion Panel if more than one OmniLogic is required
Optional accessories (page 1) can expand the functionality of the HLBASE. Determine your needs and select the necessary HLBASE accessories before you
begin the installation.

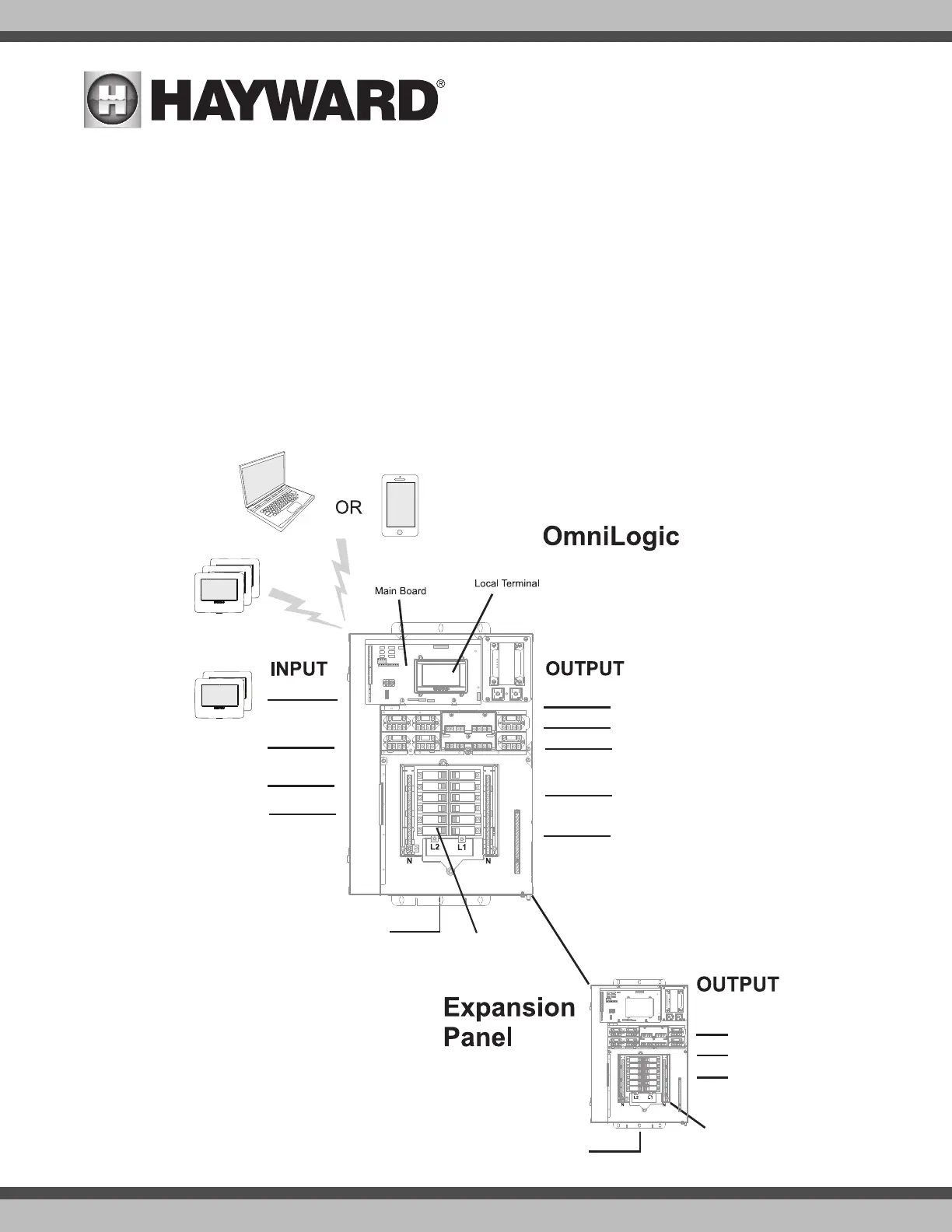

Optional pH and ORP
up to 10 120/240V Relays (using HLRELAYBANK)
up to 8 24V Actuators (using HLIOEXPAND adds 4)
up to 8 Heaters and Low
Voltage devices (using HLIOEXPAND)
Optional HLIOEXPAND adds
4 Temperature Sensors and
4 External Input devices
Optional Wireless
Remote Terminals
Optional Wired
Remote Terminals
Flow Switch
Computers
Android and IOS
Mobile devices
optional Chlorinator Cell
up to 10 120/240V Relays
up to 8 24V Actuators
Chlorinator Cell
Circuit Breaker
Subpanel
Circuit Breaker
Subpanel
240 VAC
Power
240 VAC
Power
up to 16 compatible variable speed pumps
