Hayward Perflex EC30 - Page 22

Page 6 of 12 IS65ING Rev A
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Pomona, CA Clemmons, NC Nashville, TN
www.haywardpool.com

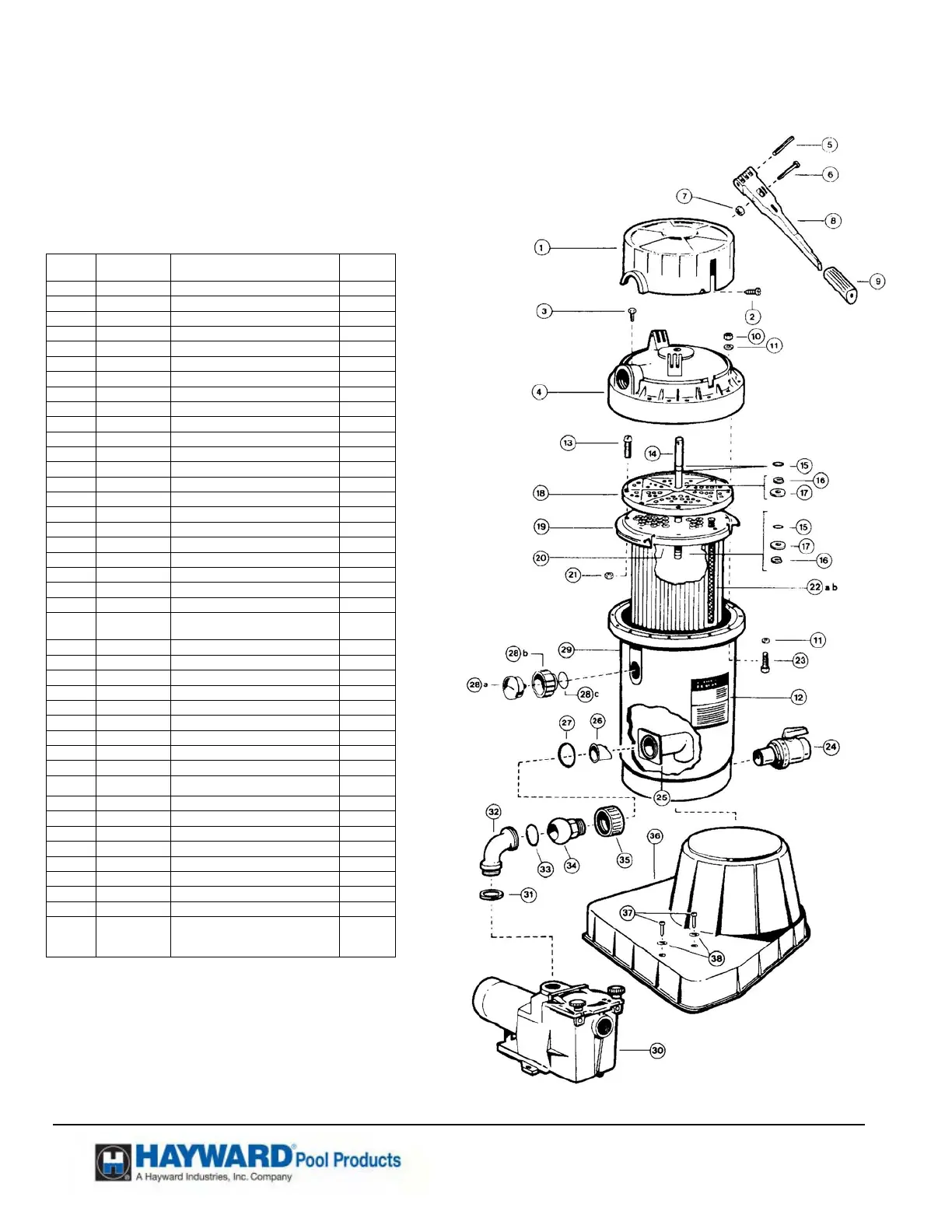

REF.
NO.
PART NO. DESCRIPTION
NO.
REQ'D.
1 ECX11206 Bump Mechanism Cover 1
2 ECX1019 Cover Screw (1981 and Prior) 2
3 ECX1322A Vent Valve With O-Ring 1
4 ECX11194AT Filter Head with Vent Valve 1
5 ECX100Z9 Roll Pin 1
6 ECX4236A Bump Shoulder bolt Kit 1
7 Nut in bolt Kit
8 ECX1040 Bump Handle Assy w/pins, bolt & nut 1
9 ECX1037B Bump Handle Grip 1
10 ECX1642A Tank Bolt Set (Screw and Nut) 15
11 ECX1077 ¼” x 1 1/16” OD Flat washer 30
12 ECX1230 Decal-Operation Instructions 1
13 SPX1500NYA Tube Sheet Screw 16
14 ECX1110 Bump Shaft 1
15 ECX9611246 O-ring 3
16 ECX1014 Retainer 2
17 ECX1011 Thrust Washer 2
ECX1014A Shaft kit (Includes 15,16,17) 1
18 ECX1104 Tube Sheet Top 1
19 ECX1105 Diaphragm Gasket 1
20 ECX1103 Tube Sheet Bottom 1
21 SPX1500Y1 Tube Sheet Nut 16
22a
22b
ECX1031
ECX1032
Flex-Tube Assembly 13 3/8” (EC65)
Flex-Tube Assembly 16 1/4” (EC75)
120
120
23 ECX1642215 ¼”-20 x 1 ¾” Hex head Bolt 16
24 SP0723 Ball-Type Drain Valve with Nipple 1
25 ECX4220A Elbow Assy w/ Check Valve 1
26 ECX4077B1 Check Valve 1
27 SPX1500W O-ring 1
28a ECX27091 Pressure Gauge 1
28b ECX12866 Gauge Port Adapter 1
28c ECX1287 Adapter O-ring 1
29 ECX11184AT Filter Body w/Internal Elbow 1
30
Super, Super II™
, or Tri-Star™ pump
1
31 SPX1485C Gasket 1
32 SPX1485B Pump Discharge Elbow 1
33 SPX1425Z6 0-Ring 1
34 SPX1485A Union Ball End 1
35 SPX1480C Union Nut 1
36 ECX1263 Platform Base 1
37 ECX1275 Pump Mounting Screw 2
38 EC1161 Washer 2
ECX12515
ECX125175
Flex-Tube Nest (EC65)
Flex Tube Nest (EC75)
(Includes. 13thru 22)
1
