8
700 mm 700 mm 700 mm
Place the heat pump outdoors and away from any enclosed technical
space.
Placed in the shade or near an obstacle, the minimum required
distances mentioned below must be respected in order to avoid any risk
of air recirculation and a deficiency in the unit's overall performance.
3. INSTALLATION AND CONNECTION

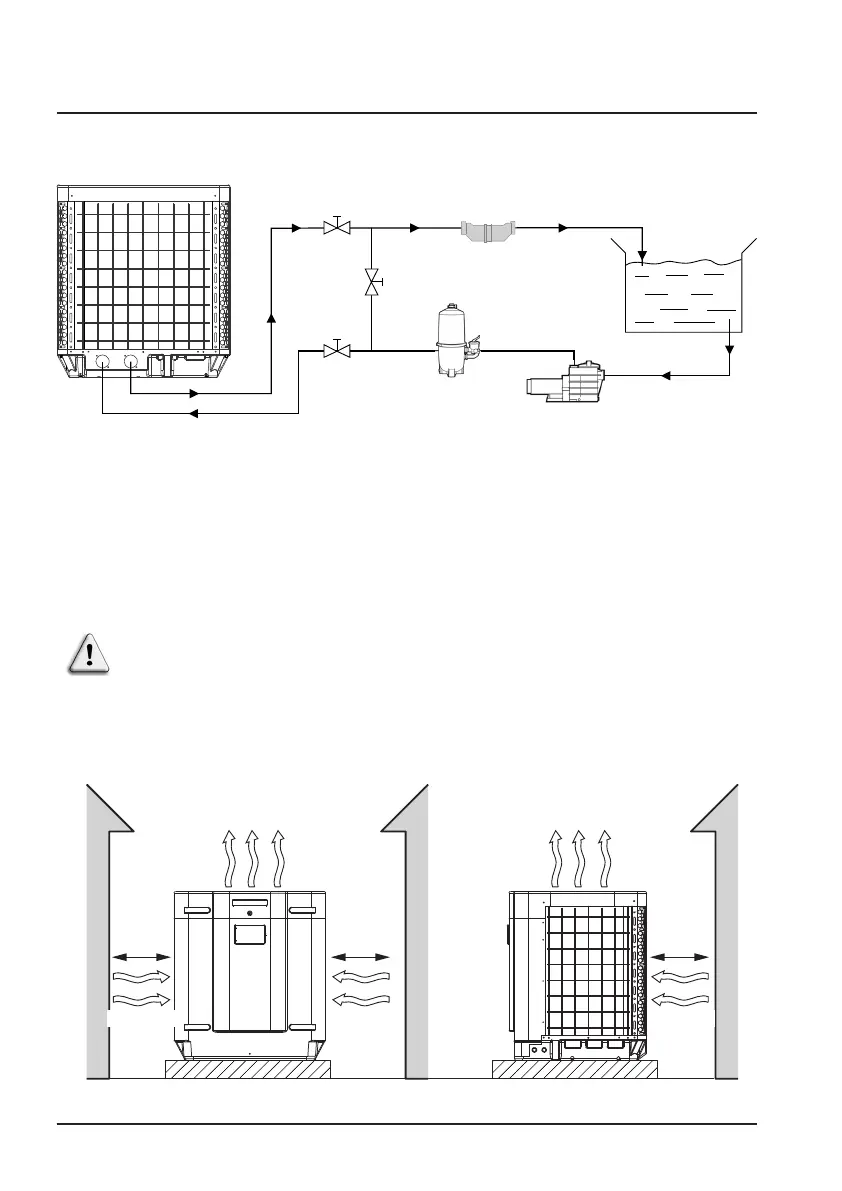

3.1 Functional Diagram
Water Inlet
valve
Water outlet
valve
Filter
By-pass
valve
Pool
Water outlet
Chlorinator cell
(or other treatment)
Pump filtration
Note: The swimming pool heat pump unit is sold without any treatment or
filtration equipment. The components presented in the diagram are
spare parts to be supplied by the installer.
3.2 Heat pump unit
Unit: mm
Air inlet Air inlet Air inlet
Air outletAir outlet
