Installation
Installation must be performed in accordance with Local and NEC codes.
Preparing Pool/Spa Water
Refer to page 3 for recommended chemical levels. The pool's chemistry must be balanced BEFORE
activating the SwimPure Plus. NOTE: If the pool does not have new water, add 1 quart (1 liter) of
metal remover and 1 quart (1 liter) of non-copper based algaecide to the pool, per manufacturer's
instructions. This ensures a quick, troublefree transfer to the SwimPure Plus system.
Mounting the SwimPure Plus Control
The SwimPure Plus is contained in a raintight enclosure that is suitable for outdoor mounting. The
control must be mounted a minimum of 5 ft. (2 meters) horizontal distance (or more, if local codes
require) from the pool/spa.
The control is designed to mount vertically on a flat surface with the knockouts facing downward.
Because the enclosure also acts as a heat sink (disperses heat from inside the box), it is important
not to block the four sides of the control. Do not mount SwimPure Plus inside a panel or tight
enclosed area.

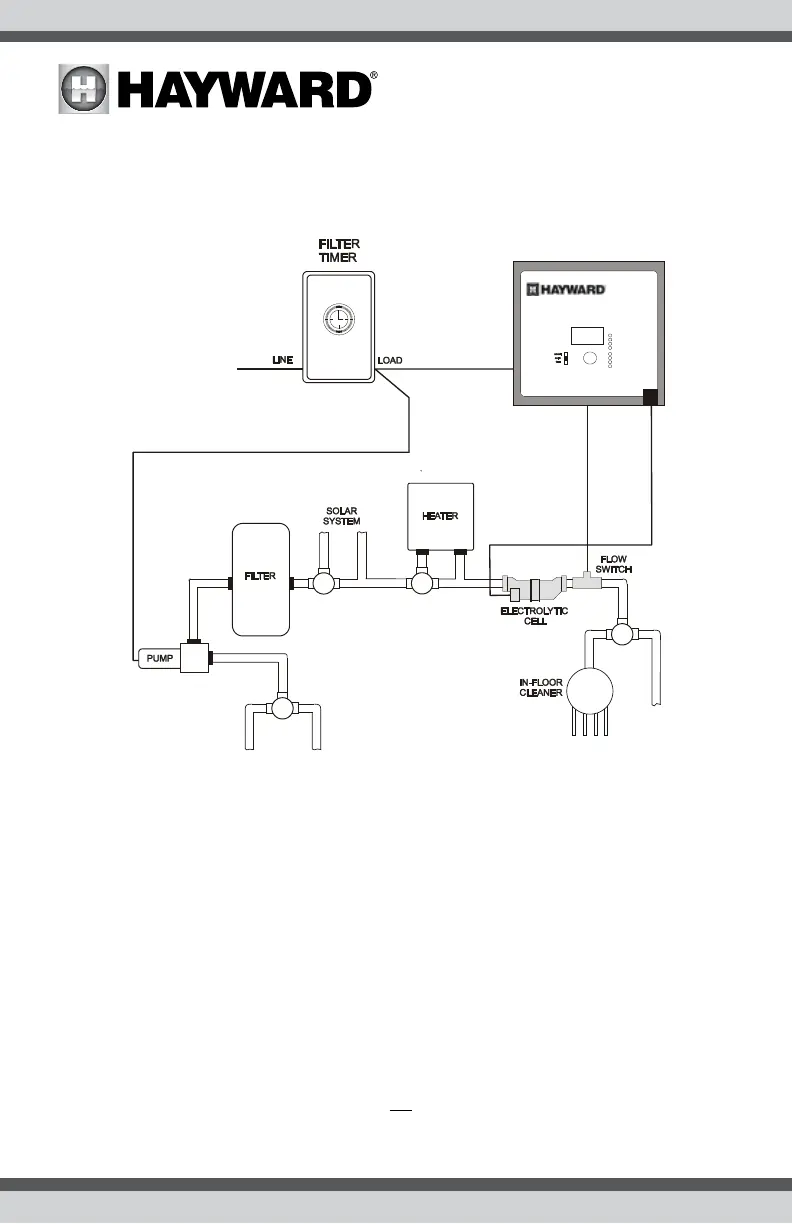

FROM
POOL
120/240 VAC
POWER
TO
POOL
FROM
SPA
TO
SPA
LDLINE
CONTROLS INC.
G
AQUA
RITE
Swimpure Plus
11
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
