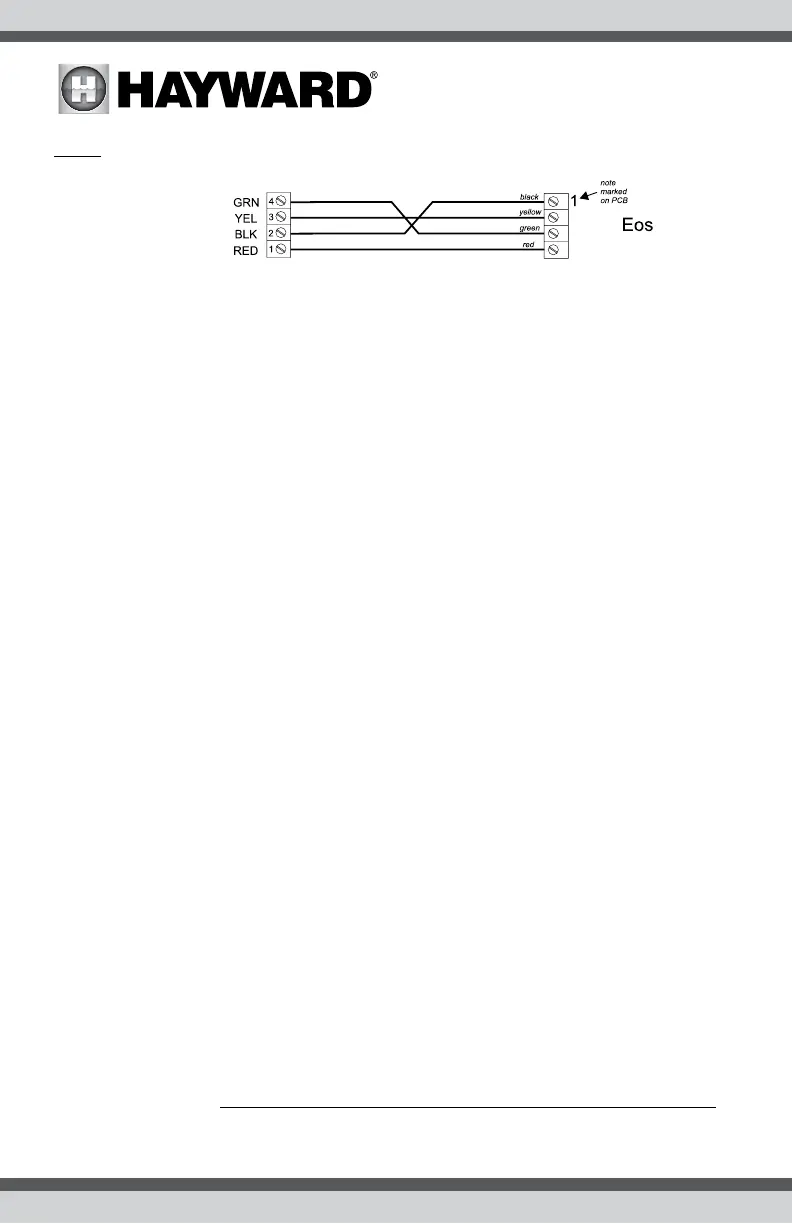

Polaris - Attach wires to proper screw terminals as shown below. Note that screw terminal "1" is
marked on the Polaris PCB.
Troubleshooting
Visit www.hayward.com for helpful information on operation, maintenance and troubleshooting your
SwimPure Plus Electronic Chlorine Generator.
Diagnostic Displays
Sequential pushes of the small "diagnostic" button next to the LCD display will cause the SwimPure
Plus
to display the following information:
1. Pool temperature (xx degrees Fahrenheit or Celsius)
2. Cell voltage (xx.x volts)
3. Cell current (x.xx amps)
4. Desired Output % ("0P" -- "100P" depending on knob position or input from remote pool
automation controller)
5. Instant salinity ( -xxxx ppm or -x.xx grams/Liter)
6. Product name sent to the pool automation control display ("AL-0" which signifies "SwimPure
Plus")
7. Software revision level (r1.xx)
8. Chlorinator cell type (t-3, t-5, t-9, t-15)
On the 9th push of the button the display will revert back to the default salt display. Also, if the
button is not pushed for 30 seconds, the display will revert back to the standard salt display.
Common Problems and Solutions
1. "Power" LED not on
Check to make sure either 120VAC or 240VAC input power is connected to the proper screw ter-
minals at the SwimPure Plus control. Verify input voltage with a voltmeter. If there is input power,
the fuse may have blown. The SwimPure Plus is protected by a 20 amp mini ATO fuse located on
the circuit board above the cell connector.
2. "Generating" LED flashing
The temperature of the pool water is too high or low to operate. You can override this by switching
the main switch to SUPER CHLORINATE. The SwimPure Plus will run at maximum output for the
remainder of the current pump cycle or 24 hours, whichever comes first.
3. "No Flow" LED illuminated
The SwimPure Plus has sensed a no flow condition and has stopped generating chlorine. Check
that the flow switch is plugged into the connector on the bottom of the control unit and that the wire
is not cut or damaged. Make sure you have at least 12" of straight pipe before the flow switch. If
there is adequate flow and the LED is still on, check that the arrows on the flow switch (on top of
hex) are pointing in the direction of flow.
Swimpure
Plus
15
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
