Hayward SwimPure Plus W3SWP15 User Manual

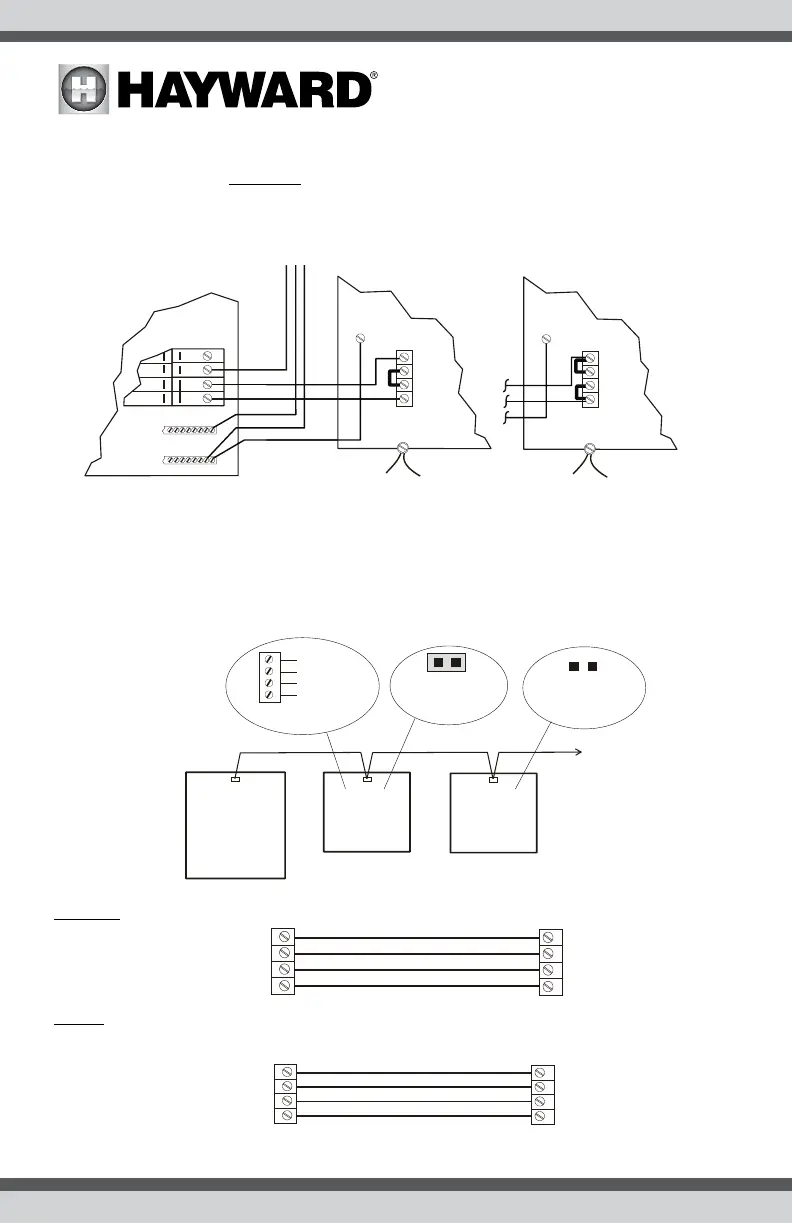

Input power for use with Hayward, Pentair and Polaris controls
Wire the SwimPure Plus DIRECTLY to 120/240VAC power (not through timer or relay).
Optional Hayward, Pentair and Polaris controls:
The Hayward, Pentair and Polaris controls use a 4 wire connection to communicate to the SwimPure
Plus and can be wired up to 500' apart. Any outdoor rated 4 conductor cable can be used. Refer
to each manufacturer's instructions and the wiring diagrams below for proper wiring connection
to the SwimPure Plus. NOTE: There must be only 1 "primary" unit. All other SwimPure Plus units
must be configured as "secondary".
Hayward - Attach wires to proper screw terminals as shown below.
Pentair - Attach wires to opposite numbered screw terminals as shown below. Note that the colors
marked on the Pentair PCB do not match the SwimPure Plus.
4
1
3
2
2
3
1
4
GRN
GRN / -DT
BLK
BLK / GND
YEL
YEL / +DT
RED
RED / +15
SwimPure
Plus
Intellitouch
marking on PCB
green
yellow
black
red
(Colors Do Not Match)
4
4
3
3
2
2
1
1
GRN
GRN
BLK
BLK
YEL
YEL
RED
RED
SwimPure
Plus
Pro Logic
green
yellow
black
red
Hayward, Pentair
or Polaris
Power Center
SwimPure Plus
(Primary)
SwimPure Plus
(Secondary)
Additional
SwimPure Plus(es)
(if required)
Jumper Removed
For Secondary(s)
Jumper Installed
For Primary
(Factory Default)
1
2
3
4
GREEN
YELLOW
BLACK
RED
SUBPANEL
SWIMPURE PLUS
(240 VAC)
SWIMPURE PLUS
(120 VAC)
HAYWARD
PENTAIR
or
POLARIS
PCB
PCB
BONDING
LOOP
BONDING
LOOP
GROUND
NEUTRAL
GND
GND
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
14
