Flow switch connector
Bonding lug to
pool bonding system
Cutout for
cell cable
Wiring
Power must be shut off at the circuit breaker before performing any wiring. Be sure to follow
Local and NEC electrical codes. To provide safe operation, the SwimPure Plus must be properly
grounded and bonded.
Input Power For stand alone operation:
Wire the SwimPure Plus to the LOAD SIDE of the filter pump timer. It is very important that the
SwimPure Plus is powered only when the pump is running.

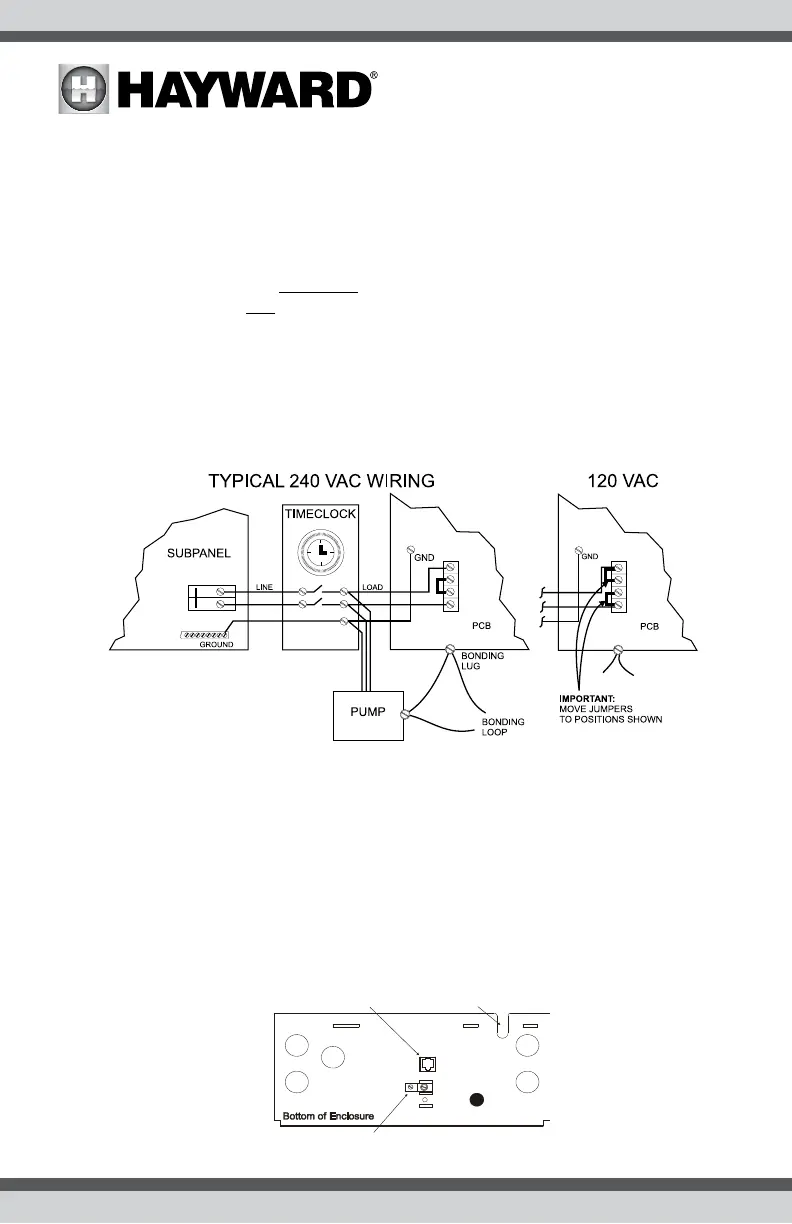

Refer to the wiring label on the SwimPure Plus as well as the diagram below to determine correct
wiring connections. The SwimPure Plus is shipped from the factory with the configuration jumpers
in 240VAC position. If using 120VAC, move the jumpers as shown below. For Canadian models,
the SwimPure Plus shall be connected to a circuit protected by a class A ground fault interrupter.
Be sure to connect the ground wire to the green ground screw terminal located on the bottom of
the enclosure.
Bonding: A lug used for bonding is attached to the bottom of the SwimPure Plus enclosure (see
diagram below). The SwimPure Plus must be bonded with an 8 AWG copper wire (6 AWG Canada)
to the pool bonding system.
Electrolytic Cell and Flow Switch: The electrolytic cell and flow switch cables are terminated
with connectors which plug into the SwimPure Plus, for easy attachment and removal. The door
of the SwimPure Plus must be open to access the cell cable connector. The flow switch plugs into
a connector (similar to a telephone jack) located outside, on the bottom of the enclosure. Refer to
the diagram below for the location of these connections.
Note: Wire the pump directly to the timeclock -- do not use the Swimpure Plus as a junction box.
SwimPure Plus
SwimPure Plus
13
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
