Plumbing
Ensure that the SwimPure Plus installation does not constitute a cross connection with the local
potable water supply. Consult local plumbing codes.
The SwimPure Plus is packaged with a Turbo cell, flow switch and cell unions. Refer to page 2 for
information about available SwimPure Plus models.
The flow switch and cell should be plumbed in the return line to the pool/spa. The preferred instal-
lation is after (downstream) all the pool equipment (filter, heater, solar, etc.). The electrolytic cell
and flow switch tee fitting are designed to be plumbed into 2" (51mm) PVC pipe. Adapters (not
included) can be used for systems with 1½" (38 mm) plumbing.

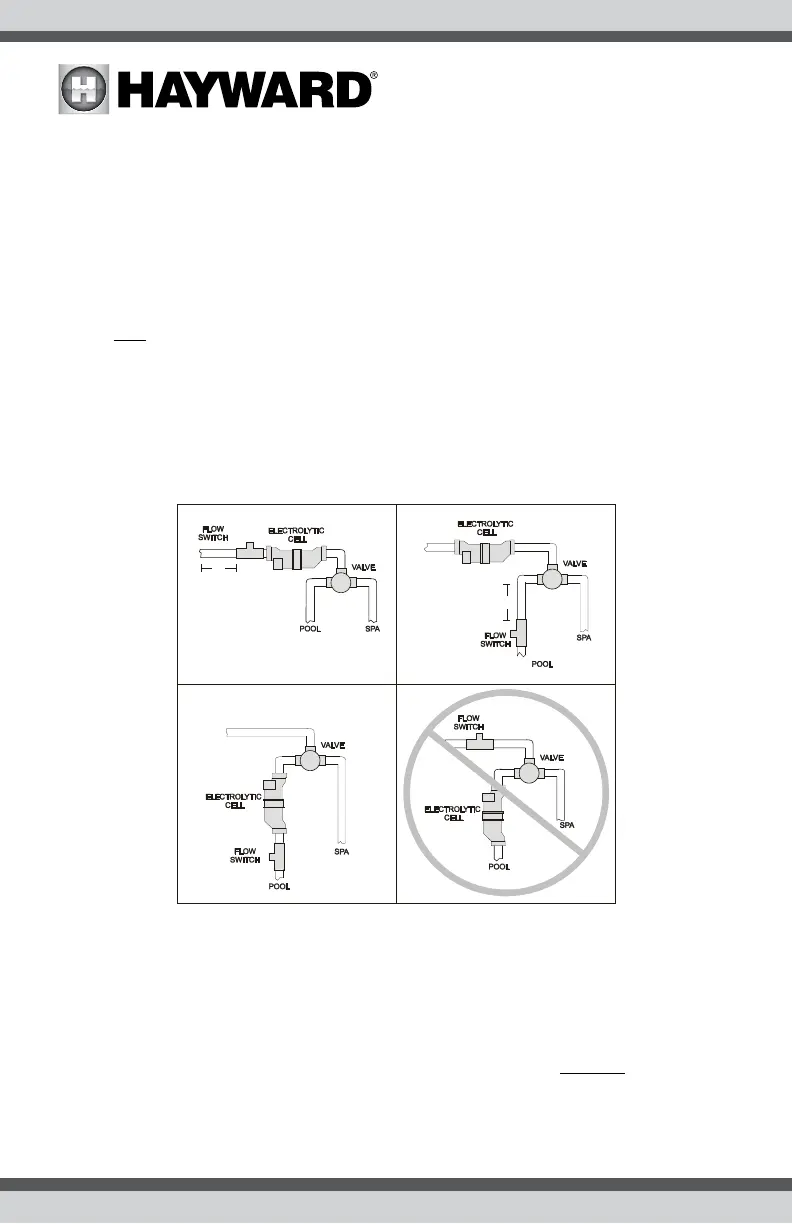

For proper plumbing, refer to the overview diagram on page 11. Below, alternate configuration #1
shows the flow switch can also be in front of the cell. Configurations #2 and #3 allow for chlorina-
tion of both the pool and spa during spa spillover operation, but prevent overchlorination of the spa
during "spa only" operation. Never use configuration #4.
Flow Switch: IMPORTANT: There must be at least a 12" (25cm) straight pipe run before
(upstream) the flow switch. If the switch is plumbed after the cell, the cell can
by counted as the 12" (25cm) of straight pipe. To ensure proper operation,
verify that the arrow on the flow switch (located on top of gray hex) points in
the direction of water flow.
Electrolytic Cell: Install using the unions provided. Tighten unions BY HAND for a watertight
seal. For pool/spa combination systems with spillover, use configurations #2
or #3 above to allow chlorination of both the pool and spa during spillover
but preventing overchlorination when operating the spa only.
2
3
4
1
12”
12”
min
min
Flow Switch
before Cell
Flow Switch
after Cell
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
12
