10. Replacement Parts

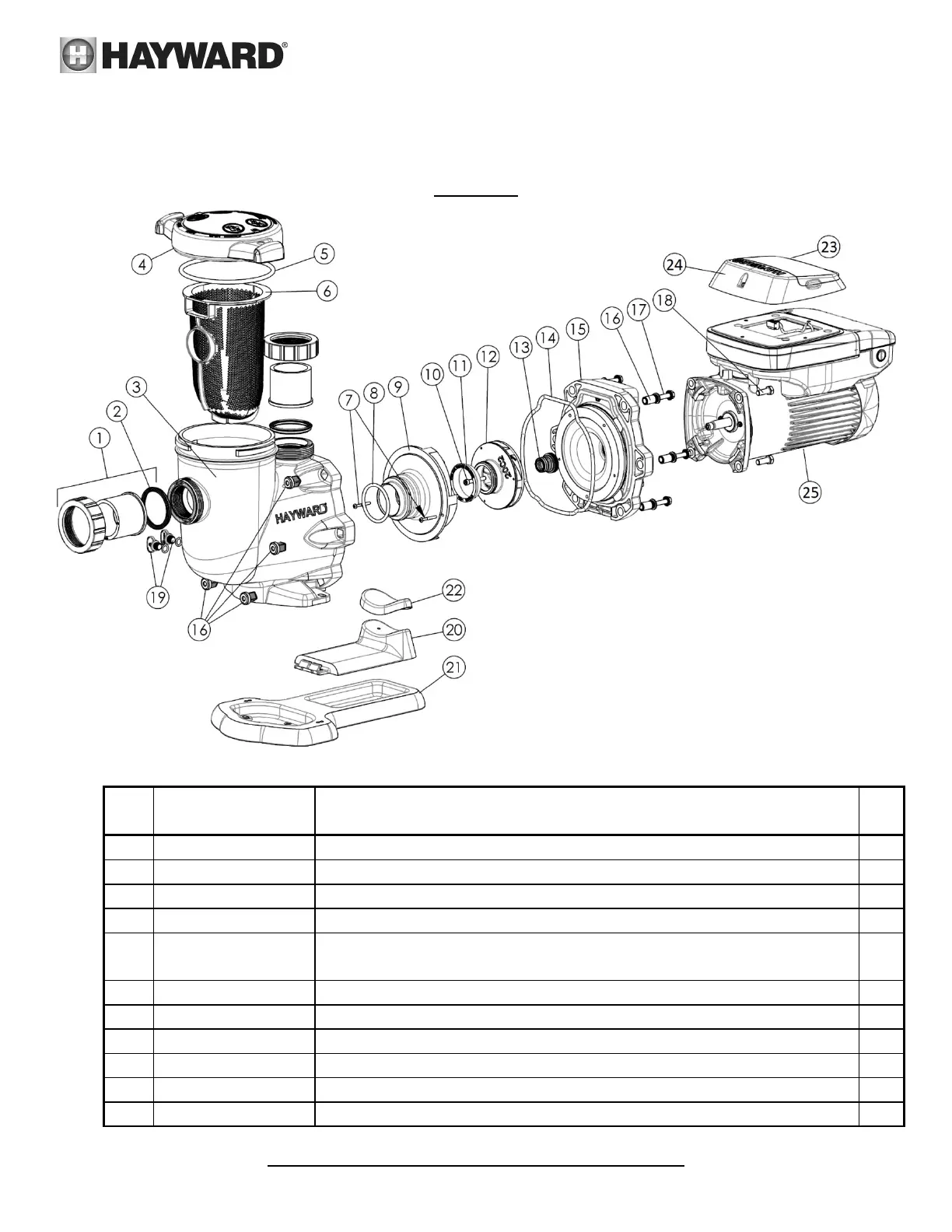

10.1. Parts Diagram
Figure 10.1-1
10.2. Parts Listing
Ref.
No.
Part No. Description Qty.
1 SPX3200UNKIT Union Connector Kit (Includes 2 Nuts, Connectors & Gaskets
)
1
2 SPX3200UG Union Gasket 1
3 SPX3200A Pump Strainer Housing, 2” x 2 1/2” with Drain Plugs 1
4A SPX3200DLS Strainer Cover Kit (Includes Strainer Cover, Lock Ring & O-Ring) 1
4B SPX3200DLSB Strainer Cover Kit for Biguanide Sanitizers (Includes Strainer Cover, Lock Ring
& O-Ring); NOT Pressure Testable
1
5 SPX3200S Strainer Cover O-Ring 1
6 SPX3200M Strainer Basket 1
7 SPX3200Z8 Diffuser Screw 1
8 SPX4000Z1 Diffuser O-Ring 1
9 SPX3200B3 Diffuser 1
10 SPX3200Z1 Impeller Screw 1
