RTN/M2
MOUNTING PREPARATION
5 plates max. for
height adjustment
5 plates max. for height adjustment
Upper module plate
Lateral stops
Cross‐bracket
(Anti‐liftoff device)
Air gap: 1 mm
Bearing
Dummy

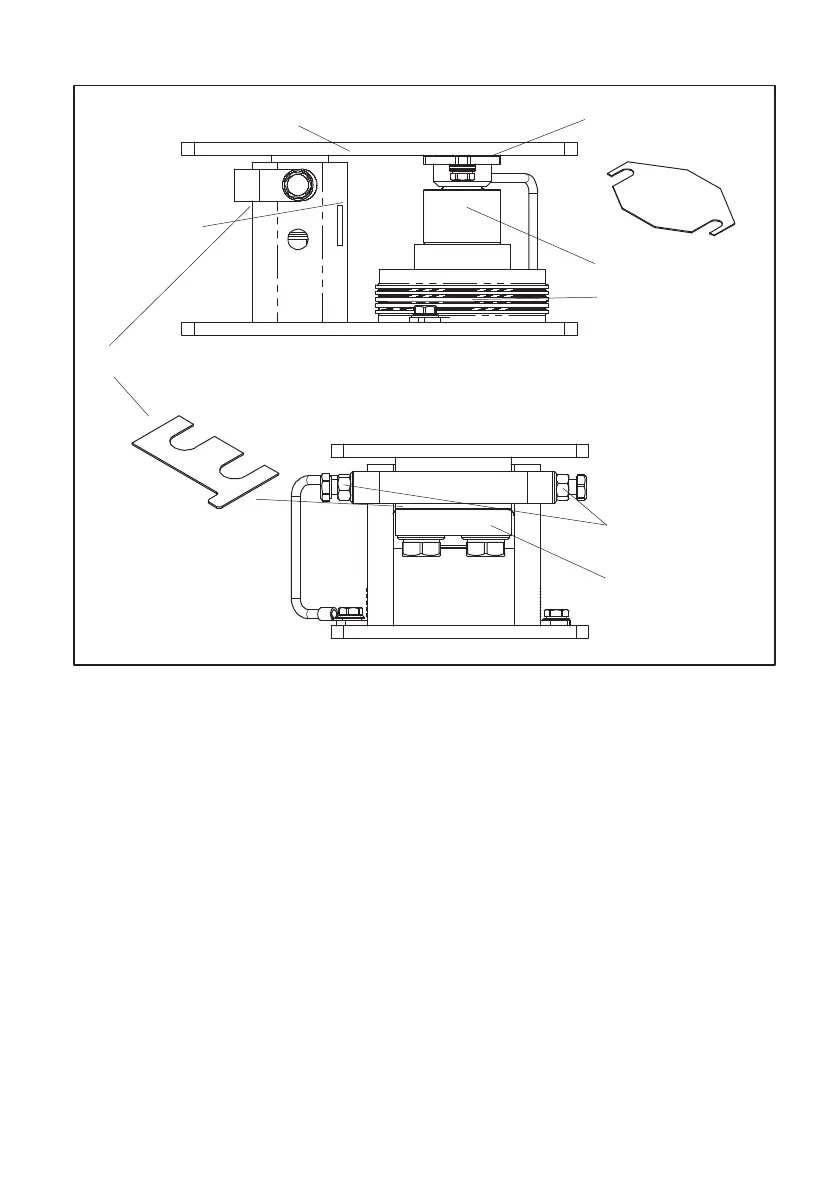

Fig. 4.2 Fitting of the spacer plates with 10 t ... 33 t version
