RTN/M2

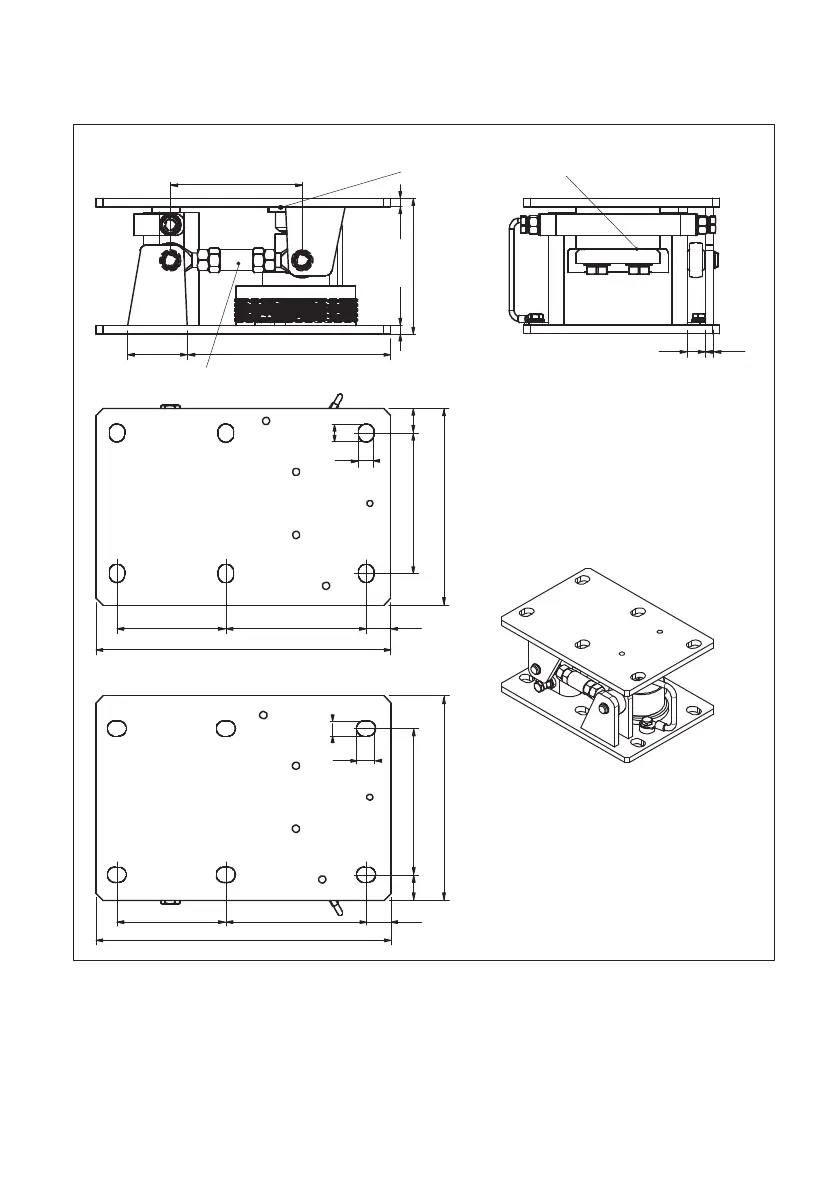

DIMENSIONS
RTN/M2LA - Version with rubber‐metal bearing
View from above
View from below
Max. capacity 33 t
Perspective view
85
188
12 12
193
290
max. 5 spacer plates
only version with stay rod
1226
(192 - 197 by
spacer plates)
420
200155
200 280
35
420
200155
200 280
35
22
26
26
22
35
35
Dimensions in mm
(1mm = 0.03937 inches)
