Additional features:
D Use as 1, 2 or 3-range scale
D Disabling/enabling of menu functions
D Filter selection
D Max. capacity adjustment, partial load adjustment
D Zero on start-up
D Automatic zero tracking
D Weighing range linearization
D Different print functions
D Numerous monitoring and error detection functions
3 Mechanical construction and scope of supply
3.1 Scope of supply

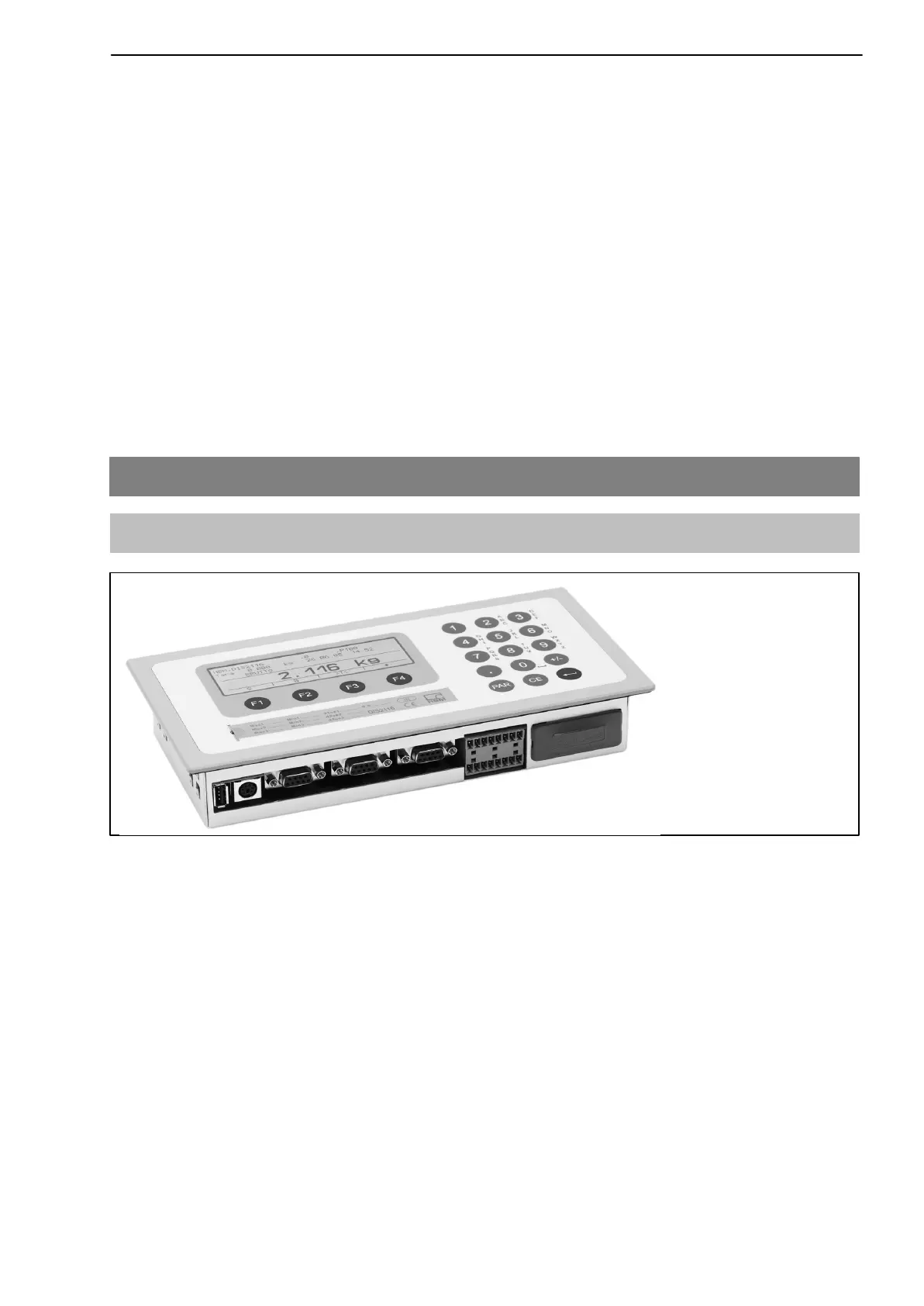

Fig. 3.1: DIS2116 view
• DIS2116 scale electronics in aluminum housing for panel mounting
• Adhesive label for closing and sealing the opening for the calibration push-
button and labeling strips
• 8 labeling strips for creating the scale type plate
• Two 8-pin mating connectors (Phoenix Mini-Combicon mating connector
8 pin Type: MC1.5/8-ST-3.81)
• Two connector housing with strain relief (Phoenix Mini-Combicon connector
housing 8 pin Type: KGG-MC 1.5/9)
