SYSTEM SPECIFICATIONS
Note: 0 dBu = 0.775 V rms
*Specifications and features subject to change without notice.
Aux Input
Input Configuration/Impedance: Stereo, unbalanced, 10 Kohms typical
Input Level: +4 dBu optimal, +22 dBu max
Head Phone Power
Load Impedance: THD less than 0.01%* THD less than 0.1%
8 Ohms: 150 mW* 230 mW
*THD AT 8 Ohms = 0.015% typical
16 Ohms: 235 mW 500 mW
25 Ohms: 675 mW 775 mW
32 Ohms: 950 mW 1.1 W
50 Ohms: 1.6 W 1.8 W
100 Ohms: 1.14 W 1.25 W
200 Ohms: 500 mW 650 mW
600 Ohms: 215 mW 220 mW
Inter Modulation Distortion: Typically less than 0.03%
Line Out
Freq Response: 20 Hz to 20 KHz, +0.04 dB, -0.55 dB
THD+N: 0.008% typical at 1 KHz, +15 dBu,
0.02% typical, 20 Hz – 20 KHz, +4 dBu
Inter Modulation Distortion: 0.02% typical at +4 dBu, 60 Hz/7 KHz
Crosstalk: Better than -85 dB @ 1 KHz
Propagation Delay: Less than 1.5 mSec
Noise Performance
Noise, A-Weighted: -91 dBu analog, -97 dBu optical
Dynamic Range: 112 dB typical
System I/O
Hub Line In, Analog: 8 Balanced inputs on DB-25 female (Tascam DA-88 pinout)
Maximum Input Level, Analog: +15 dBu
Hub Light Pipe In: Industry standard fiber optic connector, shuttered
Hub HearBus In, Out: 8-pin RJ45 jack (2 each)
Mixer Headphone Out: TRS 1/4" unbalanced stereo (2 each)
Mixer LIne Out: TRS 1/4" balanced (2 each)
Maximum Output Level, Analog: +24 dBu (mixed output)
Aux Input: TRS 1/8" unbalanced stereo
Physical, Mixer
Size: 11.5" (29.2 cm) H x 5.2" (13.2 cm) W x 3.6" (9.15 cm) D
Unit Weight: 1.2 lb. (0.54 kg)
Mounting: Standard mic stand or desk mounted
Physical, Hub
Size: 1.75" H x 19" W x 7.125" D
Unit Weight: 5.0 lb.
Mounting: Standard rack mount, 1 RU
Power
Requirements: 100-230VAC, 50/60HZ, 100 Watts

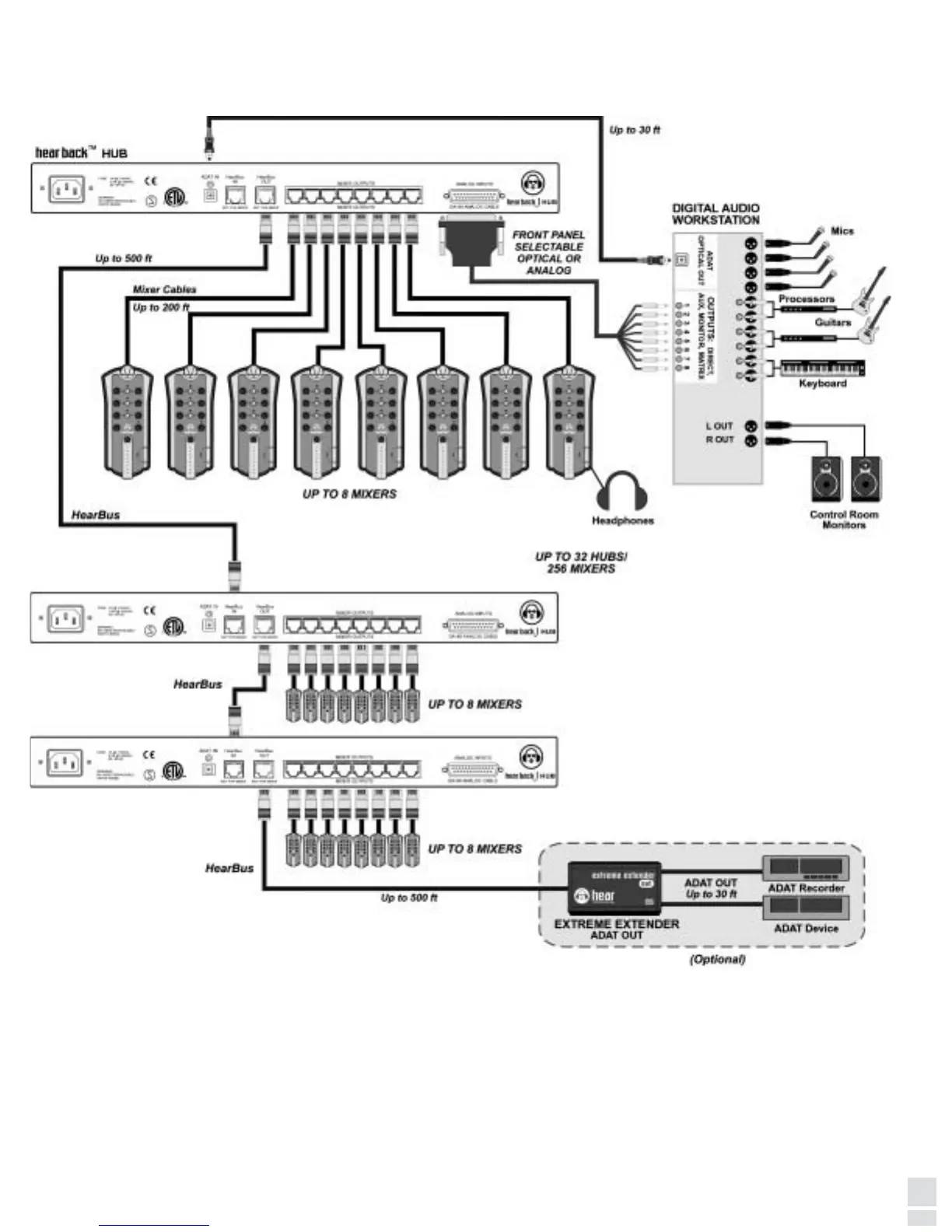

HOOK-UP DIAGRAM DIGITAL AUDIO WORKSTATION
