HEART HR4136-B1 - Rectangular Antenna Transmission Area

HR4136-B1
HEART TECH ENTERPRISE CO., LTD. BEST SERVICE FROM HEART
11
 Rectangular antenna
 Tag : TEXAS INSTRUMENTS 32mm Glass Transponder part number RI-TRP-DR2B

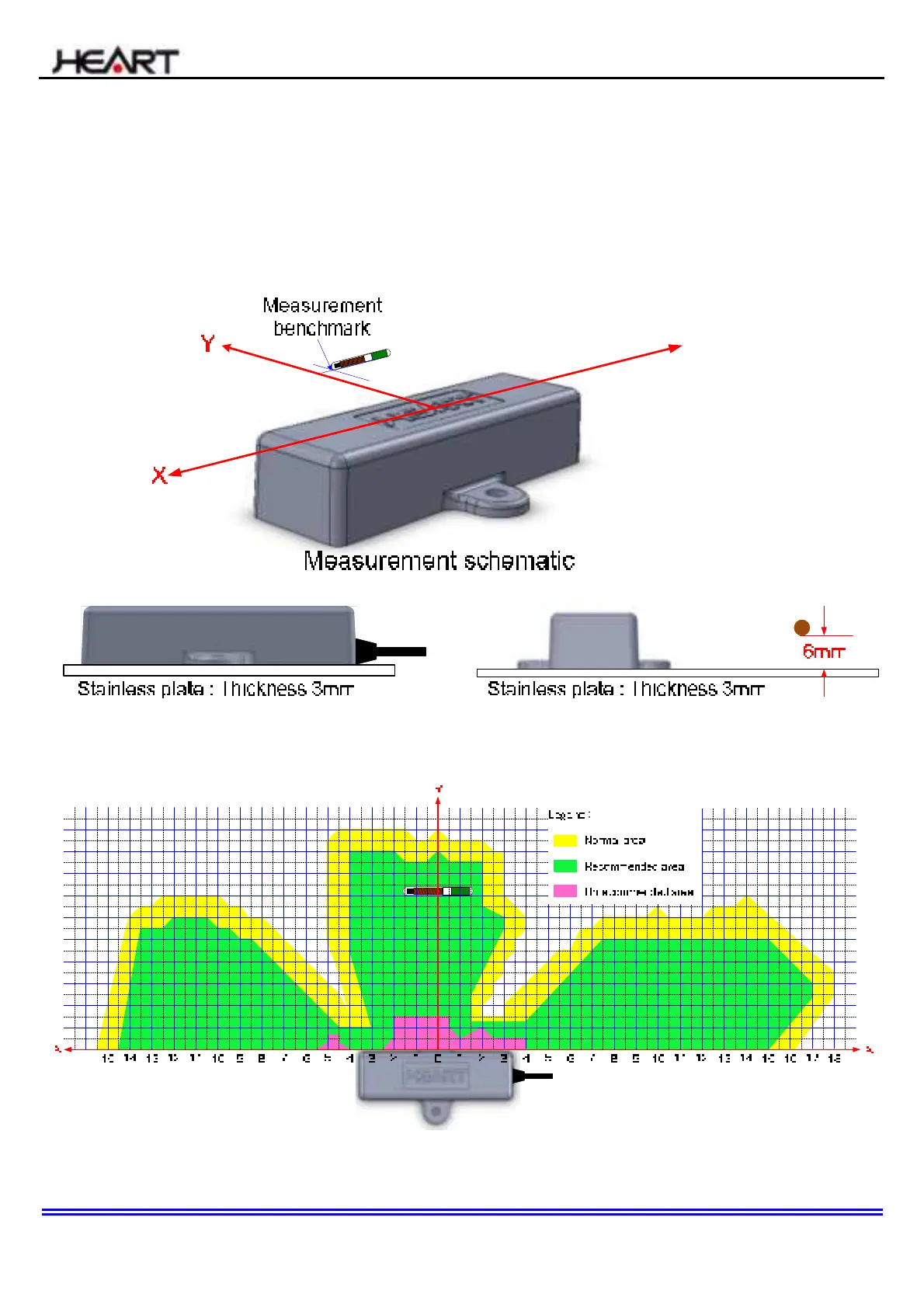

The transmission area diagram going through the center of the antenna and indicated on a flat surface
vertical to the antenna surface is as indicated below.
