VER1.0B1 HeartCheck HANDHELD ECG MONITOR
- 13 -
4.2.3 Cable Measurement
If palm measurement is not ideal and it is not convenient to adopt the chest
measurement, the cable measurement is recommended. 1. Place the electrode patches
on the appropriate body areas as depicted in Picture 4-4. Connect the cables to the
patches with the matching colour ends. 2. Connect the leads to the device through the
lead port.

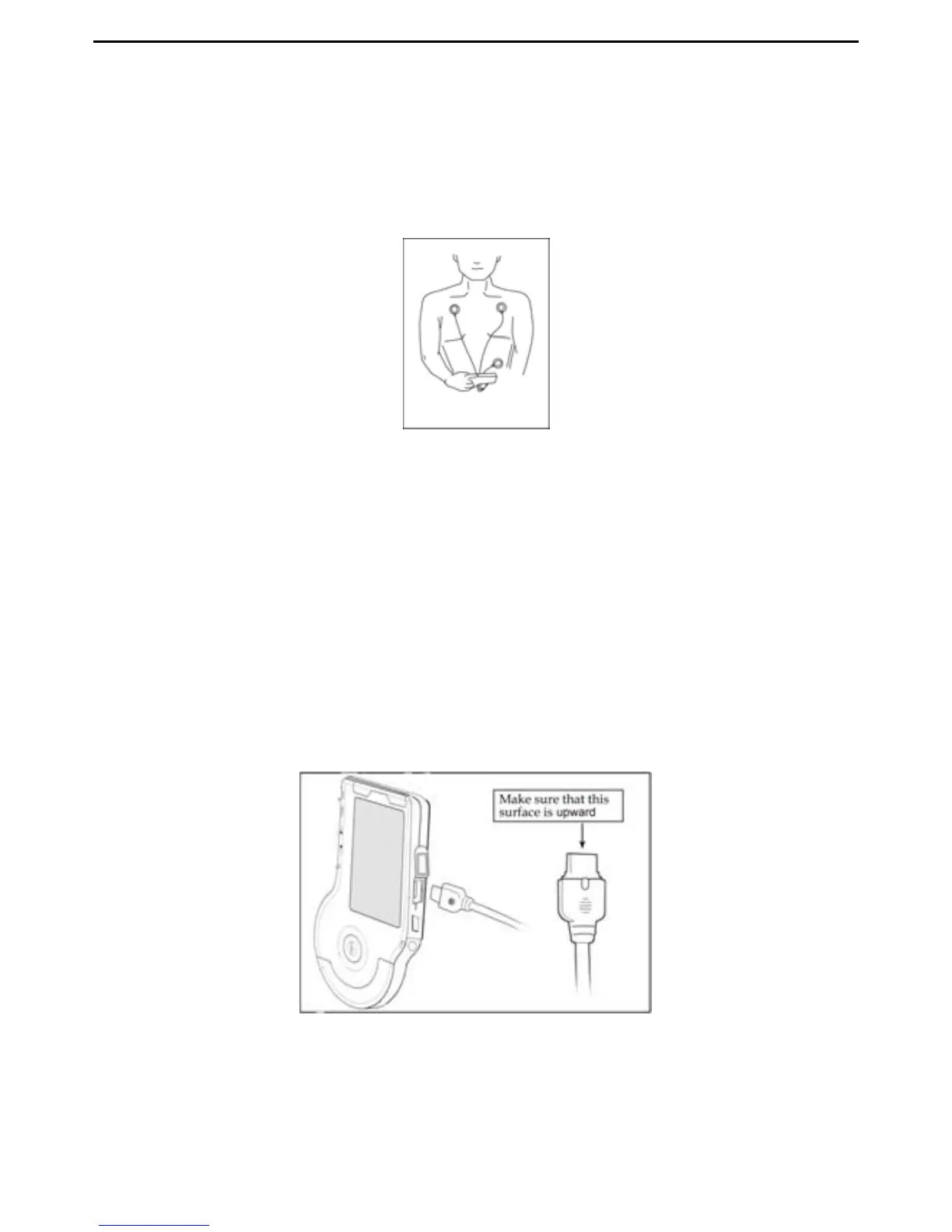

Picture 4-4
(1) The position for placing the cable electrodes is shown in Picture 4-4.
White （right arm RA）electrode — under the clavicle next to the right shoulder.
Black （left arm LA）electrode —under the clavicle next to the left shoulder.
Red （left leg LL）electrode —at the left of the underbelly.
Note： Ensure the electrode patches are placed in the correct positions and are
well attached before pressing the “START” button.
(2) Connecting the device using the ECG lead cable. (Refer to picture 4-5).
Picture 4-5
Make sure the ECG cable connector is inserted fully into the device.
If the measurement has failed, please check the placement of electrode patches
