VER1.0B1 HeartCheck HANDHELD ECG MONITOR
- 15 -

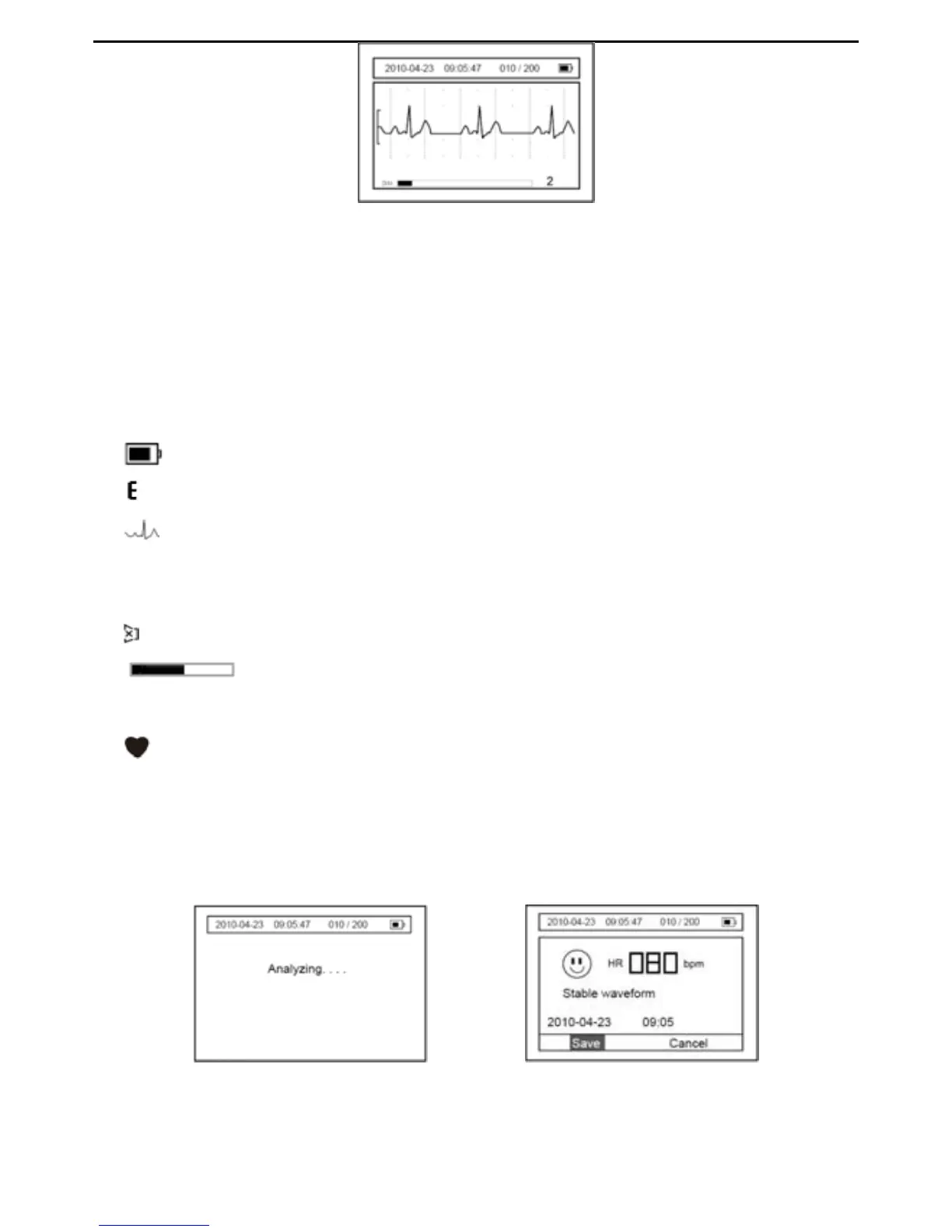

Picture 4-9
Description of Picture 4-9:
“2010-04-23”: The current date.
“09:05:47”: The current time.
“010/200”: Indicates that ten measurement results have been saved in the
device and the device may store up to a maximum of 200 records.
: Indication of the power level of the battery.
: ECG amplitude ruler.
: The examined ECG waveform.
×1: ECG waveform scale. You can select the displaying scale (x 0.5, x 1,
x 1.5 or x 2) in the "SET Menu”.
: Speaker status – On or Off.
: The status bar showing measurement progress.
2: Indication of measurement time.
: The sign of heartbeat, it flashes on and off synchronously with the
heart beat.
A measurement result message is displayed when the measurement has been
completed (Refer to Picture
4-10 &4-11 for details).
Picture 4-10 Picture 4-11
