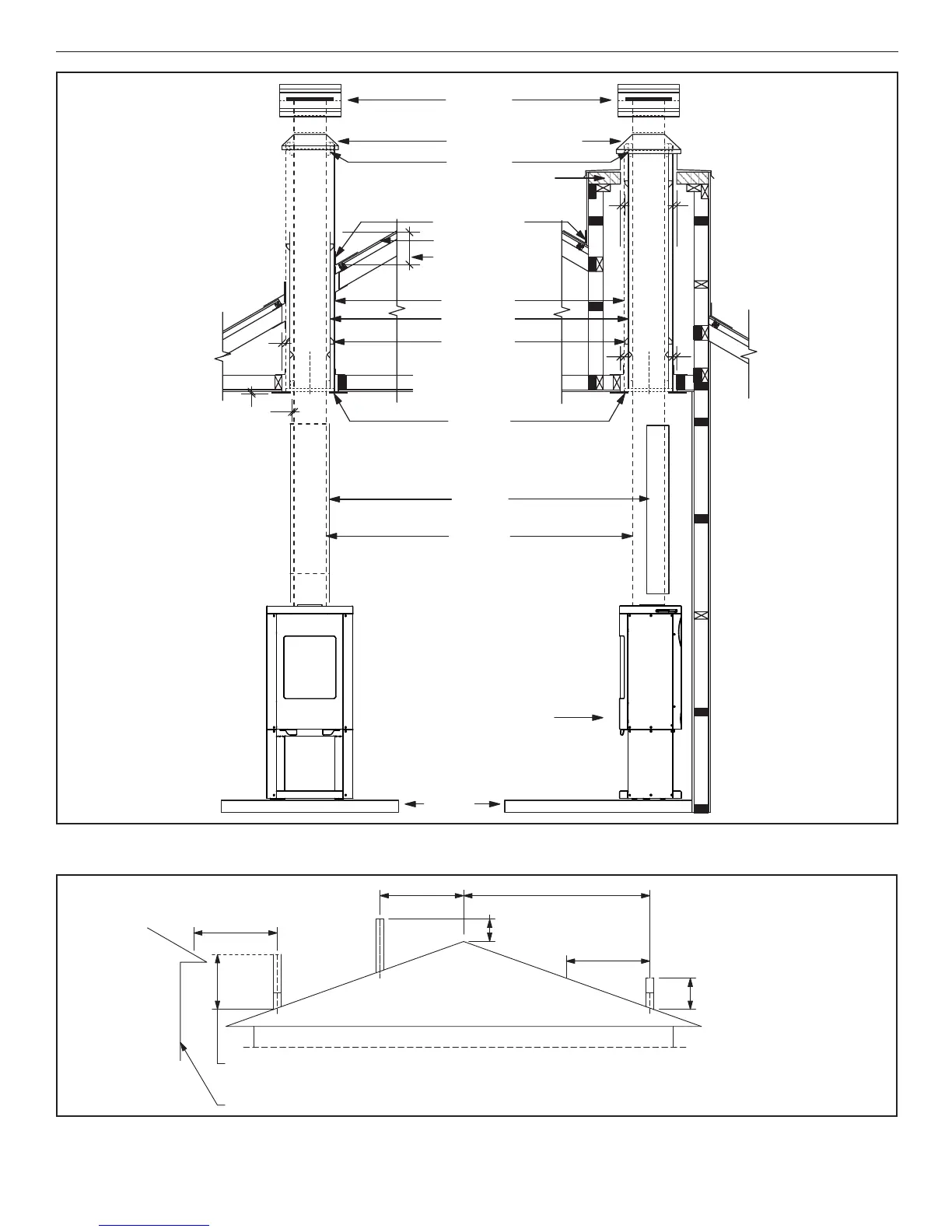

16 Heat & Glo • 7076-250C 7/11/2014
Curve 100
Drawing not to scale
12
Fig. 5
ADD Cowl
Casing Cover
Spider Bracket
oversized casing cover
is necessary
minimum 25mm gap
between flue pipe casing &
combustible material
Non combustible material
Hebel block or 12mm
Promina board or similar
under the flashing
25 25
Approved Flashing
Roof Line
Inner Casing 200mm
above roof line
Outer Casing
Inner Casing
25
Internal Swage
25 25
12.5
V
ented
C
eiling Plate
Pioneer
Double Flue
Shield
Flue Pipe
C
L
C
L
Heat & Glo Curve 100
Floor
Protector
Fig. 16.1
FLUE PENETRATION
3000
3000
or
less
More than
3000
600
min.
3000
increase as
necessary
until nothing
within
3000mm of flue
top
Any nearby
structure
increase from 1000mm
minimum until clear within
3000mm of flue top
Fig. 16.2
MINIMUM HEIGHT OF FLUE SYSTEM EXIT
