Heat & Glo CURVE 100 - Floor Protector; Hearth Requirements

8 Heat & Glo • 7076-250C 7/11/2014
Curve 100
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue
Shield Fitted
A Min. Clearance from back of unit to rear wall 125
B Min. clearance from center of spigot to rear wall 298
C Min. distance from front of base to fl oor protector front 300
D Min. fl oor protector front width 500
E Min. distance from rear wall to front of fl oor protector 789
F Min. distance from unit side to side wall 225
G Min. clearance from center of spigot to side wall 479
B. Floor Protector
Heat & Glo Curve 100 does not require a insulating Floor
Protector, as they are tested and comply with the minimum
Floor Protector requirements of AS/NZS 2918:2001.
Note:
▪ The minimum Floor Protector sizes are specifi ed in the
clearance chart, see Table 1 & 2.
▪ A Floor Protector can include ceramic tiles with grouted
joints fi xed directly onto a wooden fl oor or a sheet of tough-
ened glass, panel steel or any other non combustible mate-
rial laid directly onto a wooden fl oor.
NOTE: HEAT SHIELD REQUIREMENTS FOR HEAT SENSITIVE WALLS
Clearances may be reduced by provision of an appropriately located heat shield refer to AS/NZS 2198:2001 3.2.3
TABLE 3.1
Table 1
C. Hearth Requirements
FLOOR PROTECTOR
B
C
D
F
E
A
G
REAR WALL
SIDE WALL
REAR WALL
▪ If installed directly onto a concrete slab, the concrete slab
can be considered as the fl oor protector,but must maintain
the minimum measurement listed.

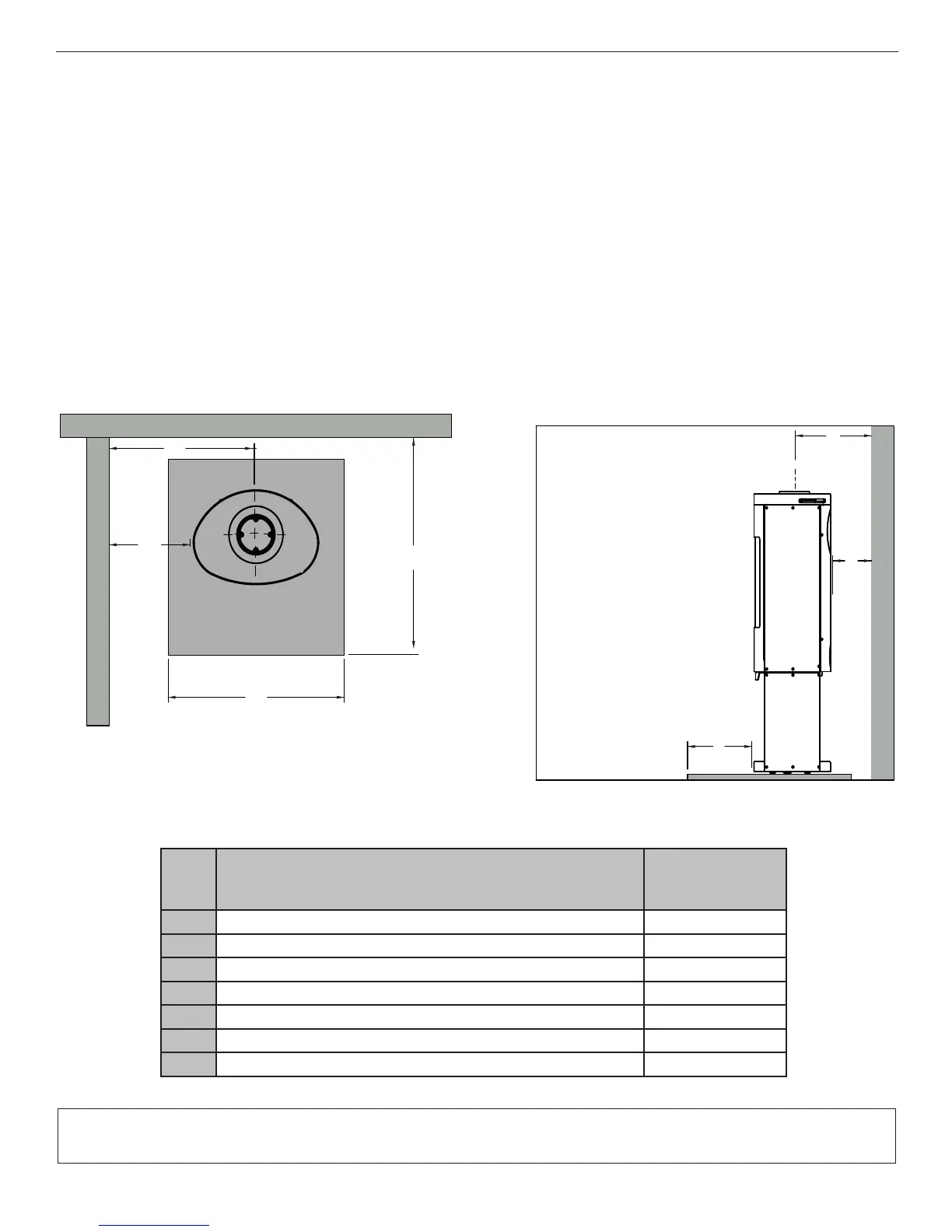

Fig. 8.1
PARALLEL POSITIONING
