Heat Controller, Inc. Room Air Conditioner with R-410A Owner’s Manual
6
TO CHANGE TEMPERATURE SETTING:
The fan speed button is used to select the Fan Speed
in four steps: Auto, Low, Med or High. Each time the
button is pressed, the fan speed mode is shifted.
When the unit is operating in Dry mode, the fan speed
is automatically controlled at Low fan speed.
Press or hold either Temp/Timer Up ( ) or Down
( ) button until the desired temperature is seen on
the display. This temperature will be automatically
maintained anywhere between 62°F (17°C) and 86°F
(30°C). If you want the display to read the actual room
temperature, see to “Operate on Fan Only” section.

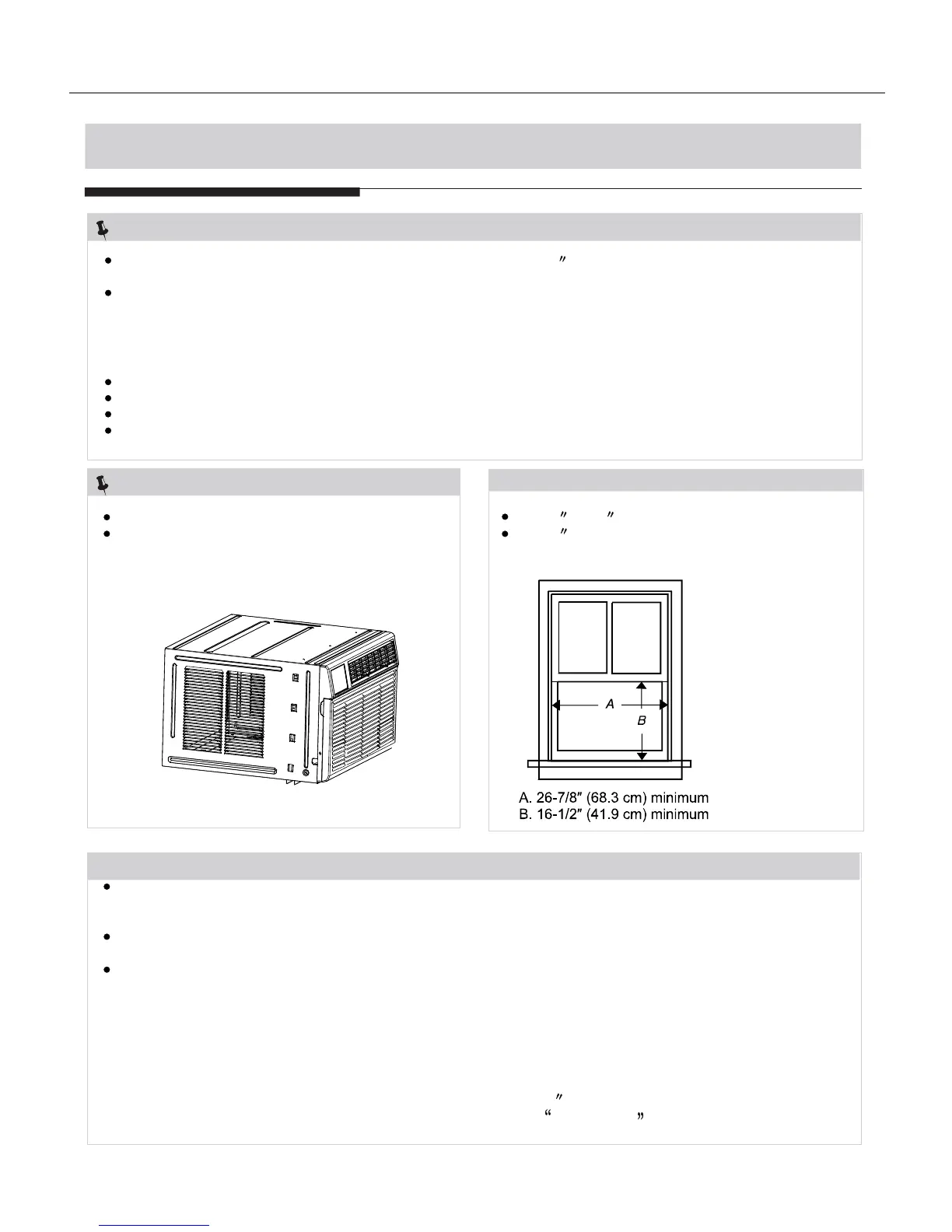

INSTALLATION INSTRUCTIONS
Location Requirements:
IMPORTANT:Observe all governing codes and ordinances. Check the location where air conditioner
will be installed.Proper installation is your responsibility. Make sure you have everything necessary
for correct installation.
Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner.
Free movement of air in room to be cooled.
A large enough opening for the air conditioner.
Adequate wall support for weight of air conditioner. Air conditioner weights between 70 and 85 Ibs
(32 to 40 kgs).
Do not use an extension cord.
Cabinet louvers must not be obstructed. Air must
be able to pass freely through the cabinet louvers.
(FIG.1)
FIG.2
Remove and dispose of / recycle packaging materials. Remove tape and glue residue from surfaces
before installing the air conditioner. Rub a small amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the surface of your air conditioner.
Handle the air conditioner gently.
1. Remove the air conditioner from the carton and place it on cardboard.
2. Remove 1 shipping screw from each side of the cabinet (FIG.3).
3. Remove front panel by removing 1 Phillips screw from each side of the front panel. Set screws a
side and save (FIG.4).
4. Pull on the handles to slide the air conditioner out of the cabinet. Place the air conditioner on
cardboard (FIG.5).
NOTE:
Installation parts are supplied for double-hung windows up to 36 (91.4 cm) wide. A special Wide
Window Kit is available from your dealer or service center. See Accessories .
Do not use any screws other than those specified here.
Installation parts are supplied for double-hung windows up to 36 (91.4 cm) wide. A special Wide
Window Kit is available from your dealer or service center. See Accessories .
Do not use any screws other than those specified here.
Remove packaging material:
NOTE:
NOTE:
Window Installation:
Window opening measurements (FIG.2) :
