3
598-1303-01

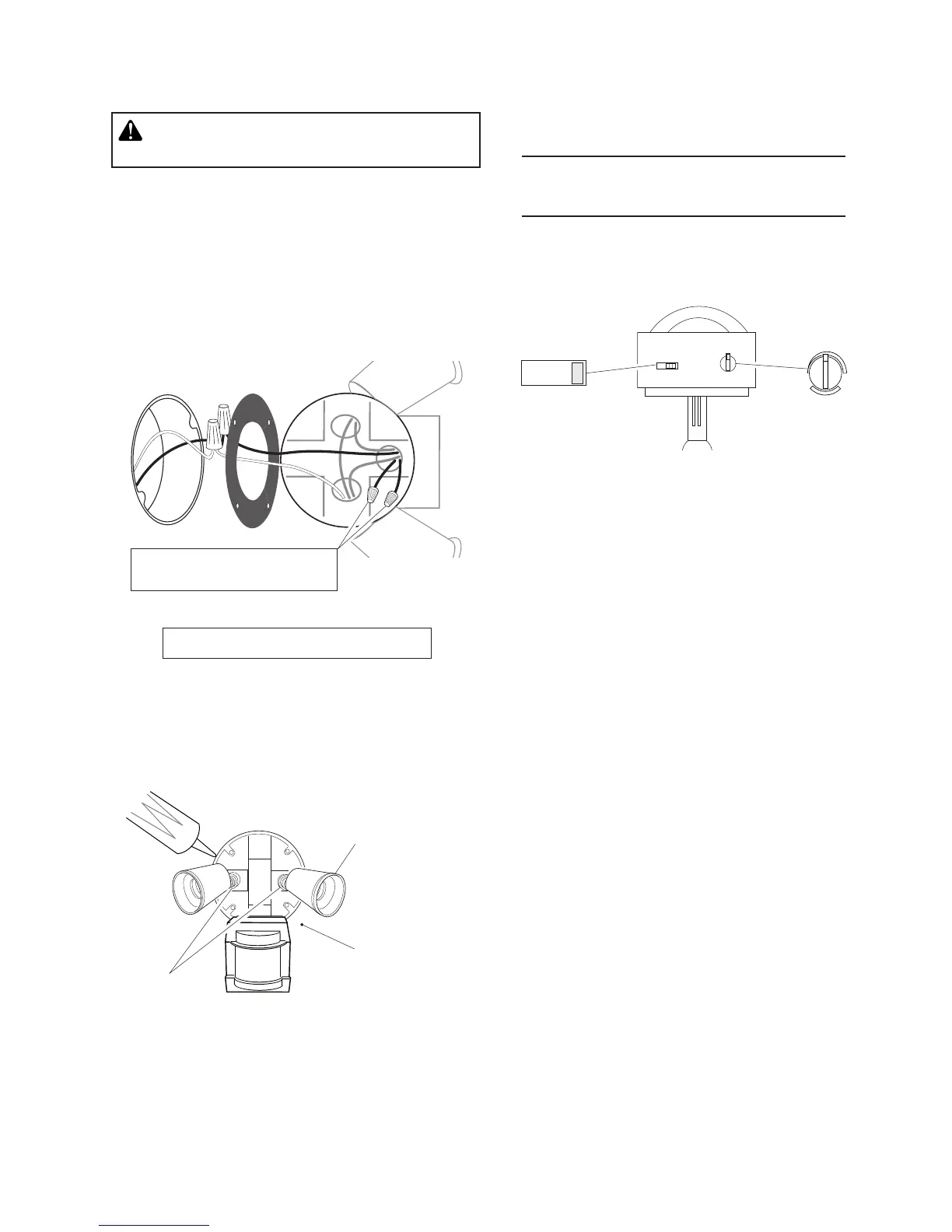

❒ Align the light control cover plate and the junction
box holes. Secure with the mounting screws.
❒ If not installed on a weatherproof box or if an adaptor
plate (not included) was used, caulk the wall plate
and mounting surface with silicone.
❒ Adjust the lamp holders by loosening the lock nuts
but do not rotate the lamp holders more than 180°
from the factory setting. When screwing in the flood-
lamps, do not overtighten.
Keep lamps at
least 1" (25 mm)
from the sensor.
Avoid water damage and
electrical shock - keep lamp
holders below horizontal.
Lock nuts
Mount the Light ControL
To Deactivate the Flash Alert
❒ Remove the light fixture if necessary.
❒ Locate the (Blue) wire loop coming from the sensor
inside the canopy.
❒ Cut the (Blue) wire loop.
❒ Securely attach wire nuts (supplied) to each of the
cut ends of the (Blue) wire. DO NOT connect the
wires together.
❒ Mount light control to wall or eave.
WARNING: Turn power off at circuit breaker
or fuse.
Bottom of Sensor
ON-TIME
10 5 1 TEST
MIN MAX
SENS
TEST AND ADJUSTMENT
NOTE: Sensor has a 1
1
/
2
minute warm up period
before it will detect motion. When first turned
on, wait 1
1
/
2
minutes.
❒ Turn on the circuit breaker and light switch.
❒ Turn the SENSITIVITY (SENS) control to the mid posi-
tion and the ON-TIME control to the TEST position.
Flash Alert - Deactivated
(Blue)
